| ₹ 2565.17 includes GST and import duties. | |
| B2B customers can avail ₹ 391.19 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

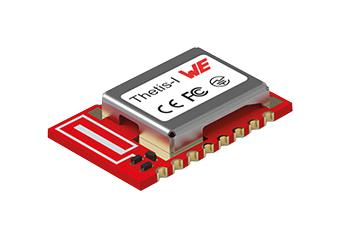

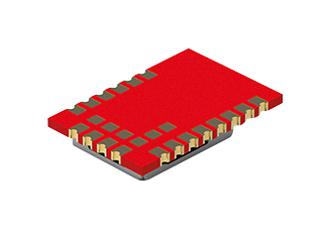

This is a 2611011021010 RF Transceiver , 2.402 GHz to 2.48 GHz, 1 Mbps, 6 dBm Output Power, -40 °C to 85 °C, 1.8 V to 3.6 V product from WURTH ELEKTRONIK with the model number 2611011021010
Product details
| Data Rate | 1Mbps |
| RF / IF Modulation | - |
| Frequency Min | 2.402GHz |
| Frequency Max | 2.48GHz |
| Receiving Current | 7.7mA |
| RF IC Case Style | - |
| No. of Pins | 18Pins |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 3.6V |
| Transmitting Current | 18.9mA |
| Output Power (dBm) | 6dBm |
| Sensitivity dBm | -92dBm |
| RF Transceiver Applications | 2.4GHz ISM Band Systems, Wireless Industrial Systems, Wireless Sensor Networks |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 2611011021010 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2513.87 |
| 3-5 | ₹ 2488.21 |
| 5-10 | ₹ 2436.91 |
| 10+ | ₹ 2385.61 |
Bulk discount will be automatically applied during checkout based on quantity.
