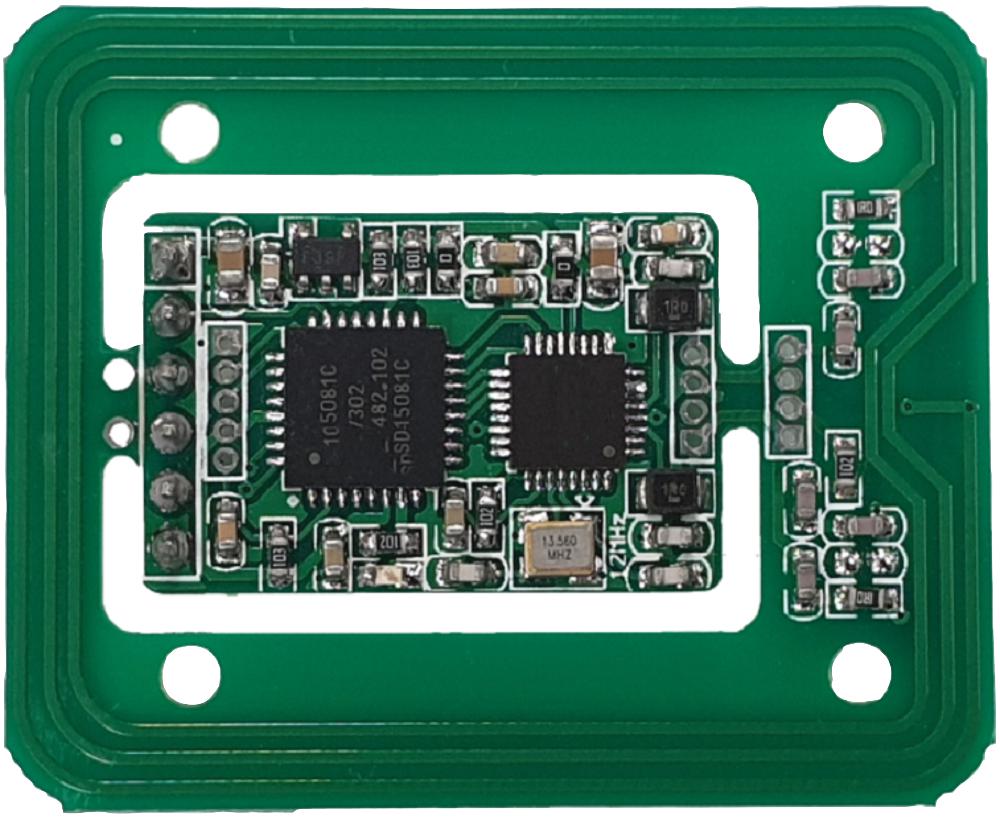

A Compact RFID reader module for use in general purpose RFID applications. Whenever the compatible RFID tag is brought within range the module will output a TTL serial data stream with the tag data. The module can be used standalone, or the antenna section can be removed and deployed remotely whilst connected to the module via cable. The module is compatible with all known ISO4443A compatible cards and Tags and provides a simple plug in solution to passive tag interface.
- Suitable for asset / stock tagging, access control, payment systems, managing resources, identification control etc....
- 13.56MHz reader module
- ISO/IEC 14443 Type A
- Break Out antenna included
- Cards/Tags Supported: Mifare one (S50, S70, RC632 / ntag203 / ntag213 etc.)
- Read range up to 100mm
- Supply +3.3V DC @100mA
- TTL Data output
- Baud rate 9600bps
- Communications speed: 106Kbit/s
- Operating Temperature: 0 to 80°C
Other details
| Brand |
RF SOLUTIONS |
| Part Number |
RFID1-13RTTL-3V |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
