Description
AEA Ribbon Mics N8 Overview
- 1Description
- 2Far-Field Ribbon
- 3Works Up Close
- 4Active Electronics
- 5Ready for the Road
- 6Features at a Glance
Basic Tips for Recording Audio for Video | Audio for Video, Part 1Choosing a Mic for Video Production | Audio for Video, Part 2How to Get Great Audio Levels | Audio for Video, Part 3Recording Sound to Your Camera vs. an Audio Recorder | Audio for Video, Part 4

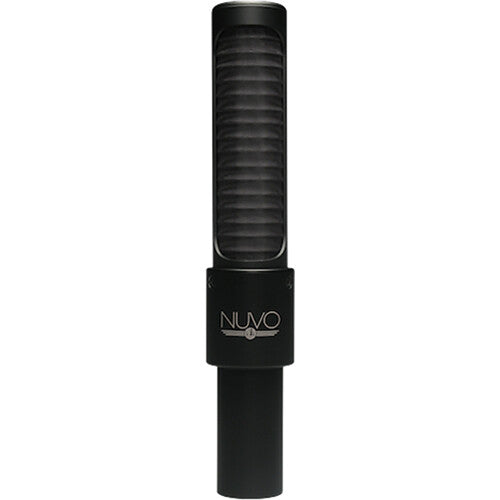

Offering the open and natural sound of a traditional side-address, large-ribbon mic in a compact and lightweight form factor designed for far-field use, the AEA Ribbon Mics NUVO N8 active ribbon microphone is ideal when positioned 1 to 20' away from the source, be it group vocals, acoustic instruments, ensembles, or drums, in the studio or on the stage. The inclusion of a custom transformer helps the NUVO N8 achieve a strong output level while retaining low-noise performance.
As a far-field ribbon, the NUVO N8 provides full low- and high-end tone when capturing sources in the context of a room. Plus, it boasts the widest frequency range of any AEA mic. The NUVO N8's figure-8 polar pattern exhibits the classic pickup traits and side-rejection qualities associated with ribbon mics. A standard XLR 3-pin male connector is on the mic for hookup to virtually any microphone preamp; 48V phantom power is required to power the mic's active electronics.
Far-Field Ribbon
The N8 captures a space as it sounds live and in person, with all the present subtlety and nuance. Its expansive frequency response and balanced low-end make it superbly effective when capturing the full breadth of sound from the back of a room, above a drum set, or overhead a string section.
It is designed to be positioned at an ideal distance of 12 inches or farther from the source of sound. This far-field design allows for a wide range of options when positioning the N8 to best capture an instrument within the context of a room.
From as far away as 20 feet away, the N8 retains the low-end frequencies of the sources it captures, and its open, natural tonality makes it perfect to record an entire orchestra or the full low-end of a drum kit from overhead.
It is designed to be positioned at an ideal distance of 12 inches or farther from the source of sound. This far-field design allows for a wide range of options when positioning the N8 to best capture an instrument within the context of a room.
From as far away as 20 feet away, the N8 retains the low-end frequencies of the sources it captures, and its open, natural tonality makes it perfect to record an entire orchestra or the full low-end of a drum kit from overhead.
Works Up Close
The proximity effect of the N8 is present when recording a source from closer than 12 inches, so this feature can be used to accentuate the low-end of a vocal or string instrument. Potential damage from loud sources is of no concern, even at such a short distance, as the N8 can handle 141+ dB SPL at 1 kHz.
If less proximity effect is desired when recording at close range, the near-field AEA N22 is an effective ribbon mic to complement the N8's far-field performance.
If less proximity effect is desired when recording at close range, the near-field AEA N22 is an effective ribbon mic to complement the N8's far-field performance.
Active Electronics
The N8 uses the same custom transformer utilized in the AEA A440 and R84A microphones, enabling an additional 12 dB of output and a stable impedance. Though it still sounds great with any AEA ribbon-optimized preamp, it is not dependent on a high-impedance, high-gain preamp for proper use.
The extra output is a major advantage when recording quiet sources like vocals and soft acoustic guitars. The active circuitry also prevents noise, interference on long cable runs and when near operating near large lighting rigs.
The extra output is a major advantage when recording quiet sources like vocals and soft acoustic guitars. The active circuitry also prevents noise, interference on long cable runs and when near operating near large lighting rigs.
Ready for the Road
With increased durability and a small profile, it's no wonder that a wide range of performers use AEA's NUVO series microphones on the road. The mics are totally rugged and hold up to daily wear and tear.
From outdoor gigs at music festivals to indoor theaters, NUVO mics are the perfect companion to bring the sound of studio recordings to the live stage. With the optional NUVO windscreen, never worry about the ribbon, even at windy gigs.
From outdoor gigs at music festivals to indoor theaters, NUVO mics are the perfect companion to bring the sound of studio recordings to the live stage. With the optional NUVO windscreen, never worry about the ribbon, even at windy gigs.
Features at a Glance
- Open and natural sound
- Far-field ribbon mic that retains lows and highs from a distance
- Same design philosophy as the AEA R88 stereo ribbon mic
- Compact, lightweight, and low-profile design
- Features active electronics and custom transformer optimized for all preamps
- Made in the USA
In the Box
- AEA Ribbon Mics NUVO N8 Far-Field Phantom-Powered Ribbon Microphone
- Mic Stand Clip
- Custom Protective Mic Sleeve
- Storage Case
- Limited 1-Year Warranty, Extendable to 3 Years upon Online Registration
Table of Contents
- Description
- Far-Field Ribbon
- Works Up Close
- Active Electronics
- Ready for the Road
- Features at a Glance
AEA Ribbon Mics N8 Specs
Microphone
| Form Factor | Stand/Boom Mount |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Ribbon |
| Diaphragm | 2.35" / 59.69 mm |
| Polar Pattern | Figure-8 |
| Orientation | Side Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | None |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 141 dB SPL (1 kHz, 1% THD) |
| Off-Axis Rejection | 6 dB at 60° 6 dB at 120° 0 dB at 180° |
| Impedance | 92 Ohms |
| Load Impedance | 1000 Ohms |
| Sensitivity | 8.3 mV/Pa at 1 kHz |
Connectivity
| Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Mic) |
Power
| Operating Voltage | 48 V (Phantom Power) |
| Operating Current Consumption | 7 mA (Phantom Power) |
Physical
| Color | Black |
| Mounting | Mic Clip (Included) |
| Dimensions | ø: 1.62 x L: 8.83" / ø: 4.11 x L: 22.43 cm |
| Weight | 12 oz / 340 g |
Packaging Info
| Package Weight | 1.785 lb |
| Box Dimensions (LxWxH) | 10.45 x 8.3 x 3.05" |
