Description
- 2.4 GHz Operating Frequency
- 15 dBi Gain
- For Outdoor Use
- Compatible with Rocket M BaseStations

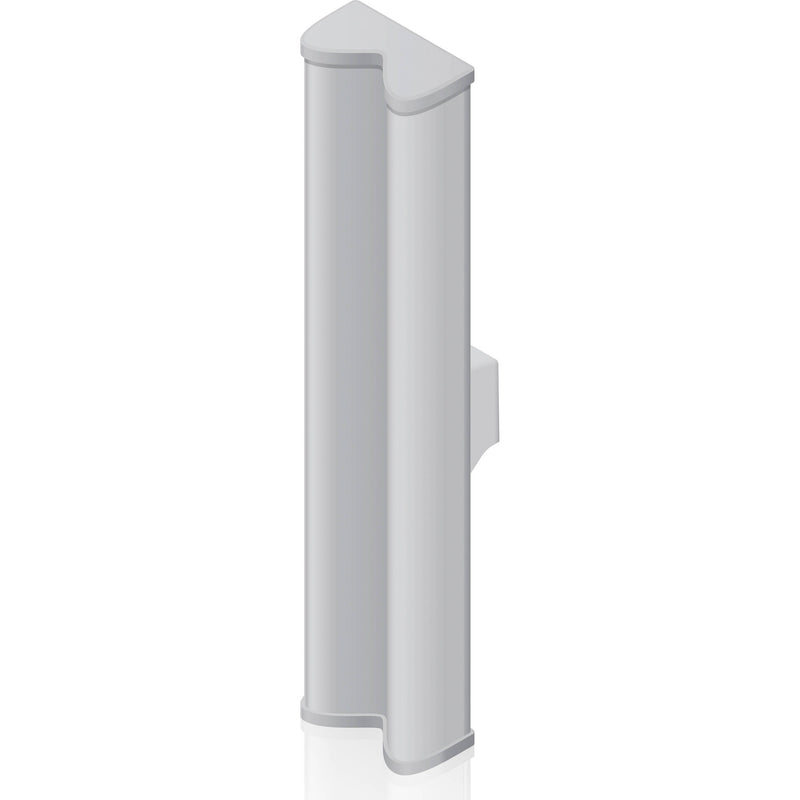

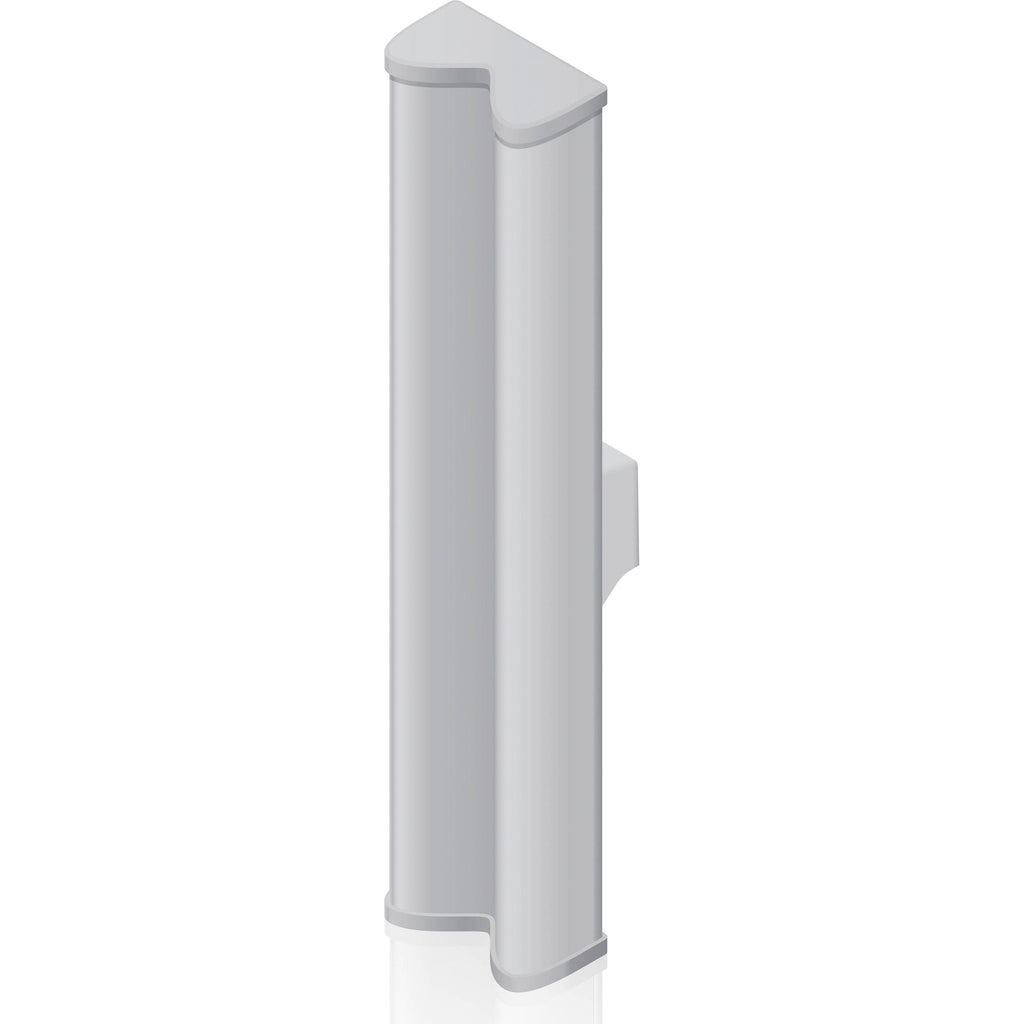

The AM-2G15-120 AirMAX 2.4 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 2.4 GHz frequency and offers a gain of 15 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.
- Seamlessly integrates with RocketM radios
- Remarkable cross-polarization isolation
- Intelligent QoS: Priority is given to voice/video for seamless streaming
Scalability: High capacity and scalability
Long Distance: Capable of high-speed, carrier-class links
- Up to 100 airMAX clients can be connected to an airMAX sector antenna
UPC: 810354020865
| Frequency Range | 2.3 to 2.7 GHz |
| Gain | 15.0 to 16.0 dBi |
| Hpol Beamwidth | 123° (6 dB) |
| Vpol Beamwidth | 118° (6 dB) |
| Beamwidth | Electrical: 9° |
| Electrical Downtilt | 4° |
| VSWR (Voltage Standing Wave Ratio) | 1.5:1 |
| Wind Survivability | 125 mph |
| Wind Loading | 24 lbf @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 27.55 x 5.70 x 3.66" (700 x 145 x 93 mm) |
| Weight | 8.8 lb (4 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 11.1 lb |
| Box Dimensions (LxWxH) | 35.0 x 7.65 x 7.0" |
In the Box
Ubiquiti Networks AM-2G15-120 AirMAX 2.4 GHz 2x2 MIMO Sector Antenna
- Universal Pole Mount
- RocketM Bracket
- Weatherproof RF Jumpers
- Limited 1-Year Warranty
