| ₹ 911.25 includes GST and import duties. | |
| B2B customers can avail ₹ 138.97 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The TMH 2405D is a 2-output 2W board-mount isolated DC to DC Converter that offer the ideal solution in many space critical applications for board level power distribution. The use of SMD-technology makes it possible to offer a product with high performance at low cost.
- Fully SMD design
- 1000VDC I/O Isolation
- High efficiency up to 83%
- Industry standard pinout
- 100% Burn-in (8h)
- -40 to +85°C Operating temperature range
Applications
Power Management
- :
- 2W
- :
- 21.6V
- :
- Through Hole
- :
- -5V
- :
- 200mA
- :
- 19.5mm
- :
- 7.5mm
- :
- TMH Series
- :
- SIP
- :
- -
- :
- -
- :
- 5V
- :
- -
- :
- 2 Output
- :
- Fixed
- :
- 26.4V
- :
- 200mA
- :
- 10.2mm
Product details
| Output Power Max | 2W |
| Input Voltage DC Min | 21.6V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -5V |
| Output Current - Output 2 | 200mA |
| Depth | 19.5mm |
| Width | 7.5mm |
| Product Range | TMH Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 26.4V |
| Output Current - Output 1 | 200mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TMH 2405D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |

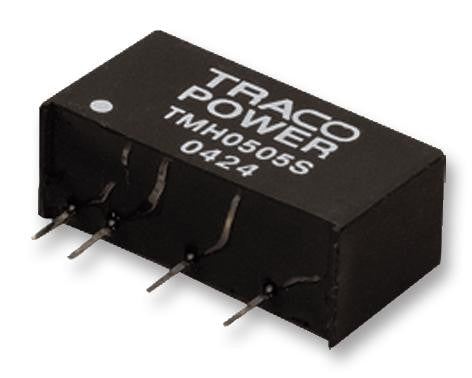

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 893.03 |
| 3-5 | ₹ 883.91 |
| 5-10 | ₹ 865.69 |
| 10+ | ₹ 847.46 |
Bulk discount will be automatically applied during checkout based on quantity.
