Description

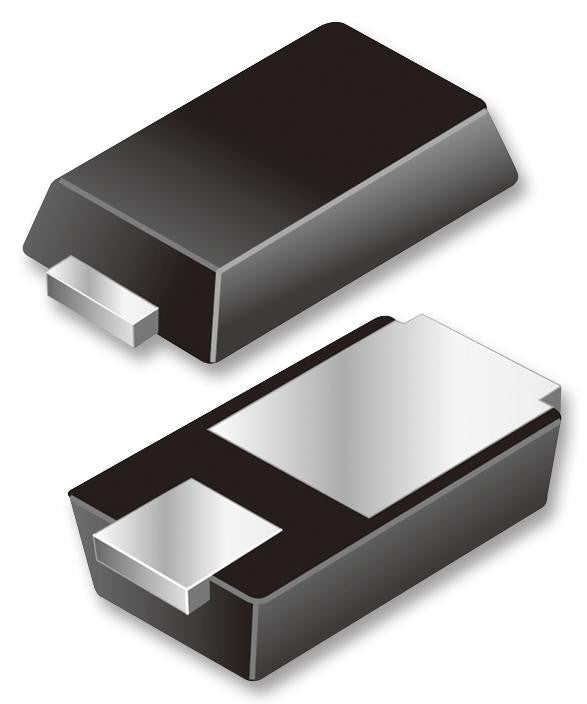

This is a Schottky Rectifier, POWERDI®, 40 V, 1 A, Single, PowerDI 123, 2 Pins, 550 mV product from DIODES INC with the model number DFLS140L-7
Product details
| Repetitive Reverse Voltage Vrrm Max | 40V |
| Forward Current If(AV) | 1A |
| Diode Configuration | Single |
| Diode Case Style | PowerDI 123 |
| No. of Pins | 2Pins |
| Forward Voltage VF Max | 550mV |
| Forward Surge Current Ifsm Max | 50A |
| Operating Temperature Max | 125°C |
| Packaging | Cut Tape |
| Product Range | DFLS1 Series |
| Automotive Qualification Standard | - |
Other details
| Brand | DIODES INC |
| Part Number | DFLS140L-7 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
