Description

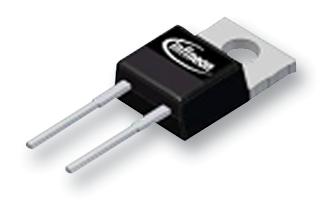

This is a Silicon Carbide Schottky Diode, CoolSiC 6G 650V Series, Single, 650 V, 12 A, 6.9 nC, TO-220 product from INFINEON with the model number IDH04G65C6XKSA1
Product details
| Product Range | CoolSiC 6G 650V Series |
| Diode Configuration | Single |
| Repetitive Reverse Voltage Vrrm Max | 650V |
| Continuous Forward Current If | 12A |
| Total Capacitive Charge Qc | 6.9nC |
| Diode Case Style | TO-220 |
| No. of Pins | 2 Pin |
| Junction Temperature Tj Max | 175°C |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
Other details
| Brand | INFINEON |
| Part Number | IDH04G65C6XKSA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
