| ₹ 399.78 includes GST and import duties. | |
| B2B customers can avail ₹ 60.97 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

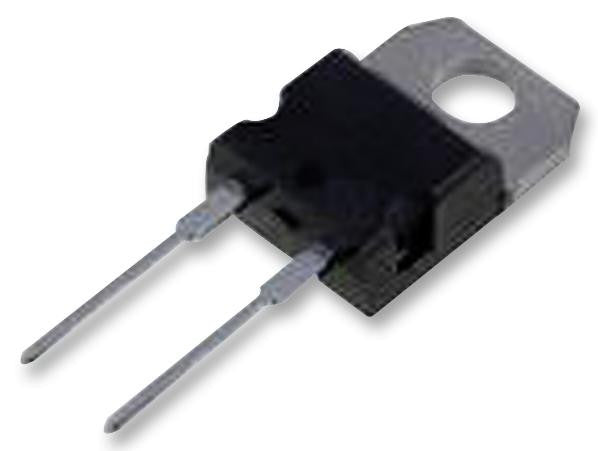

The STPS15L25D is a low drop Power Schottky Rectifier features very low forward voltage drop for less power dissipation and reduced heatsink and optimized conduction/reverse losses trade-off which means the highest efficiency in the applications. This single Schottky rectifier is suitable for high frequency DC to DC converters.
- 9000W Repetitive peak avalanche power
- 1°C/W Junction to case thermal resistance
Applications
Power Management, Industrial
Product details
| Forward Voltage VF Max | 350mV |
| Operating Temperature Max | 150°C |
| No. of Pins | 2Pins |
| Forward Current If(AV) | 15A |
| Product Range | STPS1 Series |
| Automotive Qualification Standard | - |
| Diode Configuration | Single |
| Repetitive Reverse Voltage Vrrm Max | 25V |
| Packaging | Each |
| Diode Case Style | TO-220AC |
| Forward Surge Current Ifsm Max | 250A |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STPS15L25D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 391.78 |
| 3-5 | ₹ 387.79 |
| 5-10 | ₹ 379.79 |
| 10+ | ₹ 371.8 |
Bulk discount will be automatically applied during checkout based on quantity.
