Description

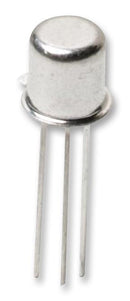

The 2N2222 from Multicomp is a through hole, silicon planar NPN low power bipolar transistors in TO-18 metal can package. This transistor is used for switching, linear DC power supply and VHF amplifier applications.
- Collector emitter voltage (Vce) of 30V
- Continuous collector current (Ic) of 800mA
- Power dissipation of 500mW
- Operating junction temperature range from -65�C to 200�C
- Collector emitter saturation voltage of 1.6V at 500mA collector current
- DC current gain 30 at Ic=500mA
- Collector emitter breakdown voltage 30V
Applications
Signal Processing, Power Management, Portable Devices, Consumer Electronics, Industrial
Product details
| Power Dissipation Pd | 500mW |
| DC Collector Current | 800mA |
| Collector Emitter Voltage V(br)ceo | 30V |
| Transition Frequency ft | - |
| Operating Temperature Max | 200�C |
| Transistor Polarity | NPN |
| DC Current Gain hFE | 100hFE |
| No. of Pins | 3Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Transistor Case Style | TO-18 |
| MSL | - |
Other details
| Brand | MULTICOMP |
| Part Number | 2N2222 |
| Quantity | Each |
| Technical Data Sheet EN |  |
