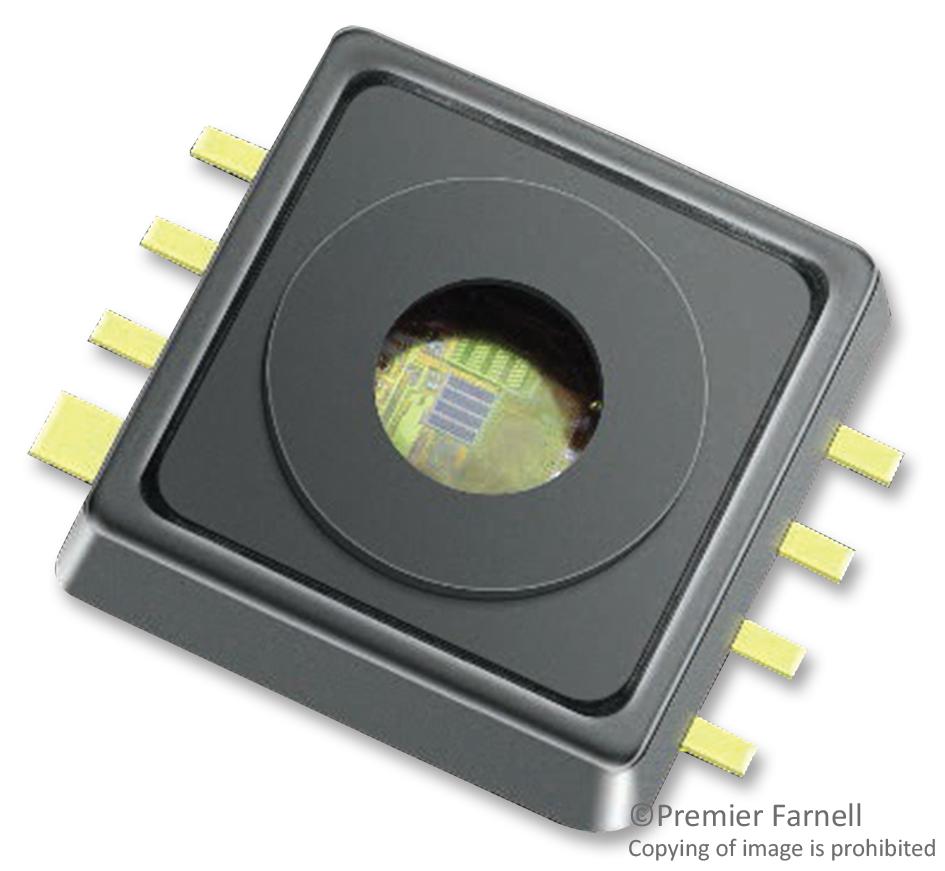

INFINEON KP229E3111XTMA1 Pressure Sensor, Absolute, 15.2 mV/kPa, 20 kPa, 300 kPa, 4.5 V, 5.5 V

This is a Pressure Sensor, Absolute, 15.2 mV/kPa, 20 kPa, 300 kPa, 4.5 V, 5.5 V product from INFINEON with the model number KP229E3111XTMA1

Product details

Pressure Type	Absolute
Sensitivity, V/P	15.2mV/kPa
Operating Pressure Min	20kPa
Operating Pressure Max	300kPa
Supply Voltage Min	4.5V
Supply Voltage Max	5.5V
Sensor Case Style	SOFL
No. of Pins	8Pins
Operating Temperature Min	-40°C
Operating Temperature Max	140°C
Packaging	Cut Tape
Product Range	-
Automotive Qualification Standard	-

Other details

Brand	INFINEON
Part Number	KP229E3111XTMA1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
