Microchip PIC12C508A-04/P 8 Bit MCU One Time Programmable PIC12 Family PIC12C5xx Series Microcontrollers 4 MHz 768 Byte

The PIC12C508A-04/P is a 8-bit 8-pin CMOS Microcontroller with high-performance RISC CPU. It employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle (1 µs) except for program branches which take two cycles. The PIC12C5XX delivers performance an order of magnitude higher than its competitors in the same price category. The 12-bit Wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.

• Power-on reset
• Device reset timer
• Watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code-protection
• Power saving SLEEP mode
• Wake-up from SLEEP on pin change
• Internal weak pull-ups on I/O pins
• Low power, high speed CMOS EPROM/ROM technology
• Fully static design

Applications

Computers & Computer Peripherals

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC12C508A-04/P
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN

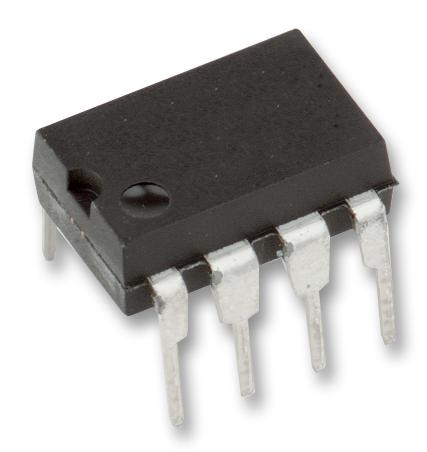

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
