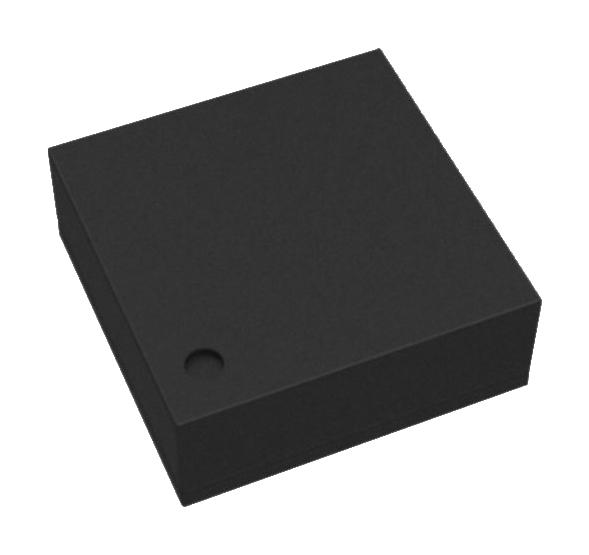

STM32MP135FAF7 is a 32bit Arm® Cortex®-A7 1GHz MPU for graphics and security. The Cortex®-A7 processor includes a 32Kbyte L1 instruction cache, a 32Kbyte L1 data cache and a 128Kbyte level2 cache. The Cortex®-A7 processor is a very energy-efficient application processor designed to provide rich performance in high-end wearables, and other low-power embedded and consumer applications. It provides up to 20% more single thread performance than the Cortex®-A5 and provides similar performance to the Cortex®-A9. The Cortex®-A7 incorporates all features of the high-performance Cortex®-A15 and Cortex®-A17 processors, including virtualization support in hardware, NEONâ�¢, and 128bit AMBA®4 AXI bus interface. This device provides an external SDRAM interface supporting external memories up to 8-Gbit density (1 Gbyte), 16bit LPDDR2/LPDDR3 or DDR3/DDR3L up to 533MHz.
- Dual quad-SPI memory interface
- Secure boot, TrustZone® peripherals, 12 x tamper pins including 5 x active tampers
- POR, PDR, PVD and BOR, internal temperature sensors
- Low-power modes sleep, stop, LPLV-stop, LPLV-stop2 and standby
- DDR retention in standby mode, controls for PMIC companion chip
- Internal oscillators 64MHz HSI oscillator, 4MHz CSI oscillator, 32KHz LSI oscillator
- Up to 135 secure I/O ports with interrupt capability, up to 6 wakeup
- 1 x high-speed general-purpose MDMA controller
- Arm® CoreSightâ�¢ trace and debug: SWD and JTAG interfaces usable as GPIOs
- TFBGA320, 320 balls package, -40°C to +105°C junction temperature range
Product details
| Product Range:
STM32 Family STM32MP1 Series Microprocessors
|
| No. of CPU Cores:
1Cores
|
| Program Memory Size:
-
|
| IC Case / Package:
TFBGA
|
| No. of Pins:
320Pins
|
| Supply Voltage Min:
1.71V
|
| Supply Voltage Max:
3.6V
|
| Operating Frequency Max:
1GHz
|
| Interfaces:
CAN, Ethernet, I2C, I2S, SAI, SPI, USB
|
| No. of I/O's:
135I/O's
|
| IC Mounting:
Surface Mount
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
-
|
| MPU Series:
STM32MP1
|
| MPU Family:
STM32
|
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32MP135FAF7 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
