Description

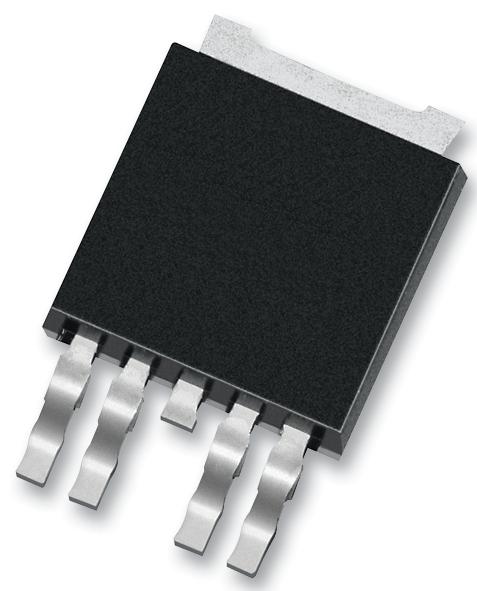

The TL2575HV-ADJIKTTR is a simple step-down switching Voltage Regulator for use with positive-to-negative converters (buck-boost). It requires four to six external components for operation. It accepts a wide input-voltage range of up to 60V and is available in fixed output voltage of 3.3, 5, 12, 15 or an adjustable-output version. The device has an integrated switch capable of delivering 1A of load current, with excellent line and load regulation. The device also offers internal frequency compensation, a fixed-frequency oscillator, cycle-by-cycle current limiting and thermal shutdown. In addition, a manual shutdown is available via an external ON/OFF pin.
- Requires only four external components (fixed version) and uses readily available standard inductors
- TTL shutdown capability with 50µA (typical) standby current
- Thermal shutdown and current-limit protection with cycle-by-cycle current limiting
- 52kHz Typical fixed-frequency internal oscillator
- 88% Typical high efficiency
- Green product and no Sb/Br
Power Management
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TL2575HV-ADJIKTTR |
| Quantity | Each (Supplied on Cut Tape) |
