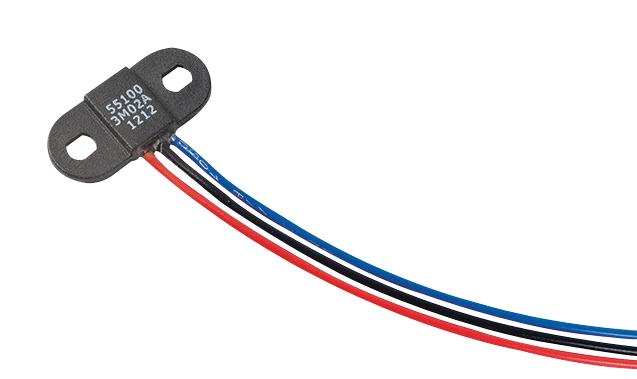

55100-2M-02-A is a 55100 series miniature flange mount hall effect proximity sensor (25.5mm x 11.00m and only 3.00mm high). It features high switching speed upto 10KHz. It has long life upto 20 billion operations. It operates in static or dynamic magnetic field. It is used in applications such as position and limit sensing, RPM measurement, flow metering, commutation of brushless dc motors, angle sensing, magnetic encoders. It's case design enables screw or adhesive mounting and capable of switching up to 24VDC and 20mA.
- Magnetically operated position sensor, reverse/over voltage protection
- Built in temperature compensation, unaffected by harsh environments
- 2 wire switch, 94 typical sensitivity gauss
- 300mm cable length , tinned leads termination
- Supply voltage range from +3VDC to +24VDC (operate)
- 32VDC max overvoltage protection
- 12KHz switching speed
- Operating temperature range from -40°C to +100°C, IP67 rated
- Vibration is 50g maximum @ 50 to 2,000Hz, shock is 150g maximum at 11ms ½ sine
- Open collector output
Product details
| Sensing Range Max:
15mm
|
| Supply Voltage DC Min:
3.75V
|
| Supply Voltage DC Max:
24V
|
| Sensor Terminals:
Wire Leads
|
| Output Configuration:
Current
|
| Output Voltage:
-
|
| Switching Speed:
-
|
| Product Range:
55100 Series
|
Other details
| Brand |
LITTELFUSE |
| Part Number |
55100-2M-02-A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
