Description

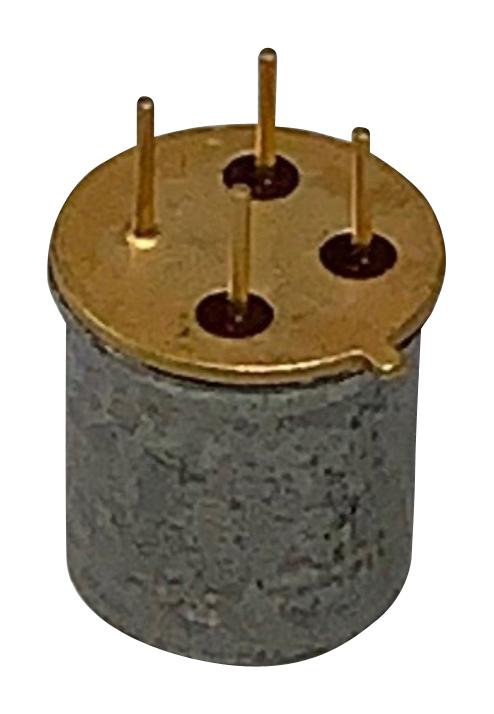

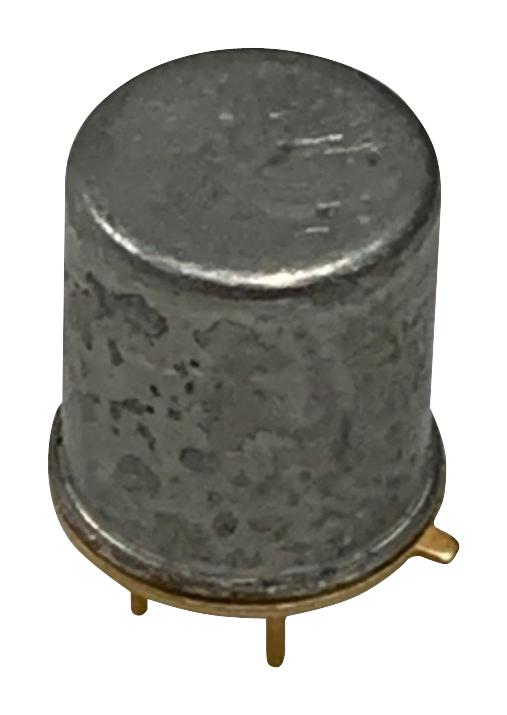

LVEP050-TO5 is an ultra low power embedded accelerometer. It is a high-performance piezoelectric accelerometer designed for ultra-low power consumption and easy integration into wireless vibration sensors and other battery-powered applications.
- 180μW ultra low power consumption, small and lightweight
- TO5 common form factor for embedded designs, hermetic seal
- Affordable for high-volume, integrated applications, dynamic vibration sensor output
- 50mV/g sensitivity, ±5% sensitivity tolerance, 1Hz to 11,000Hz frequency response (±3dB)
- 1.5VDC ±5% bias output voltage (BOV), 10ms BOV settling time
- Epoxy mounting style, 4-pin TO5 connector style, 25g peak full scale range
- 17KHz resonance frequency, voltage source range from 3VDC to 5.5VDC
- 304L stainless steel case material, hermetic sealing
- Nominal quiescent current is 60µA, output impedance is 1,000 ohm maximum
Product details
Other details
| Brand | AMPHENOL WILCOXON |
| Part Number | LVEP050-TO5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
