Description

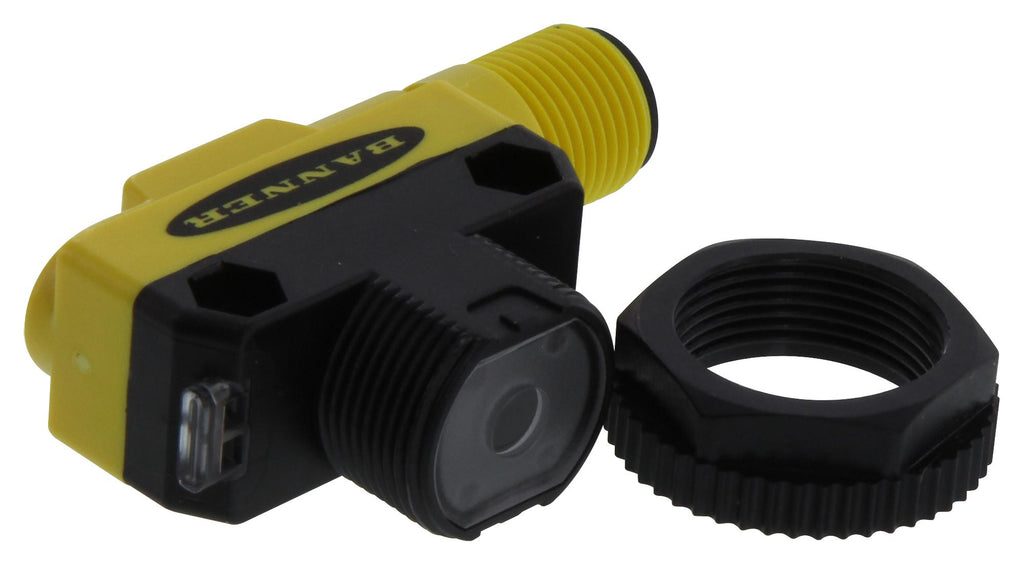

QS186LEQ8 is a QS18 series WORLD-BEAM Class 1 laser emitter. Self-contained Class 1 modulated visible laser diode emitter permits higher gain than LEDs and extended range in opposed-mode sensing systems. Narrow effective beam provides small-object detection and precise position control. Bright spot and multiple shapes provide great visual marking of objects. 10VDC to 30V dc operation; third wire extinguishes laser light when connected to +V correct dc.
- Small spot laser shape, IP67 IP rating, visible red laser sensing beam
- DC power, opposed sensing beam, rectangular w/M18 mount housing style
- ABS primary housing material, 30000mm maximum sensing distance
- 4-pin M12 integral QD connection, 250ms delay at power-up
- 18mm barrel diameter, quick disconnect, protected against reverse polarity
- Operating temperature range from -10°C to 50°C
Warnings
Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death.
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | QS186LEQ8 |
| Quantity | Each |
| Technical Data Sheet EN |  |
