Description

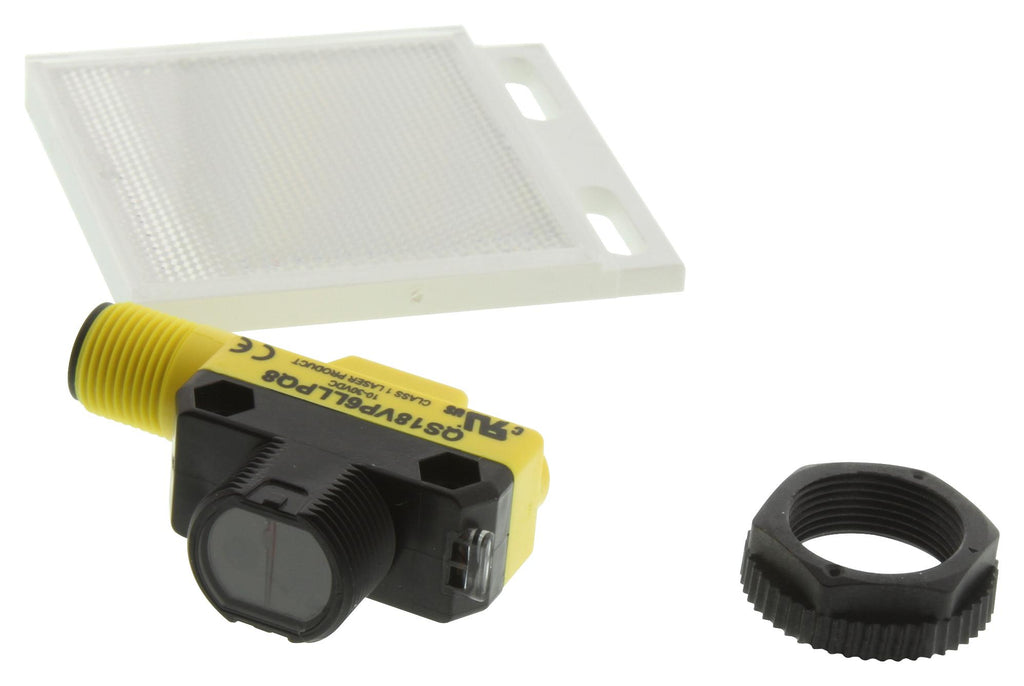

QS18VP6LLPQ8 is a WORLD-BEAM® QS18LLP series miniature polarized retroreflective laser sensor. Narrow effective beam provides small-object detection and precise position control. Crosstalk rejection algorithm protects against optical disturbance from adjacent sensors. Excellent optical performance throughout sensing range, even close up. Bright LED operating status indicators are visible from 360°.
- Input voltage range from 10V to 30VDC, 4-pin M12 integral QD connection
- Visible red laser sensing beam, DC power
- IP67 IP rating, retroreflective sensing mode
- Rectangular w/M18 mount housing style, ABS primary housing material
- Class 1 classification, 10000mm maximum sensing distance
- PNP output, 0.7ms output response time, 130µs repeatability
- Acrylic lens material, quick disconnect, cUL certified
- Operating temperature range from -10°C to 50°C
Warnings
Do not use this device for personnel protection. Using this device for personnel protection could result in serious injury or death.
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | QS18VP6LLPQ8 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 19616.06 |
| 3-5 | ₹ 19415.9 |
| 5-10 | ₹ 19015.57 |
| 10+ | ₹ 18615.24 |
Bulk discount will be automatically applied during checkout based on quantity.
