Description
A-Neuvideo 0108POE Overview

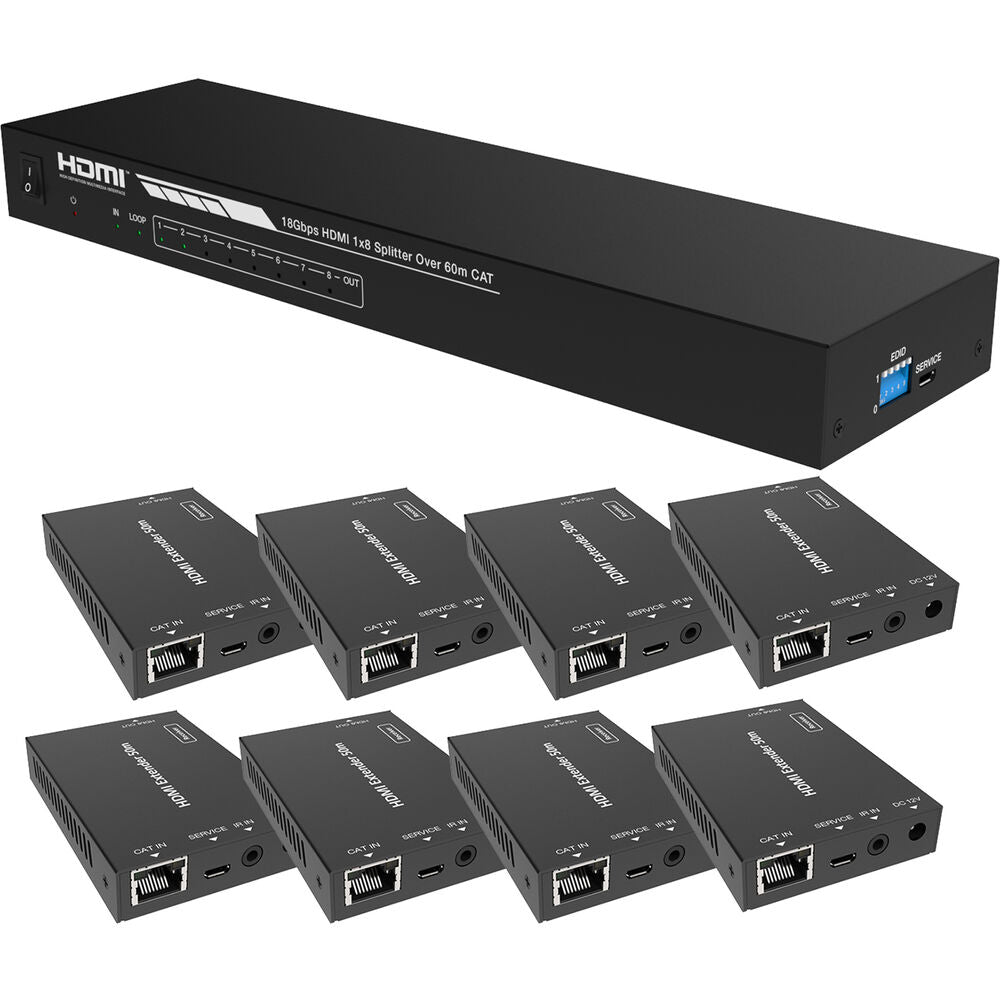

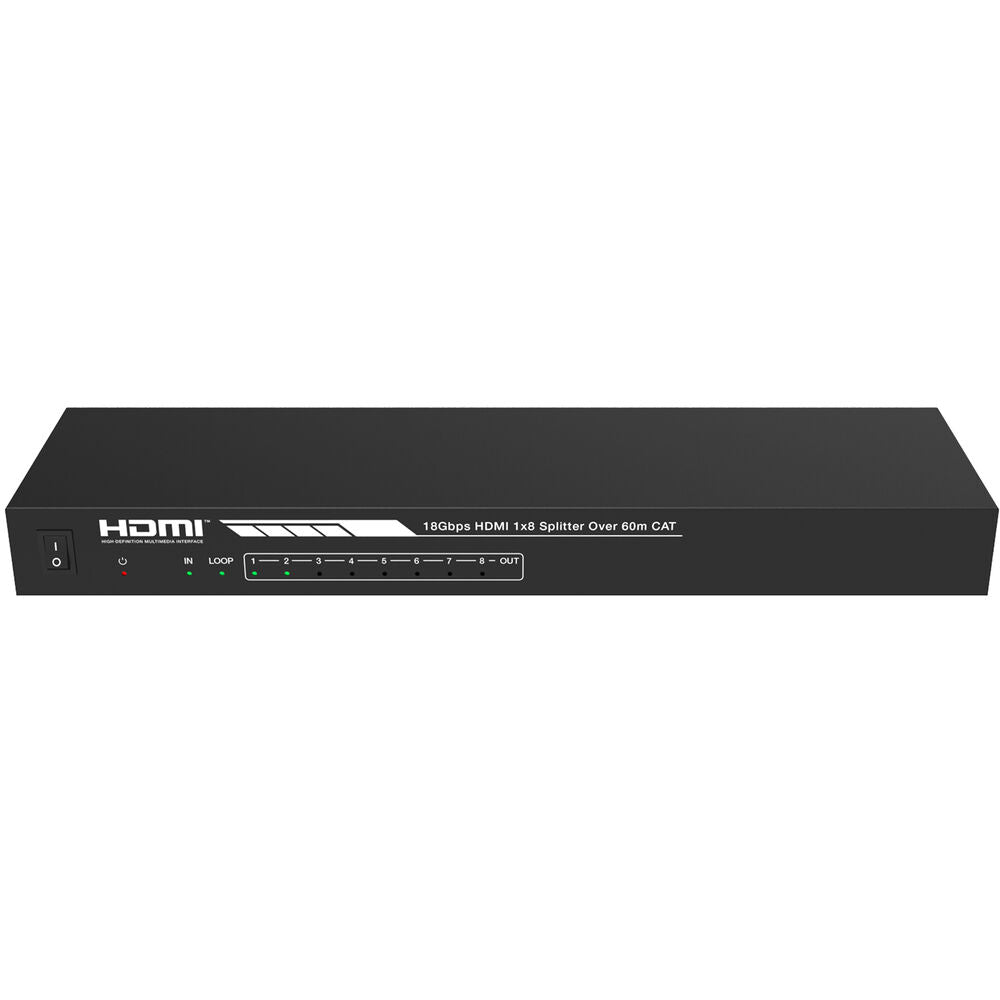

Split an HDMI video signal for viewing on up to eight displays at up to 196' away with this 1x8 4K60 HDMI over Cat 6 Extender Splitter with PoE, Auto Setup & 8 x Receivers from A-Neuvideo. The splitter/extender supports auto setup and enables transmitting an HDMI 2.0 input using eight extension receivers and up to 196' of Cat 6/6a/7 cable. Transmission distances range from up to 4K60 video up to 114' and up to 1080p60 video up to 196'. It also features an HDMI loop output to view your source on a local display. You can also extract Dolby, LPCM, or PCM audio from the HDMI input for sending to speakers using the 3.5mm and/or the RCA outputs.
The splitter supports video signals up to 4K60 and 1080p60, LPCM 7.1, Dolby and LPCM embedded audio, HDMI 2.0, HDCP 2.2, DVI 1.0, and advanced EDID management control. The eight RJ45-to-HDMI receivers are powered via PoE (Power-over-Ethernet), which means you don't need to power them individually with adapters. An IR blaster transmitter and eight IR receivers are included, which enable pass-through of IR control of the HDMI device via its IR remote to any one of the receivers.
In the Box
- A-Neuvideo 1x8 4K60 HDMI over Cat 6 Extender Splitter with PoE, Auto Setup & 8 x Receivers (196')

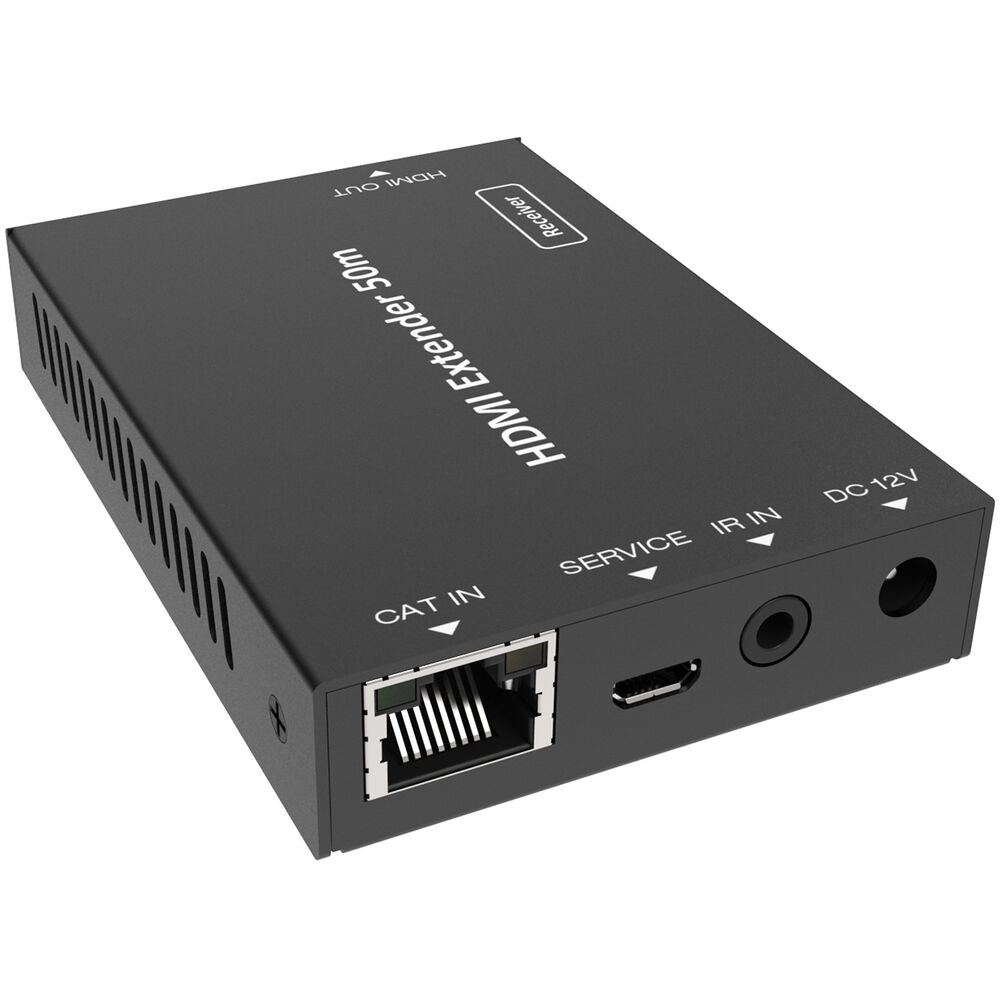

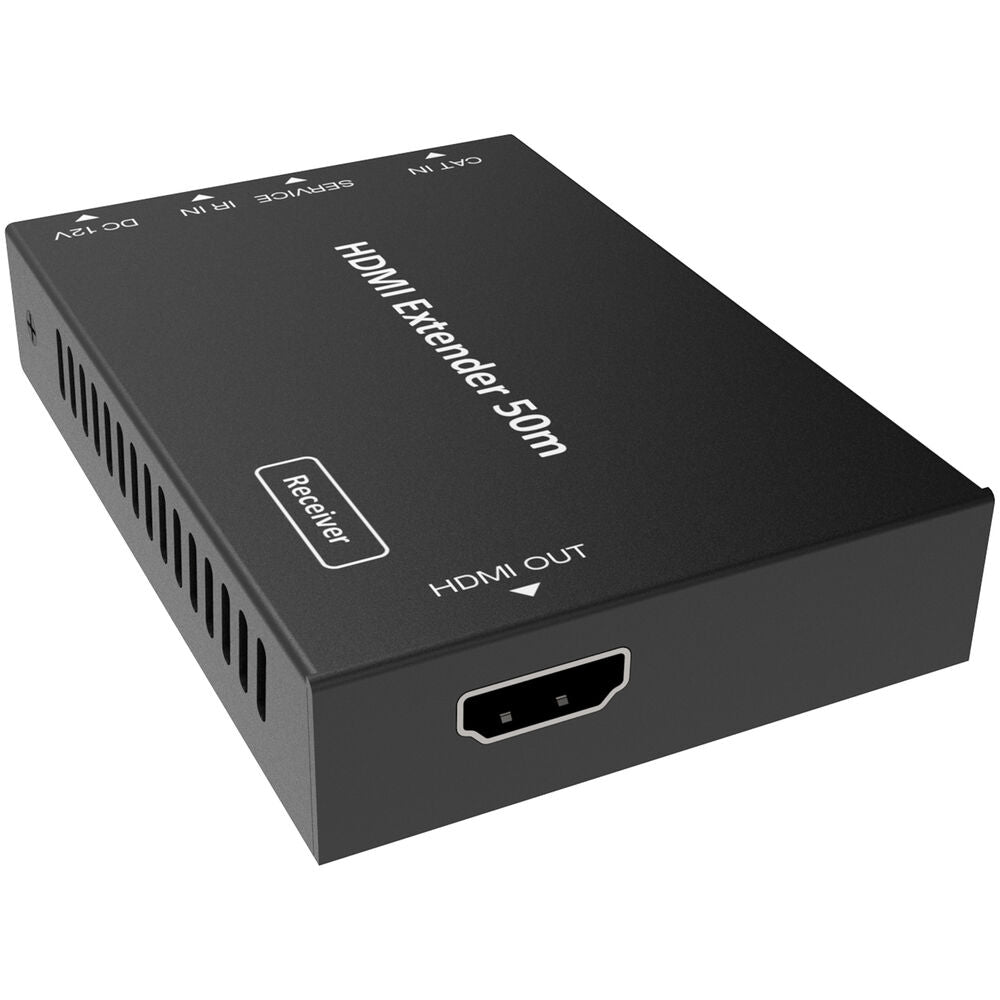

- 8 x Receiver
- IR Blaster Transmitter
- 8 x IR Receiver Cable
- USB Type-A to Micro-USB Cable
- 12 VDC Power Supply Adapter
- Limited 3-Year Warranty
A-Neuvideo 0108POE Specs
| Input Connectors | 1 x HDMI (HDMI 2.0) Female |
| Embedded Audio Input | HDMI |

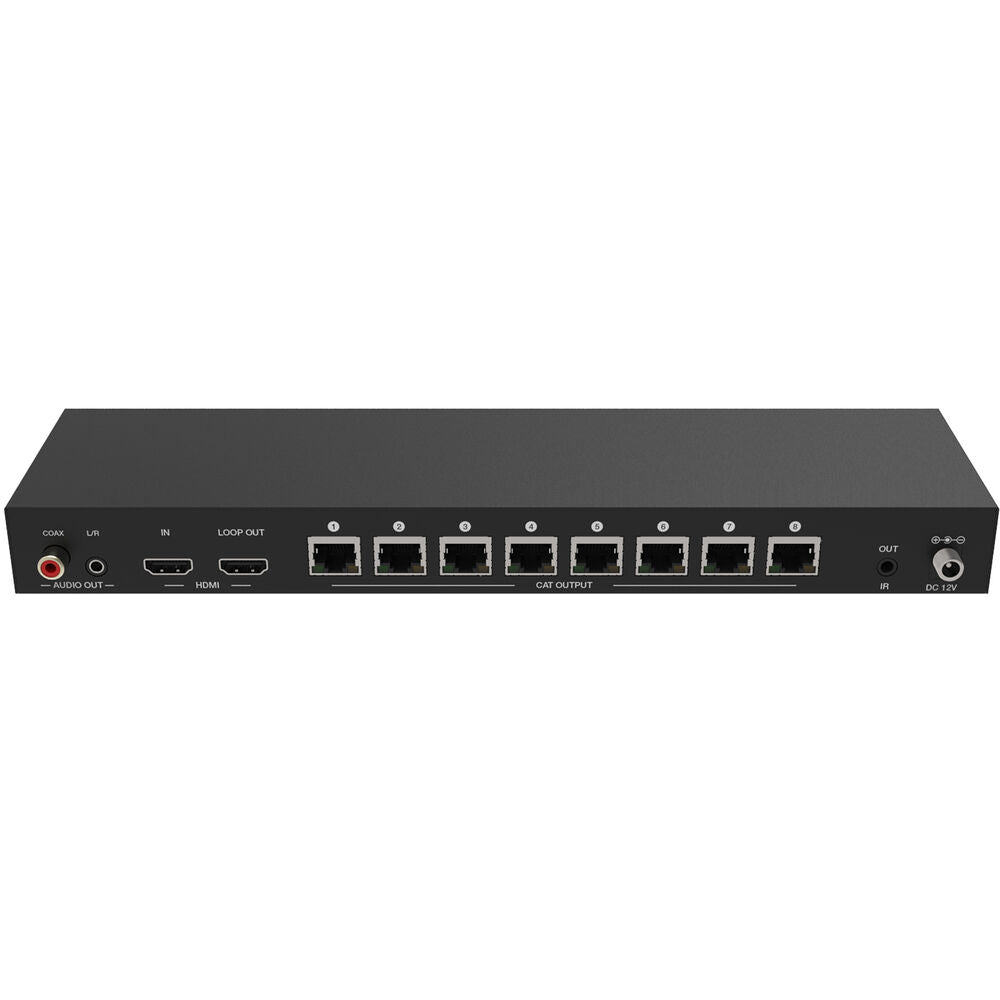

| Output Connectors | 1 x HDMI (HDMI 2.0, Looping) Female 8 x RJ45 (HDMI 2.0) Female 1 x RCA (Stereo Analog) Female 1 x 1/8" / 3.5 mm TRS (Stereo Analog) Female |
| Other I/O | 1 x USB Micro-B Firmware Input |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| HDCP Support | Version 2.2 |
| EDID Support | Manual Control |
| Audio Decoding | DSD, DTS Digital Surround, DTS-HD, DTS:X, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, LPCM, PCM |
| Max Transmission Distance | 1080p at 60 Hz: 196.9' / 60 m (via Cat 6/6a/7) DCI 4K, UHD 4K at 60 Hz: 114.8' / 35 m DCI 4K, UHD 4K at 30 Hz: 164' / 50 m |
| Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2 YCC) 1080p: 60 fps HDMI (8-Bit 4:4:4/4:2:0 YUV) DCI 4K: 60 fps HDMI (8/10/12-Bit 4:2:2/4:2:0 RGB, YCC) DCI 4K: 60 fps |
| Bandwidth | 594 MHz |
| Maximum Data Rate | 18 Gb/s |
| Power Connector | 1 x Proprietary (12 VDC at 2.5 A) Input |
| Power Consumption | Power Supply: 100 to 240 VAC (25.44 W) |
| ESD Protection | ±8 kV Air-Gap Discharge ±4 kV Contact Discharge |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% |
| Certifications | CE, FCC, UL, as per Manufacturer |
| Material of Construction | Metal |
| Dimensions |
11.8 x 3.9 x 1.1" / 300.0 x 100.0 x 28.0 mm 3.5 x 2.4 x 0.7" / 88.0 x 61.0 x 18.0 mm |
| Weight | 1.8 lb / 823 g |
| Package Weight | 6.855 lb |
| Box Dimensions (LxWxH) | 16.1 x 12 x 3.6" |
