Description
- 4-Pin S-Video Connectors
- Low Loss
- No Phase or Gain Distortion
- Compact Rugged Plastic Case
- Passive-No Power Needed
- Bi-directional (Reversible)
- Rackmountable

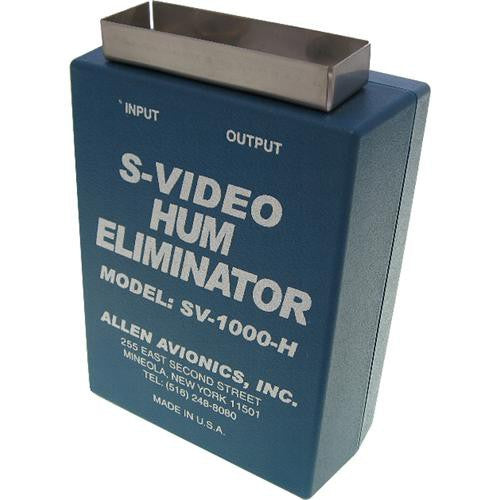

The Allen Avionics SV-1000-H is a video hum eliminator for S-Video (Y/C) applications. It offers 4-pin connectors and is designed to eliminate ground loop distortion and 50/60Hz hum when installed on a video line.
- Outstanding Features
-
- Eliminates all 50 Hz & 60 Hz Hum and Interference
- DC Connection Preserved
- Hum Attenuation up to 60 dB Depending on System
- Flat Response over S-Video Bandwidth
In the Box
Allen Avionics SV-1000-H S-Video Hum Eliminator
- Noise Eliminator
- 1 Year Warranty
| Input | Y/C S-Video , unbalanced @ 75 ohms, on a 4-Pin connector |
| Output | Y/C S-Video , unbalanced @ 75 ohms, on a 4-Pin connector |
| Bandwidth | 160Mhz |
| Hum Rejection | 50 or 60Hz |
| Return Loss | 0.5dB @ 3.58Mhz |
| Dimensions (WxDxH) | 4 x 2 x 5.3" 10.2 x 5.1 x 13.5cm |
| Weight | 2.5 lbs 1.13kg |
| Packaging Info | |
|---|---|
| Package Weight | 2.4 lb |
| Box Dimensions (LxWxH) | 5.9 x 4.3 x 2.2" |
