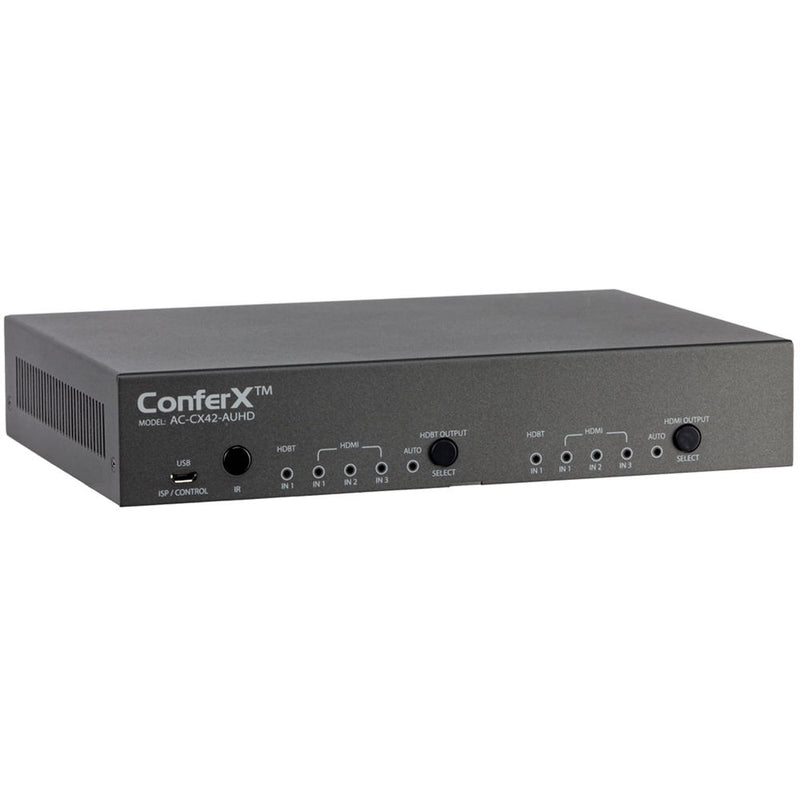

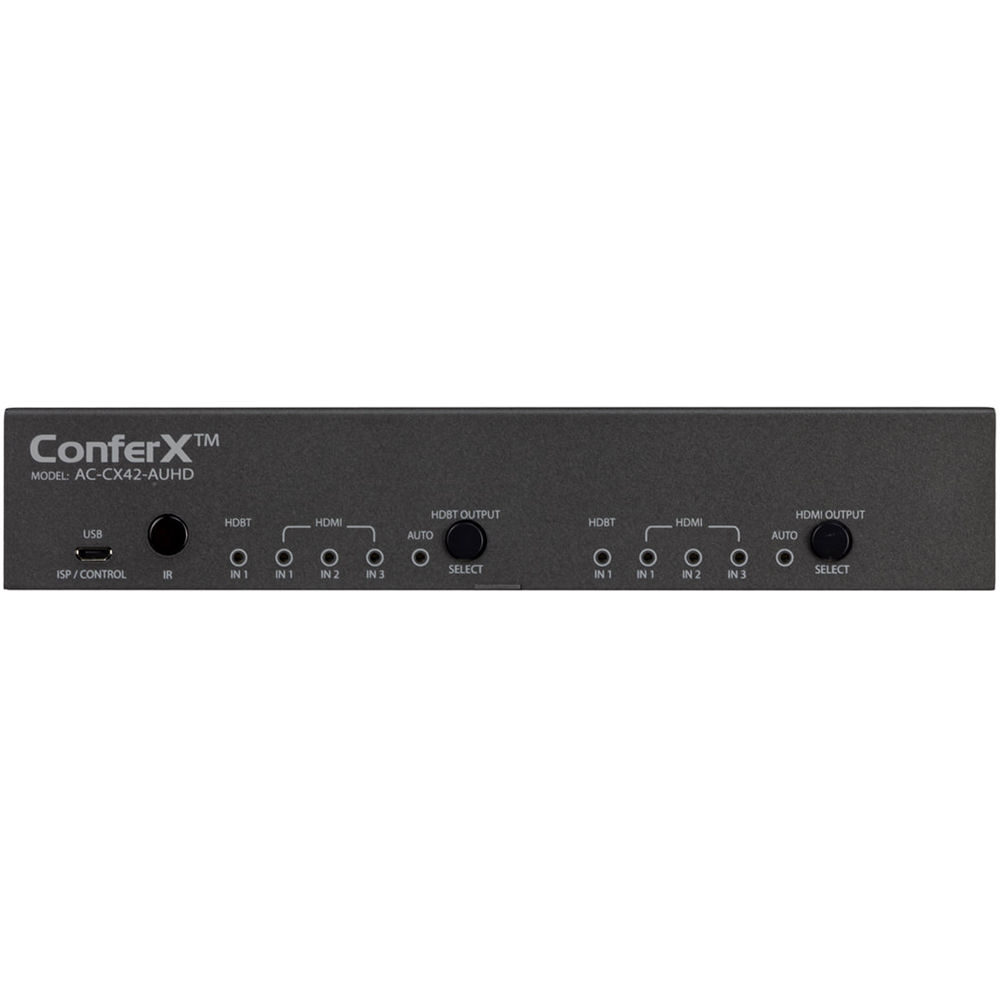

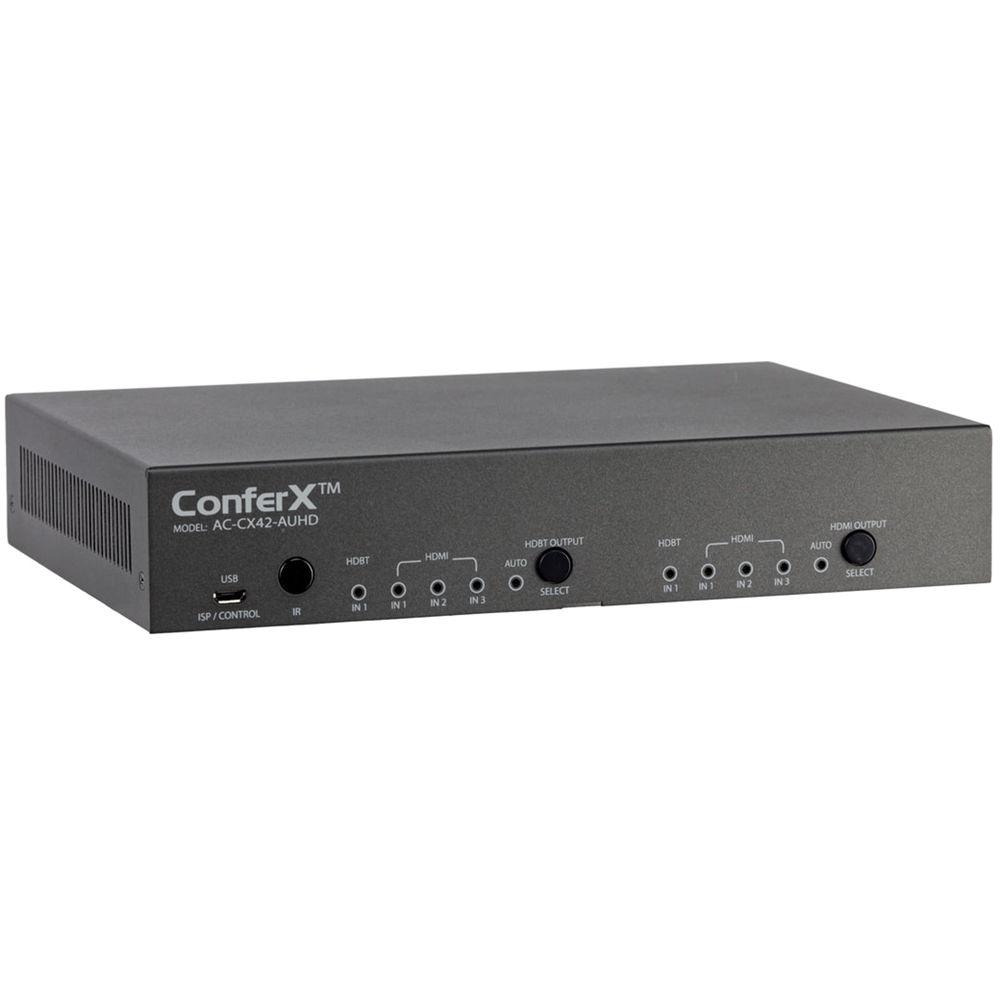

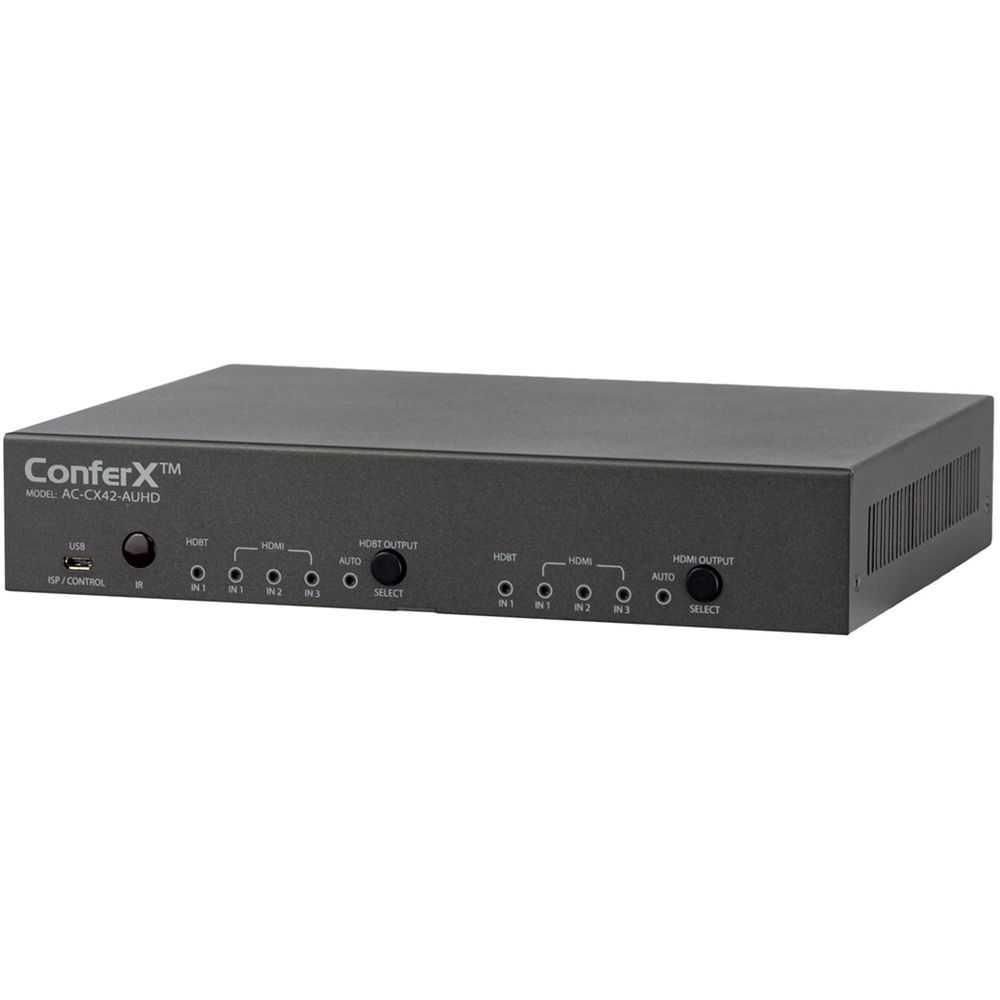

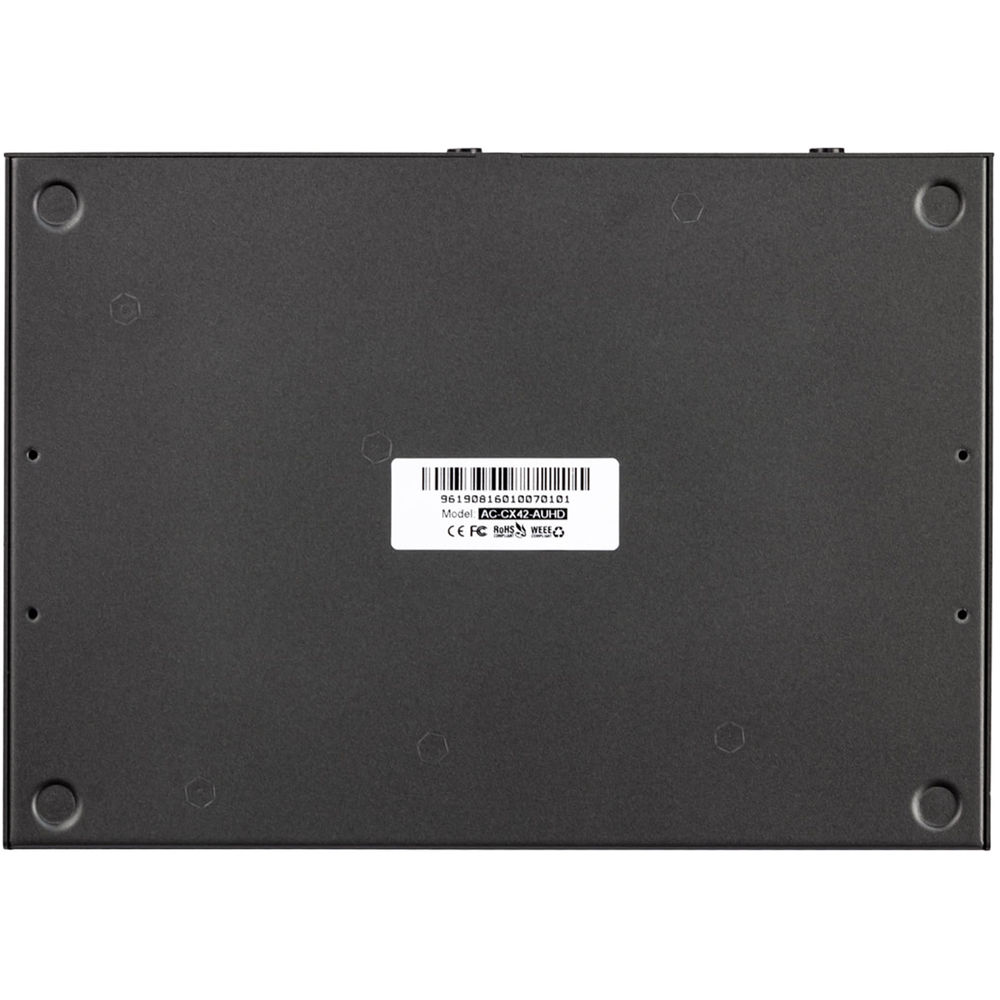

AVPro Edge 4 x 2 ConferX HDBaseT / HDMI Matrix Switcher

1 x HDBaseT / 3 x HDMI Inputs

HDBaseT / HDMI Independent Outputs

Multichannel Audio/Mic/Intercom Support

Dolby Vision, HDR10+, and HLG Support

The AVPro Edge 4 x 2 ConferX HDBaseT / HDMI Matrix Switcher features one HDBaseT and three HDMI inputs and allows you to output any two signals via independent HDMI and HDBaseT outputs. You're able to display two sources at the same time. Additionally, audio inputs and outputs let you connect multichannel audio as well as a mic or intercom system.

Using compatible receivers or wall plate transmitters (see below), you can extend a 4K/HDR signal up to 230' over Cat 6a/7 and 1080p up to 328', or 4K/60 4:4:4 up to 50' over bullet train HDMI cabling or 2130' over bullet train AOC cables. Featuring auto-sensing capability, this switcher provides an efficient workflow for BYOD applications in conference rooms, classrooms, huddle spaces, and other environments.

Key Features

• I/O: one HDBaseT and three HDMI inputs / HDBaseT and HDMI independent outputs
• Audio I/O for multichannel audio plus a mic or intercom system
• RS-232, IR, and LAN
• Auto-sensing for BYOD applications
• HDMI 2.0 (a/b)
• HDMI bandwidth: 18 Gb/s
• HDBaseT bandwidth: 10.2 Gb/s (18 Gb/s when used with certain receivers, such as the AVP-AC-EX70-444-RNE)
• Dolby Vision, HDR10+ and HLG Support
• HDCP 2.2 and earlier
• Advanced EDID management
• Web-based control GUI
• 3rd-party controllers supported (Control4, Crestron, Savant, etc.)

Resolutions Supported

• Up to UHD 4K/60 at 4:2:0 and 4K/30 at 4:4:4
• Up to 2560 x 2048 (QSXGA) PC resolutions
• HDR: 4K/24 4:2:2 12-bit, 4K/24 4:2:0 10-bit
• Color space: YUV (component), RGB (CSC: Rec 601/709, BT2020, DCI, P3 D6500)
• Deep color: up to 16-bit at 1080p and 12-bit 4K

Audio Formats Supported (HDMI)

• PCM 2.0
• LPCM 5.1 / 7.1
• Dolby Digital
• DTS 5.1
• Dolby Digital Plus
• Dolby TrueHD
• DTS-HD Master Audio
• DTS-X
• Dolby Atmos

Audio Formats Supported (TOSLINK)

• PCM 2.0
• LPCM 6 /7
• Dolby Digital
• Dolby Digital Plus
• DTS Master Audio

Audio Formats Supported (2-Channel)

• PCM 2.0

Distance

• HDMI lead in/out (4K/60 4:4:4): up to 50' using bullet train HDMI
• HDMI lead in/out with AOC cable (4K/60 4:4:4): up to 2130' using bullet train AOC
• HDBaseT (1080p): 328' using Cat 6a/7
• HDBaseT (4K & HDR): 230' using Cat 6a/7

Compatibility (HDBaseT Input)

• AC-CXWP-HDMO-T wall plate transmitter
• AC-CXWP-MDP-T wall plate transmitter
• AC-CXWP-USBC-T wall plate transmitter
• AC-CXWP-VGA-T wall plate transmitter
• AC-EX100-UHD-T
• AC-EX100TT-UHD-T

Compatibility (HDBaseT Output)

• AC-CX100-RAMP
• AC-EX70-444-RNE
• AC-EX100-UHD-R3
• AC-CX70-UHD-R

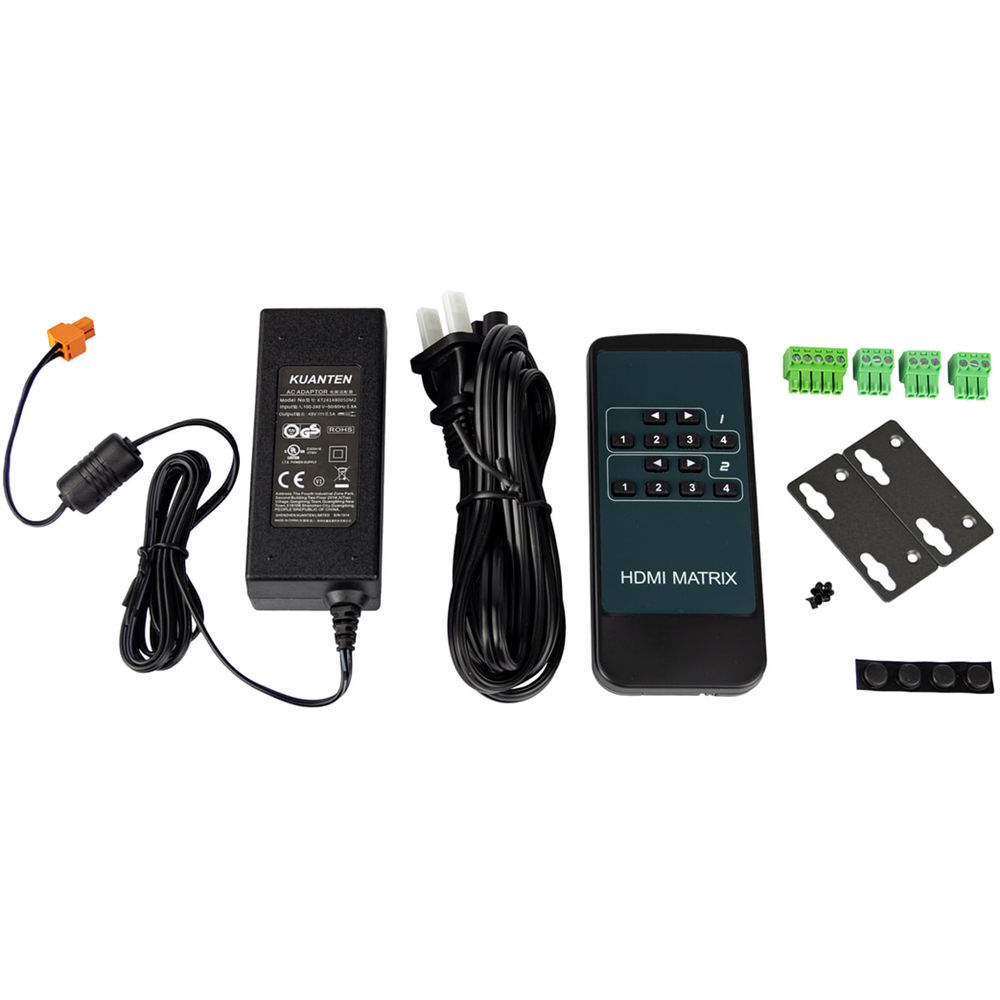

Power Supply

• 100-240 VAC 50/60 Hz input
• 48 VDC 0.5 A output

UPC: 850001710824

Switching Type

Pushbutton

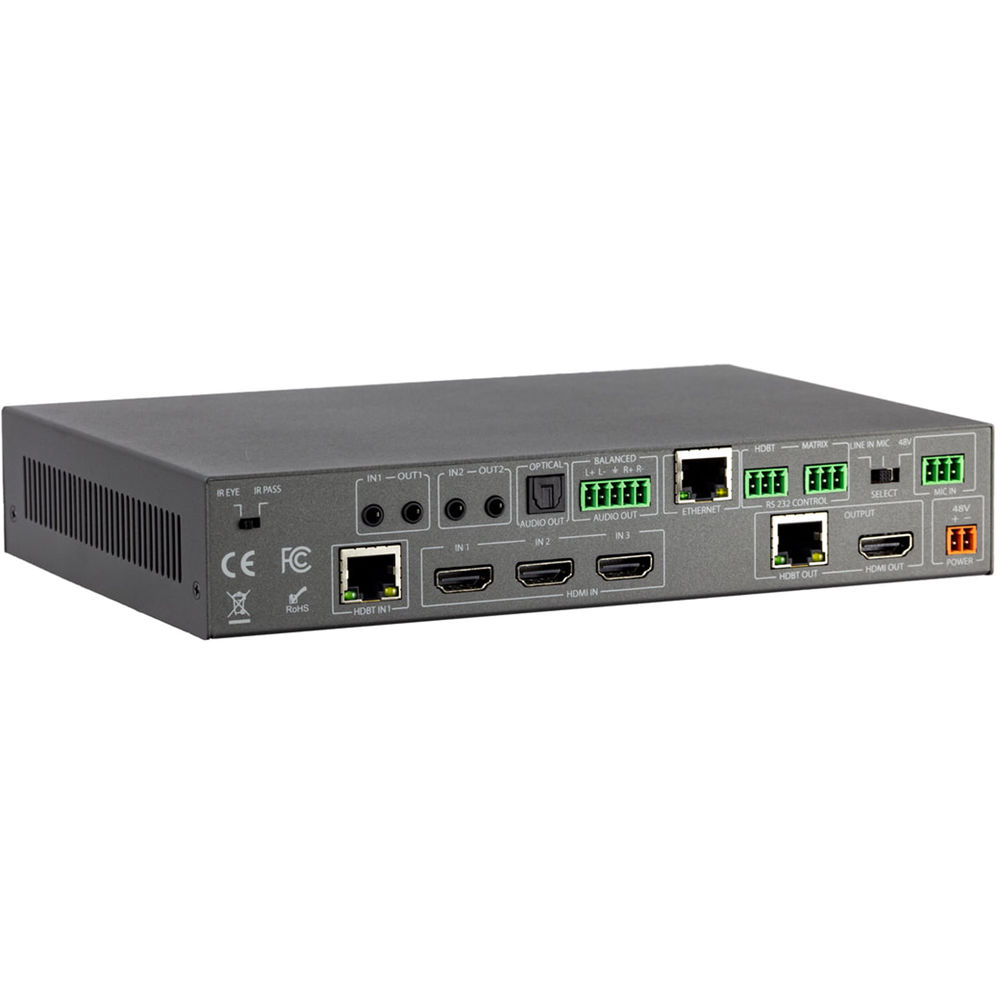

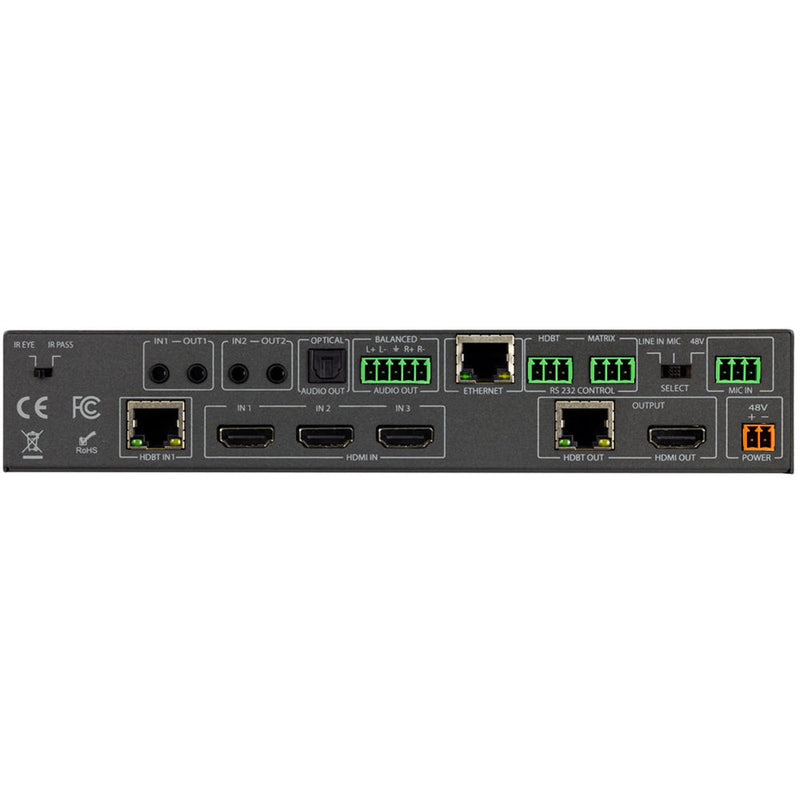

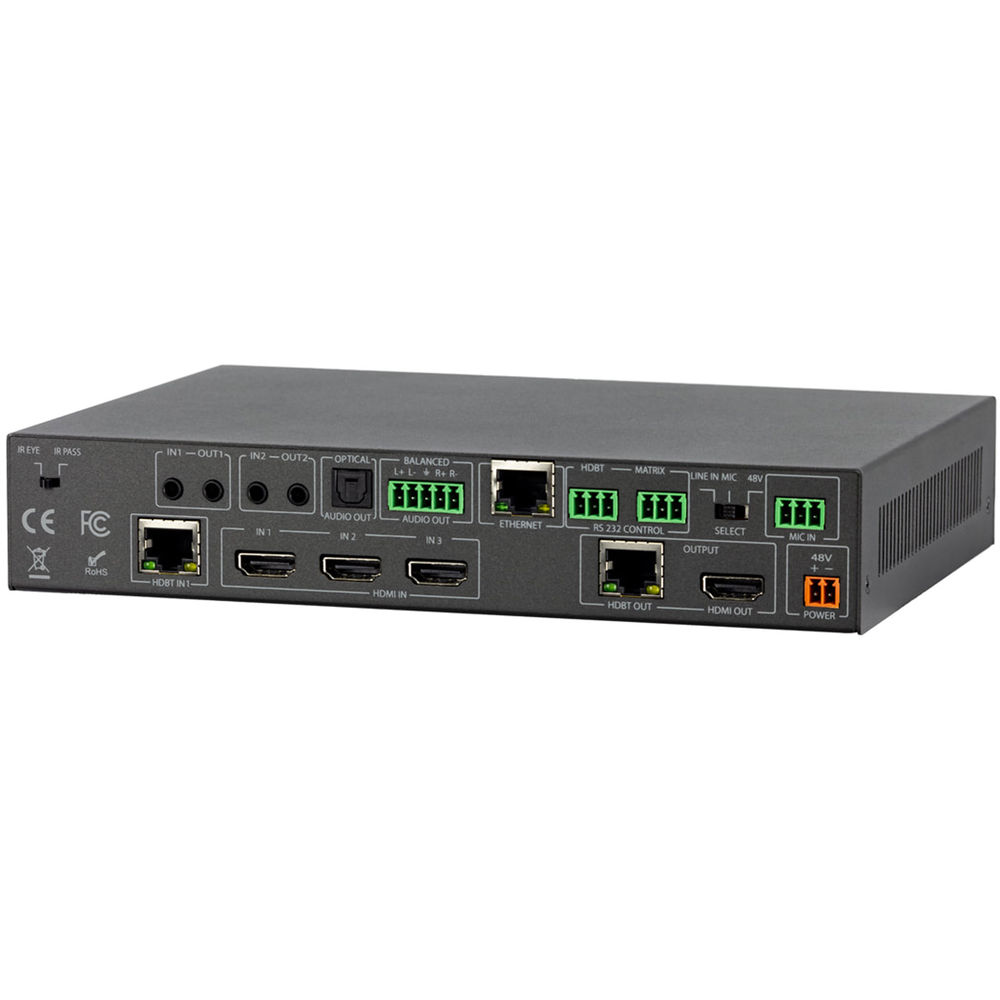

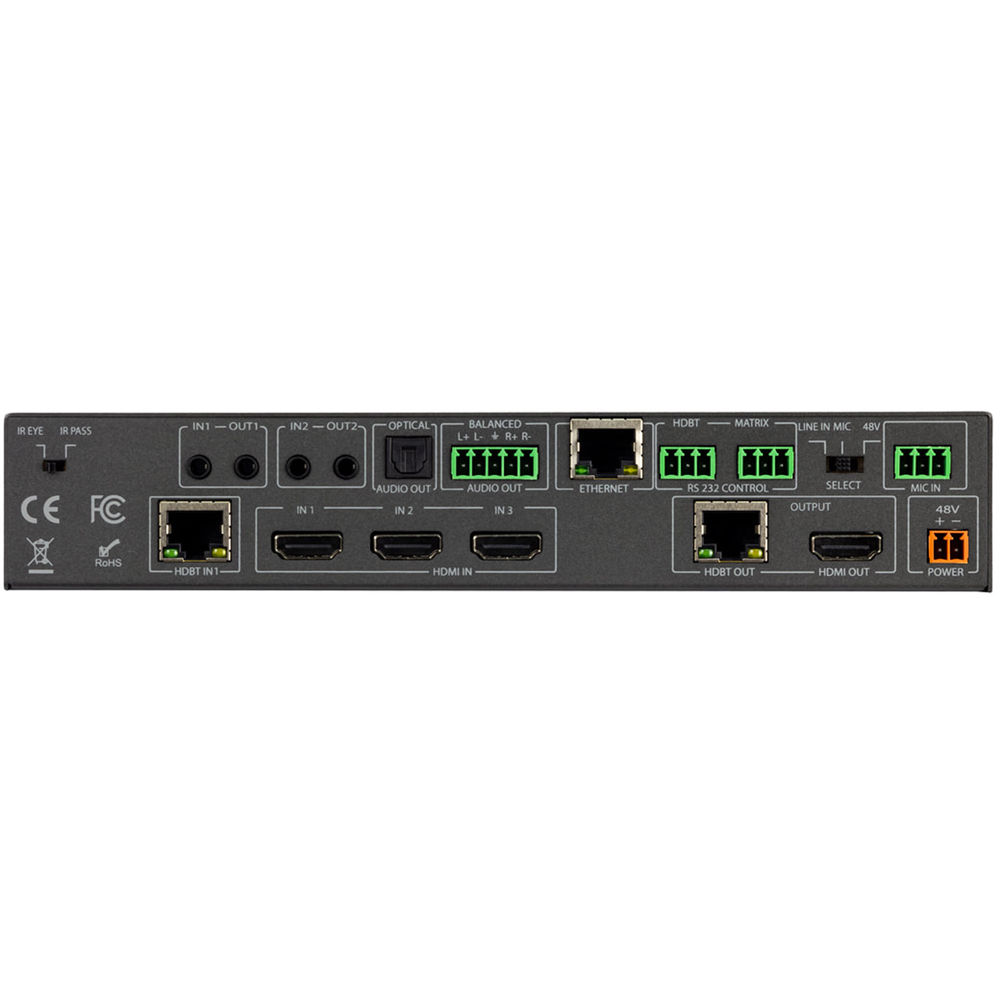

Video Input Connectors	3 x HDMI (HDMI 2.0) 1 x RJ45 (HDBaseT)
Audio Input Connectors	1 x 3-Pin Euroblock Analog

Video Output Connectors	1 x HDMI (HDMI 2.0) 1 x RJ45 (HDBaseT)
Audio Output Connectors	1 x TOSLINK S/PDIF 1 x 5-Pin Euroblock Analog

Other I/O	1 x RJ45 LAN 2 x 3-Pin Euroblock RS-232 2 x 3.5 mm IR Input 2 x 3.5 mm IR Output
HDCP Support	Version 2.2

Power Connector	1 x 2-Pin Euroblock (48 VDC at 0.5 A) Input
Power Consumption	Device: 12 W

Operating Temperature	23 to 125°F / -5 to 51°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	5 to 90%

Package Weight	3.465 lb
Box Dimensions (LxWxH)	15.5 x 8.7 x 3.5"
