Description
- Rout Any Input to Any Output
- Supports up to 1600 x 1200 Resolution
- Manage A/V and Signage Installations
- Audio Inputs with Audio Follows Video
- Audio or Video Inputs May Be Disabled
- Non-Volatile Memory Retains Settings
- IR Remote Control Included
- RS-232 Port
- Rackmountable with Optional Kit

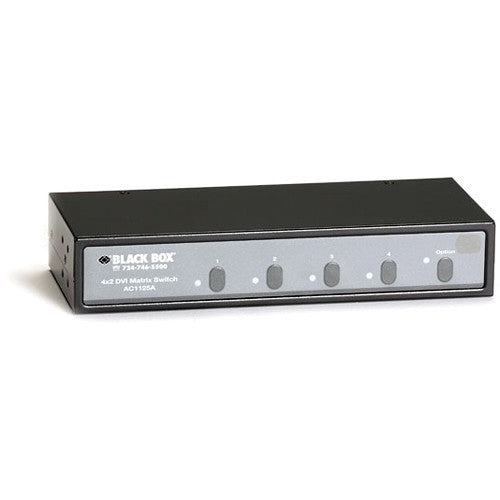

The 4 x 2 DVI Matrix Switch with Audio from Black Box allows you to route up to 4 to up to 2 destinations, allowing you to centrally manage the routing multiple pieces of A/C equipment in your setup. It supports DVI-D (digital only) devices at resolutions up to 1600 x 1200 (UXGA) at 60 Hz. In addition each input and output features a stereo 3.5 mm mini audio connector so that audio can be routed alongside the video. The switcher can be controlled locally via front panel buttons or using the included IR remote from up to 16.4' away.
- RS-232 port for remote control via software or third-party automation system
- Switches both the video and audio directly
- Turn the video and audio on or off individually at each port
- Features Auto Scan and selectable scan time interval
- 1RU rackmountable form factor. Rackmount kit available separately
- System settings are automatically retained. Recover your previous settings after power blackouts
In the Box
Black Box 4 x 2 DVI Matrix Switch with Audio
- Power Supply
- AC Cord
- IR Remote Control
- IP Extension Kit
- Set of Rubber Footpads
- Limited 1-Year Warranty
| Connectivity | |
|---|---|
| Inputs | 4 x DVI-D (digital only) 4 x Stereo audio on 3.5 mm mini jack (line level) |
| Outputs | 2 x DVI-D (digital only) 2 x x Stereo audio on 3.5 mm mini jack (line level) |
| Maximum Resolution | 1600 x 1200 (UXGA) at 60 Hz |
| HDCP Compliance | No |
| Control | 1 x RS-232 on 2.5 mm sub-mini jack 1 x IR Extender port |
| General | |
|---|---|
| Power Requirements | 100 to 240 VAC, 50 to 60 Hz (autosensing) |
| Rack Height | 1 RU |
| Dimensions (H x W x D) | 1.6 x 8.7 x 3.8" / 4.1 x 22 x 9.7 cm |
| Weight | 1.6 lb / 0.7 kg |
| Packaging Info | |
|---|---|
| Package Weight | 3.7 lb |
| Box Dimensions (LxWxH) | 11.811 x 10.787 x 4.252" |
