Link Bridge HDBaseT HDMI/VGA Wall Plate Transmitter & HDBaseT Lite Receiver Kit (197')

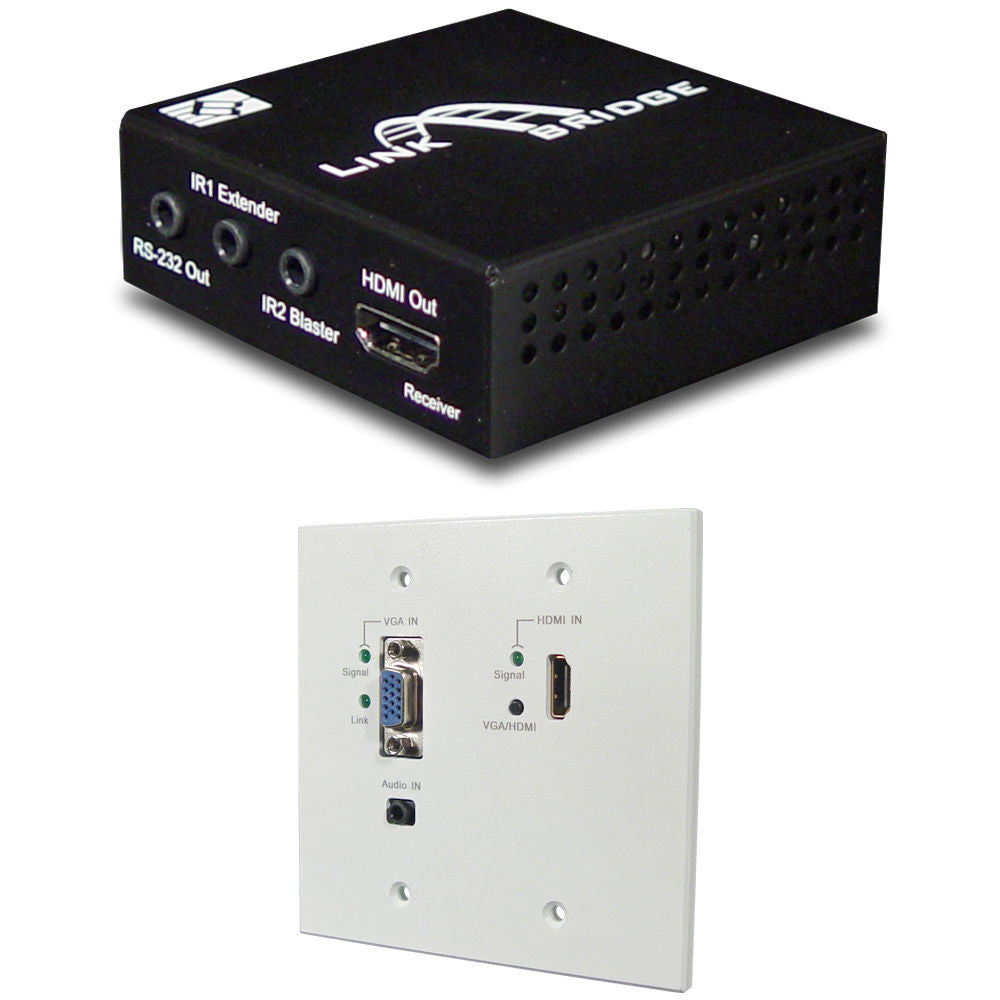

The Link Bridge Kit includes an HDBaseT HDMI/VGA Wall Plate Transmitter and an HDBaseT Lite Receiver . The wall plate transmitter carries a selectable HDMI or VGA/Audio signal input over a single Cat5e/6 cable to the HDMI receiver at a maximum distance of 197'.

• HDMI/VGA HDBaseT Wall Plate Transmitter

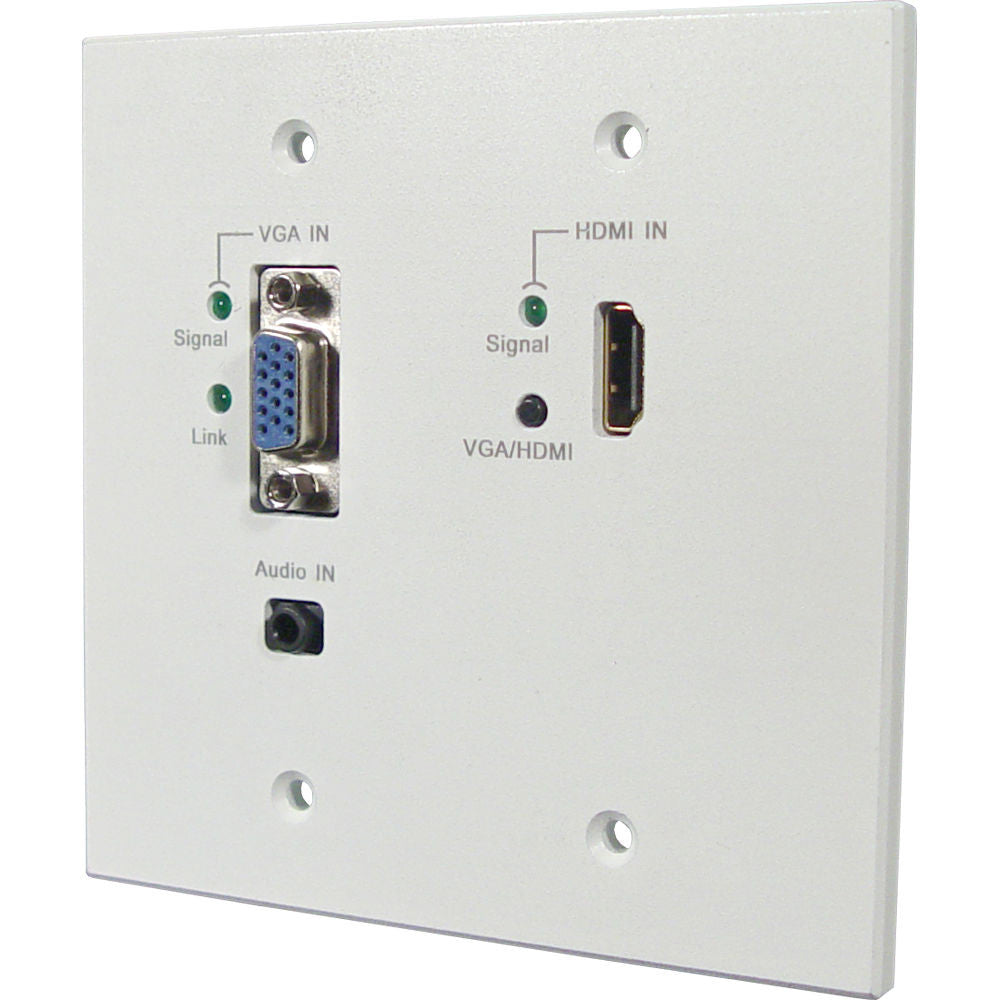

  Transmit high-quality audio and video over 230' using a single cable with the Link Bridge HDMI/VGA HDBaseT Wall Plate Transmitter . All the electronics are mounted on the wall plate for clean installation in A/V closets or presentations rooms. The HDBaseT interface transmits audio, video, power, and control data over a single cable for a simple wiring solution without any quality loss.

  The front panel of this device houses HDMI and VGA inputs. The unit can automatically switch to an active input, or the input can be manually selected using the front-panel switch or RS-232 control. The VGA input will be converted to an HDMI signal so it can be transmitted via HDBaseT. While using the VGA input, an analog 3.5mm stereo input is provided for embedding audio. The HDMI input supports Full HD as well as UHD and DCI 4K signals. HDCP, EDID, and other protocols are passed through the HDBaseT feed.

• 4Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable

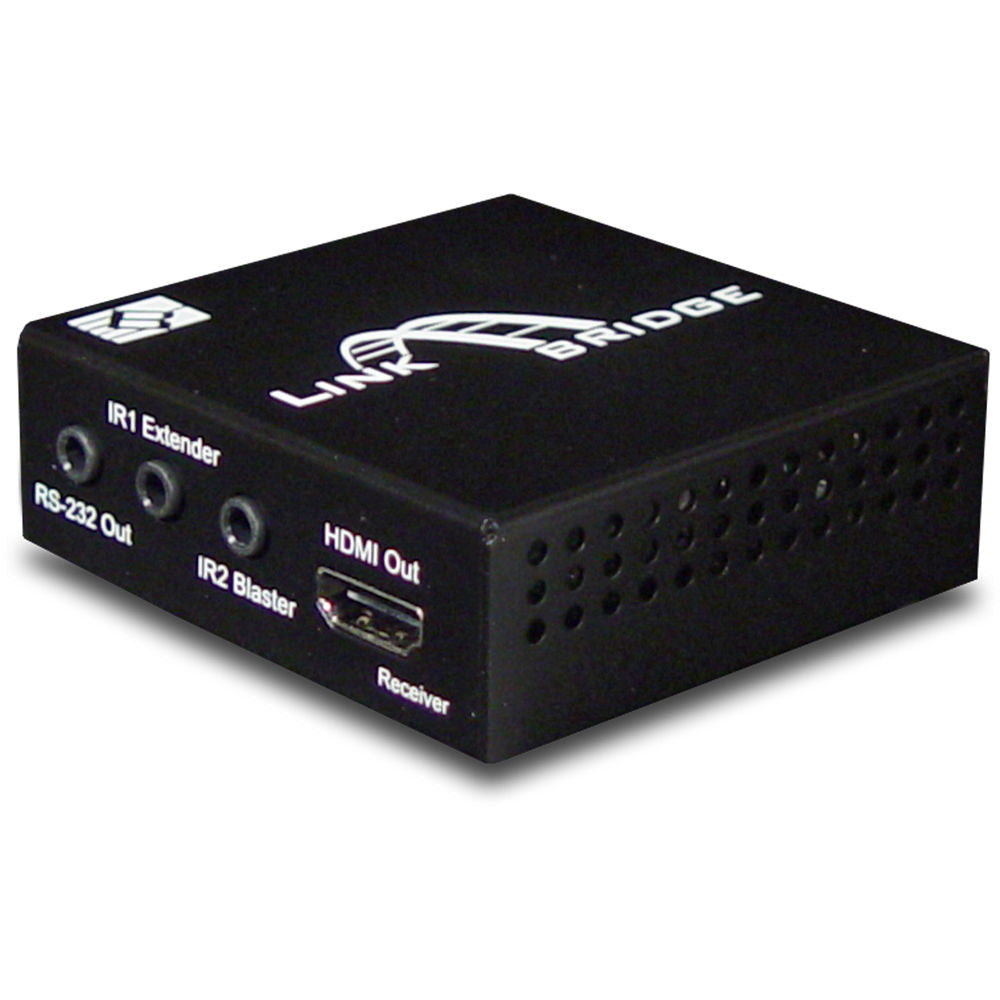

  Link Bridge 's compact 4Play HDBaseT Receiver makes it simple to integrate unidirectional video with up to DCI 4K resolution (4096 x 2160) and audio, as well as bidirectional control and power over the same HDBaseT interface. Using this receiver with a compatible 4Play HDBaseT transmitter allows you to send all four aspects of the 4Play designation over 196' using a single twisted pair Cat5e/6 cable without any quality loss, as there is no conversion or processing of the signals. Since power is also transmitted, only the transmitter or the receiver needs to be connected to mains power; the other will be powered over the HDBaseT connection.

  A simple setup would involve sending an HDMI A/V signal from the transmitter near the A/V equipment to the connected receiver near a projector or monitor. Using the control connections and IR capabilities, control of the A/V equipment can still be maintained. The actual unit is compact and unobtrusive for use in A/V closets or presentation rooms.

• Power Supply

• Limited 1-Year Warranty

• US Power Supply

• IR Transmitter Cable

• Mounting Bracket

• Limited 1-Year Warranty
