Description

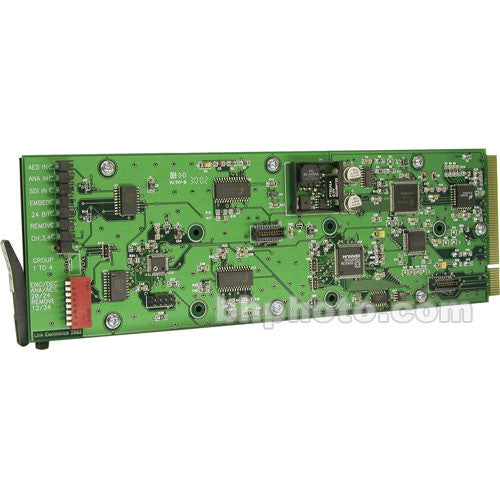

The Link Electronics 11801080 is a multiplexer de-multiplexer for embedding and de-embedding AES audio onto an SDI signal. Audio is embedded onto the SDI video signal for single cable AV distribution. This function allows high quality signals to travel long distances on one cable for economic and space considerations.
Note: Analog audio is available as an option
- Multiplexing
- The 1180 is designed to insert analog or digital audio signals onto a single SMPTE 259M serial component digital video signal. The audio signal will be placed onto the SDI video according to SMPTE 272M-1994.
- Demultiplexing
- This unit is designed to extract the digital audio signal from a single SMPTE 259M serial component digital video signal. The demultiplex function reads the AES/EBU audio signal and sends the data in AES format out the digital audio output port.
- Audio
- 20 bit or 24 bit audio can be selected; 75 ohm unbalanced and 110 ohm balanced audio are supported. Multiple channels can be embedded and de-embedded.
- Multiple System
- Digital NTSC (525/60) and PAL (625/50) television systems are supported for signal acceptance and reproduction.
- Rack Card
- This card was design to fit into the 1000 series rack card chassis or the 7200 single card chassis.
In the Box
Link Electronics 11801080 SDI Audio Multiplexer/Demultiplexer - Embed/De-embed Digital Audio Onto SDI Video
- 10 Year Warranty
| Input | SDI Digital Video , SMPTE 259M-C Video, on a 75 ohm BNC connector AES/EBU 110 ohm Balanced Digital Audio , SMPTE 276M, on 3-Pin connectors AES/EBU 75 ohm Unbalanced Digital Audio , SMPTE 272M-C, on a 75 ohm BNC connector |
| Output | SDI Digital Video , SMPTE 259M-C Video, on a 75 ohm BNC connector AES/EBU 110 ohm Balanced Digital Audio , SMPTE 276M, on 3-Pin connectors AES/EBU 75 ohm Unbalanced Digital Audio , SMPTE 272M-C, on a 75 ohm BNC connector |
| Conversion | Multiplexing and demultiplexing of digital audio signal within an SDI digital video signal |
| Control | Dip Switches: Encode/Decode 20 or 24 Bit Audio Remove 12/34 Rotary Switch: 1 to 4 Audio Channel Selection |
| Power Source | Power derived from rack frame |
| Dimensions (WxDxH) | Designed to fit into 1000 Series Rack Frame or 7200 Single Card Frame |
| Weight | Less than 1 lb |
| Packaging Info | |
|---|---|
| Package Weight | 4.0 lb |
| Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
