Description
- 16x1 HD/SD-SDI Switching
- Modular and Upgradeable
- Multiple Control Options
- Analog Black or Tri Level Reference
- Rackmountable

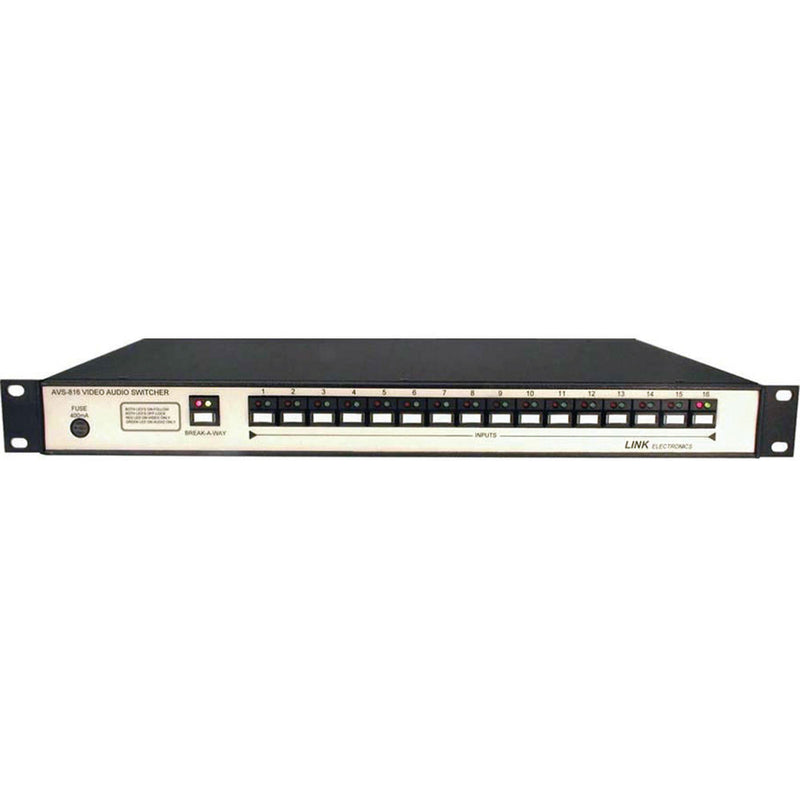

The AVS-816/VHD HD/SD-SDI Video Switcher from Link Electronics is an HD/-SD-SDI video-only switcher with (16) inputs and (1) outputs. It features a wide bandwidth vertical interval designed for use in professional video applications. Its modular design allows for a separate audio module to be added for enhanced functionality.
Supported reference types include Analog Black or Tri Level. The unit can be controlled via a serial data feed of RS-232 or RS-422/485, as well as with Windows-based software or a separately available remote control panel.
- This unit offers 16x1 HD/SD-SDI switching
- The device can be controlled via RS-232 or RS-422/485
- Analog Black and Tri Level reference are supported
- It features wide bandwidth vertical interval switching
- This unit occupies 1U in a standard 19" equipment rack
- It can be managed with Windows-based software
In the Box
Link Electronics AVS-816/VA Analog Video Switcher
- Ten-Year Warranty Against Defects in Material & Workmanship
| Inputs | Standard: 270Mbps, 1.4835/1.485Gbps Number: Sixteen (16) Impedance: 75 Ohms, 1% Configuration: Single-Ended, AC Coupled Return Loss: >18dB |
| Outputs | Number: One, Digital Level: 800mV +/-10% Impedance: 75 Ohms, +/-1% Return Loss: >18dB Rise/Fall Time: 1ns +/-250ps Overshoot: <10% of Amplitude Equalization: Automatic up to >30dB Propagation Delay: 10ns Input Cable Length: 750' (250m) maximum |
| Reference | Standard: Analog Blackburst or Tri Level Number: One (1) |
| Power | Input: 120/240VAC +/-10%, 50/60Hz Power: 8VAR |
| Dimensions (HxWxD) | 1.75 x 19 x 8.7" (4.45 x 48.26 x 22.1cm) |
| Weight | 6.8 lbs (3.08kg) |
| Packaging Info | |
|---|---|
| Package Weight | 8.85 lb |
| Box Dimensions (LxWxH) | 20.9 x 19.6 x 7.7" |
