| ₹ 232165.0 includes GST and import duties. | |
| B2B customers can avail ₹ 35405.16 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- DigiFlex Video Management System
The DigiFlex 1261/1061 Analog to SDI Converter with Frame Sync from Link Electronics is a set of paired modules that convert (2) component video inputs to (2) isolated SDI outputs in NTSC or PAL format. This model also includes an integral frame synchronizer.
It uses 10-bit processing and includes an analog black reference input to sync timing of video output. A seven-segment LED display provides a visual reference for signal status. It is designed for use in the DigiFlex video management system.
- Composite to SDI Conversion with DigiFlex
- Use this paired set of modules to convert composite video to SDI video in the DigiFlex video management system.
- NTSC & PAL
- This unit supports both NTSC and PAL formats.
- Genlock
- It features analog genlock to lock signals to a master sync source.
- Frame Synchronizer
- It includes an integral frame synchronizer.
In the Box

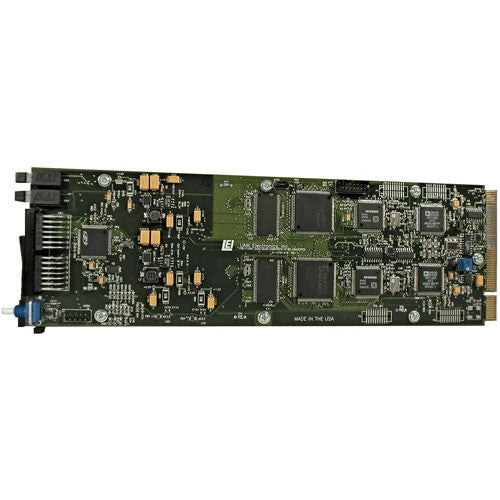

Link Electronics DigiFlex 1261/1061 Analog to SDI Converter with Frame Sync
- Module
- Ten-Year Warranty Against Defects in Material & Workmanship
| Input | Number of Inputs: (2) analog video Connector: 75 Ohm BNC Signal Level: 1V, nominal Impedance: 75 Ohms Return Loss: >40dB up to 10MHz Hot Switch Lock: between 15 to 40 frames |
| Output | Number of Outputs: (2) SDI each channel Standards: NTSC or PAL Connector: 75 Ohm BNC Impedance: 75 Ohm terminated into a 1% load Return Loss: >25db Output Level: 800 mV DC Offset: 0V +/-0.1V Rise Time: 555pS Fall Time: 540pS Low Frequency Jitter: 0.31 UI Alignment Jitter: 0.50 UI |
| Genlock | Signal Type: analog blackburst, high-impedance loop Frequency Lock Range: 20ppm from nominal |
| Power | 6W |
| Dimensions (WxD) | 10 x 4.27" |
| Weight | 7 oz |
| Packaging Info | |
|---|---|
| Package Weight | 3.0 lb |
| Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 227521.7 |
| 3-5 | ₹ 225200.05 |
| 5-10 | ₹ 220556.75 |
| 10+ | ₹ 215913.45 |
Bulk discount will be automatically applied during checkout based on quantity.
