Description

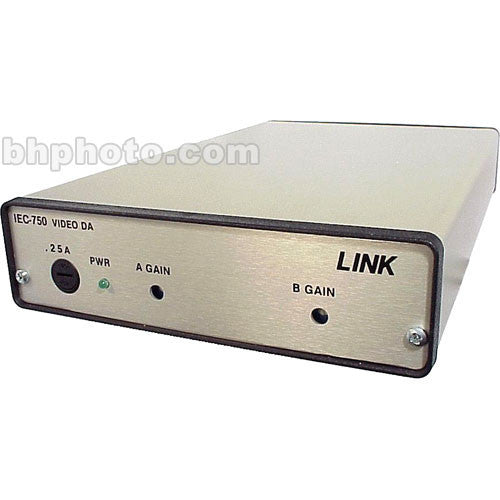

The Link Electronics IEC-750 is a 1x8 composite video distribution amplifier; this unit offers the ability to operate as a dual 1x4 amplifier with the push of a rear panel button. It features gain controls and a compact size.
- Differential Input
- A switch on the rear panel lets the user select differential or single ended inputs. This feature allows this unit to operate as a 1x8 DA or a dual 1x4 DA.
- Gain Control
- Gain controls for each bank of four outputs allows the user to adjust video levels to correct parameters.
- Compact Size
- The compact size of the IEC-750 allows the user to mount three units in a one rack unit space.
UPC: 705641990054
In the Box
Link Electronics IEC-750 1x8 Distribution Amplifier - Composite Video, Dual 1x4 Configuration, Gain Control
- 10 Year Warranty
| Input | Composite Video x2 , 1 Vpp @ 75 ohms On one BNC connector |
| Output | Composite Video x8 , 1 Vpp @ 75 ohms On eight BNC connectors |
| Video Bandwidth | 20 MHz |
| Video Signal-to-Noise Ratio | 60 dB |
| Differential Phase | 0.12� |
| Differential Gain | 0.15% |
| Video Control | Front Panel Trimmers A Side Gain B Side Gain Rear Panel Button |
| Coupling | DC Servo AC |
| Dimensions (WxDxH) | 5.5 x 9.25 x 1.0" 13.97 x 23.5 x 2.5cm |
| Weight | 2.25 lbs 1.02 kg |
| Power Source | 120 to 240 VAC @ 50/60 Hz |
| Packaging Info | |
|---|---|
| Package Weight | 2.35 lb |
| Box Dimensions (LxWxH) | 12.75 x 6.0 x 1.7" |
