Description
- HDMI Video/Audio Transmitter & Receiver
- Transmission over Single Cat-6 Cable
- Supports a Resolution of 1920 x 1200
- Extends Signals up to 500' (152m)
- HDCP Encrypted Transmission
- Supports Dolby TrueHD & DTS-HD
- Universal 5 VDC Power Supply
- LED Status Indicators

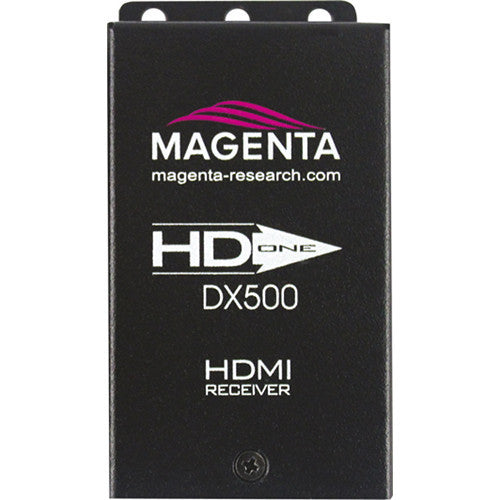

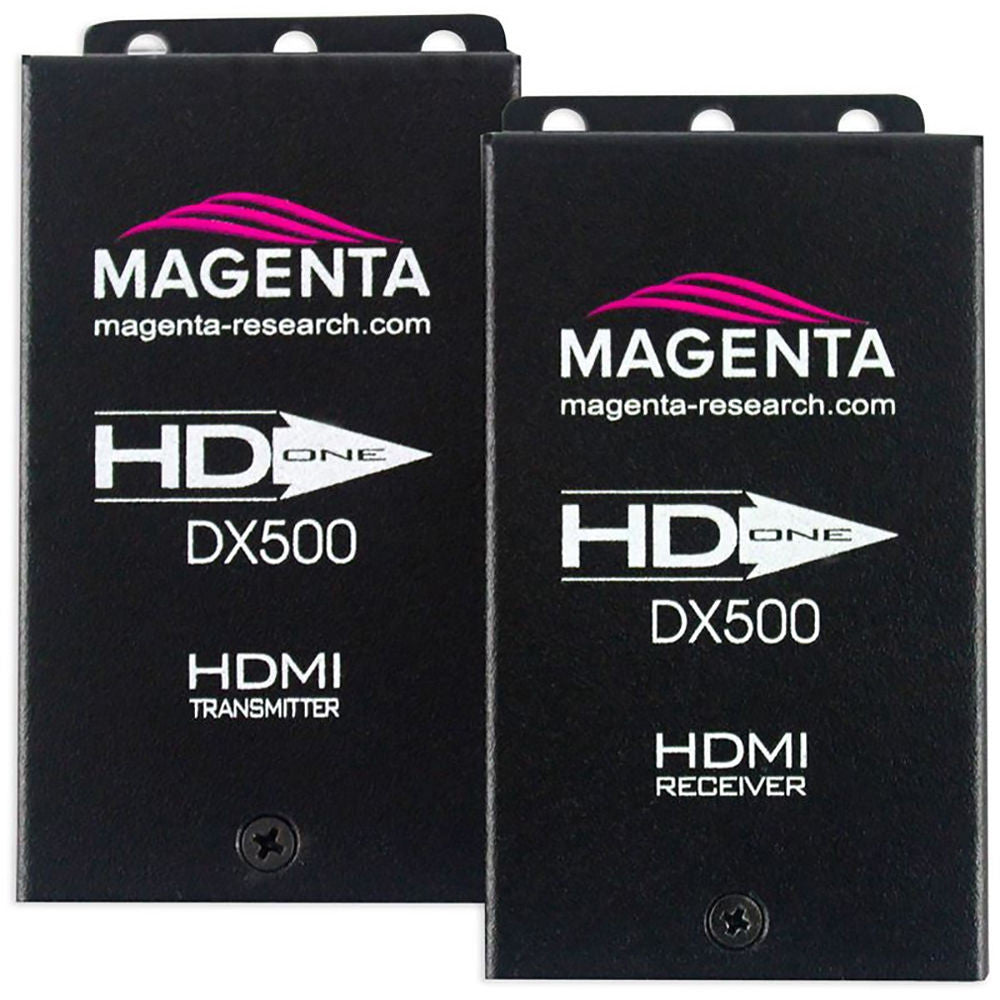

You can add greater distance between your high-definition A/V source and display with the HD-One DX-500 HDMI Extender Kit from Magenta Research . This kit consists of a transmitter and receiver unit, and 5 VDC universal power supplies for each unit. The transmitter and receiver units can be placed up to 500� apart and connected via a Cat-6 cable (sold separately) to transfer high-definition video and audio signals.
The extender supports video resolutions up to WUXGA (1920 x 1200) at 60 Hz, so you need not worry about compromised video quality. In addition, even the audio quality is preserved since the extender offers support for Dolby TrueHD and DTS-HD Master Audio.
For safe video/audio transmission that is protected from unwanted access, the extender supports HDCP encryption. Further, with improved heat dissipation, low power consumption, and appreciable resistance to emissions and interference, this extender provides noise-free transmission and is also environmentally friendly.
Note: The transmitter and receiver units do not feature daisy chain capability.
The extender also supports other category cables, but Cat-6 is recommended. For the types of supported cables, please refer to the specifications.
- Consists of a transmitter and receiver unit, and 5 VDC power supplies for both units
- Extends uncompressed HD video (1920x1200 @ 60Hz) up to 500' (152m)
- Supports embedded HDMI audio, including Dolby TrueHD and DTS-HD Master Audio
- HDMI 1.4 and HDCP compliant
- Works over a single Cat-5e, Cat-6, Cat-6e, Cat-7 UTP, STP, or FTP cable
- Single UTP cable (sold separately) transfers video, audio, and HDCP signals
- LED indicators for video status, data link, and power on both transmitter and receiver units
- Integrated mounting flange
- Tolerances designed for commercial environments
- Typical applications include museums; large retail environments; high-end security, education, and residential environments; digital signage, wayfinding installations; and home theater

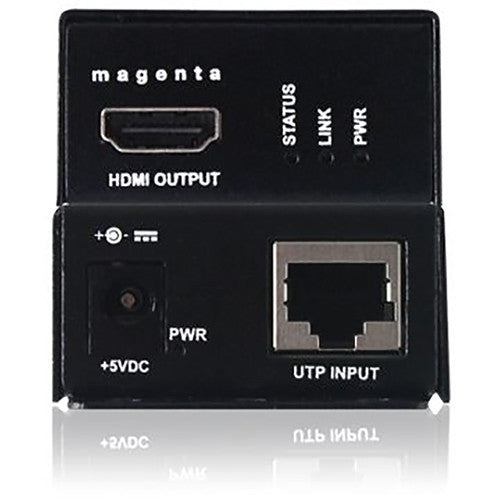

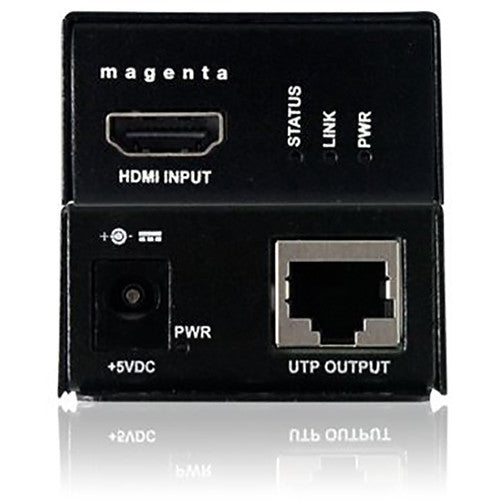

| Connectors | |
|---|---|
| Video In | Transmitter & Receiver: HDMI Type A |
| Audio In/Out | Embedded with video signal |
| Power | Transmitter/Receiver: 1 x DC power |
| UTP In/Out | RJ45 Connector |
| General | |
|---|---|
| Video Supported | HDMI 1.4, HDCP compliant DVI video modes Standard formats @ 60 Hz: 640 x 480, 800 x 600, 1024 x 768, 1152 x 864, 1280 x 768, 1280 x 960, 1280 x 1024, 1360 x 760, 1366 x 768, 1600 x 1200,1680 x 1050, 1920 x 1080, 1920 x 1200 HDTV: 480p, 720p, 1080i, and 1080p |
| Resolution | WUXGA 1920 x 1200 @ 60 Hz Note: To achieve maximum resolution and/or distance, it is strongly recommended that you use standard network Cat-6 or better cable with a solid 24 AWG copper wire. The use of lower quality cables will lower overall performance. Please contact Magenta for cable recommendations. |
| Audio Support | HDMI 1.3 Audio: SPDIF 2-channel PCM or 5.1, 6.1 Dolby Digital or DTS |
| Transmission Distance | 500' (152 m) Note: To achieve maximum resolution and/or distance, it is strongly recommended that you use standard network Cat-6 or better cable with a solid 24 AWG copper wire. The use of lower quality cables will lower overall performance. Please contact Magenta for cable recommendations. |
| Bandwidth | 3.4 Gb/s |
| Cables Supported | Cat-5e, Cat-6, Cat-6a, Cat-6e, Cat-7 UTP, STP, or FTP (Cat-6 or better is recommended) Note: For best performance, use one continuous UTP / STP or FTP cable with as few breaks as possible (i.e., patch bays, wall plates, or floor boxes). Magenta recommends mounting and connecting all cables to the HD-One DX500 Series components before applying power. Make sure that the Category cable you intend to use has been tested to comply with the T568B wiring specification. Magenta recommends that all Category cables be pre-terminated and tested. Cables terminated on-site or in an existing infrastructure should be tested before use to ensure compliance with the TIA-EIA T568B specification. Using incorrectly terminated category cables can damage the extender units. |
| Enclosure | Metal |
| Indicators | Video status, data link, power |
| Compliance | RoHS, CE, FCC Class A |
| Power Requirements | Each Unit: 5 VDC @ 2.6 A maximum |
| Power Consumption | 1,200 mA maximum |
| Temperature Tolerance | Operating: 32 to 131°F (0 to 55°C) Storage: -4 to 185°F (-20 to 85°C) |
| Humidity Tolerance | Up to 95% non-condensing |
| Dimensions | Each Unit: 3.2 x 1.9 x 1.0" (82.0 x 48.6 x 24.8 mm) |
| Weight | Each Unit: 0.30 lb (0.14 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.2 lb |
| Box Dimensions (LxWxH) | 9.5 x 8.1 x 2.7" |
- HDMI Video & Audio Transmitter Unit
- Receiver Unit
- 2 x Universal Power Supply Unit
- Limited 3-Year Warranty
