- Multiple Format Support
- Fiber to 3G-SDI
- Compact Design

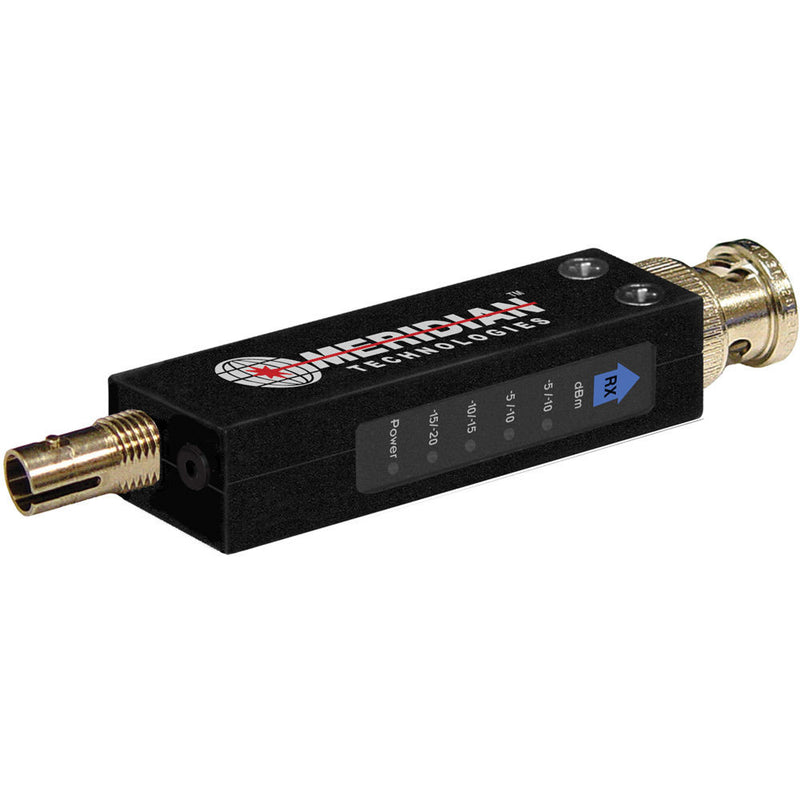

The Meridian Technologies MR-HG-3FC Digitally Encoded Multi-rate 3G-SDI Receiver is a reliable, cost effective digital video converter that receives fiber optic signals and decodes them to 3G-SDI. This module has the ability to receive (1) signal using the SM (Singlemode) fiber optic connector and is compatible with HD-SDI signals as well.
Features include real-time uncompressed reception for up to more than 18 miles (30km) with support for multiple SMPTE formats. The small size can easily fit on the back of a camera. The system is ideal for a wide variety of video applications, including remote broadcast camera links, sporting events, media feeds, video production studios, and military information displays.
- Reception of multi-rate 3G-SDI and HD-SDI (19 Mbps to 2.97 Gbps).
- Receives real-time, uncompressed video transmissions over fiber optical cable.
- Supports both singlemode and multimode fiber.
- Error-free pathological pattern performance.
- Supports embedded audio and metadata.
- Range in excess of 18.6 miles (30km).
- 5VDC Power Pack or USB hub.
- Wide dynamic range eliminates the need for optical attenuators.
- Optional rack mount card unit.
- Available with ST and FC optical connectors.
- Requires no user adjustments.
- CWDM lasers available for 16-channel MUX over one fiber.
- LED Indicators for:
-
- Power
- Rx Optical Power
- Tx Video Signal Present
- Laser Over Current
- Supports The Following Formats:
-
- 19.4 Mbps (SMPTE 310M)
- 143 To 540 Mbps SMPTE 259M/344M
- 1.5Gbps SMPTE 292M HDTV
- DVB/ASI at 270 Mbps
- 2.97 Gbps (3G) SMPTE 424M
- SMPTE 305M SDTI Rates
In the Box
Meridian Technologies MR-HG-3FC Digitally Encoded Multi-rate 3G-SDI Receiver
| Format | NTSC |
| Bandwidth | 19Mbps-3Gbps |
| Return Loss | >15dB |
| Inputs/Outputs | 3G-SDI: BNC (x1 Output)
ST, FC: SM Optical (x1 Input) |
| Operating Temperature | - 13-329.4�F ( - 25-60�C) |
| Storage Temperature | - 67-185�F ( - 55-85�C) |
| Power Requirements | 5VDC |
| Power Consumption | 500mW |
| Dimensions (LxWxH) | 3 x 0.8 x 6" (7.6 x 1.9 x 1.5cm) |
| Weight | 1.5oz (42 g) |
| Packaging Info |
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
