Description
MuxLab 500830-V2 Overview

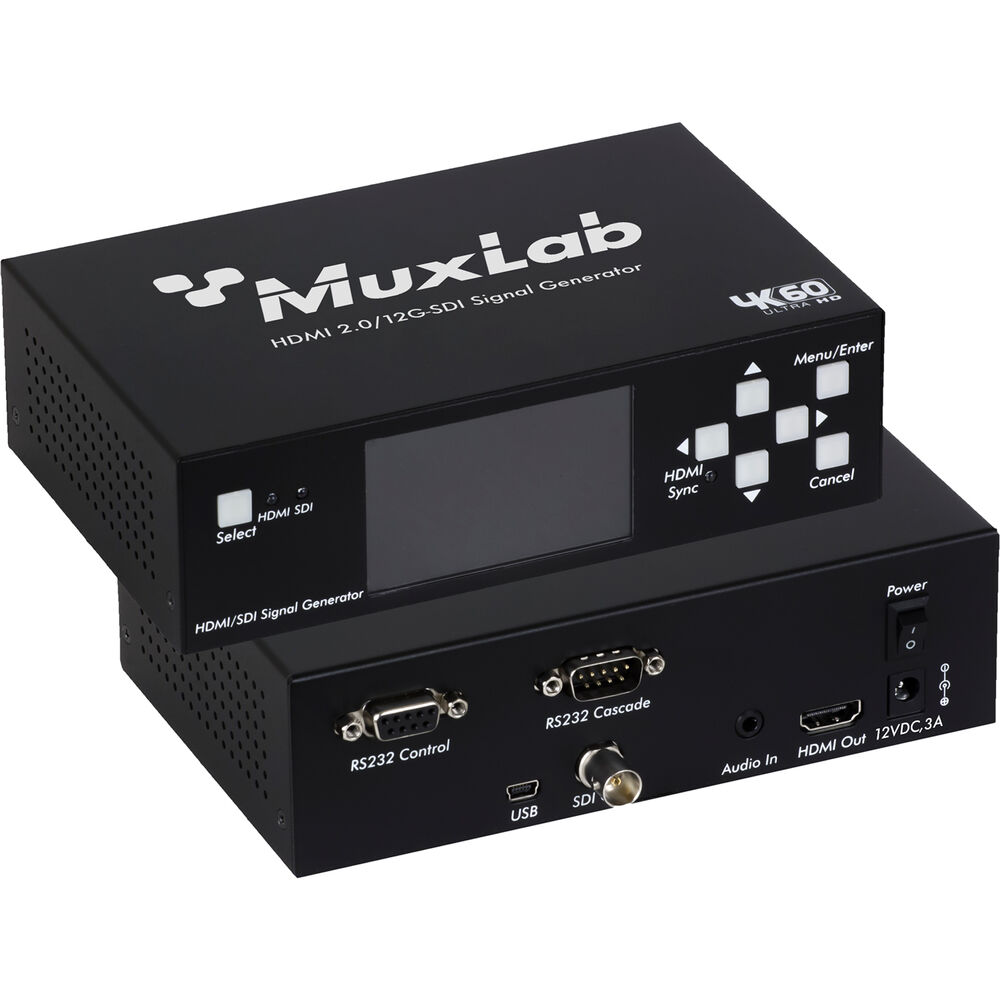

Generate test signals for your SDI or HDMI equipment with the HDMI 2.0/12G-SDI Signal Generator V2 from MuxLab. The generator provides 37 test patterns, refresh rates, different color spaces, and a variety of preset resolutions up to 4K60 4:4:4 over 12G-SDI and HDMI 2.0 connections. It is designed for engineers, installers, IT data centers, and integrators.
Other features include a 3" LCD panel to preview and configure patterns, HDCP and EDID management support, 10 configurable presets, 3.5mm analog audio input, and support for RGB and YUV color spaces. The unit can be configured using free management software via USB or using the RS-232 serial port. To create a full signal test environment, the generator works in conjunction with the separately available Signal Analyzer 500831 to add connectivity and quality tests to your setup.
- Supports HDMI up to 4K60, 3D, and 12G-SDI
- Supports RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0, and Deep Color
- Supports 37 preset patterns and 43 preset resolutions
- 3" LCD panel for pattern preview and menu settings
- Supports up to 7 audio channels
- Supports HDCP on/off, for testing HDCP 1.4 and 2.3
- Supports EDID management
- Locally or remotely managed via RS-232 or USB
- Free Windows management software
- Broadcast studios
- Television studios
- IT departments
- Datacenters
- AV testing environments
Items Included
- MuxLab HDMI 2.0/12G-SDI Signal Generator V2
- Limited 2-Year Manufacturer Warranty
Additional Resources
MuxLab 500830-V2 Specs
| Compatibility |
MuxLab Signal Analyzer 500831
|
| USB I/O |
1 x Mini-USB 2.0 Female Input
|
| Video I/O |
1x HDMI Output
1x BNC (12G-SDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm Input
|
| Other I/O |
1 x DB9, RS-232 Input
1 x DB9, RS-232 Output |
| Display |
3" LCD
|
| Wireless |
Yes
|
| Global Positioning (GPS, GLONASS, etc.) |
Yes
|
| Power Source |
AC Input
|
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz at 3 A
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Certifications |
FCC, CE, RoHS
|
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 95% Humidity
|
| Storage Conditions |
-4 to 185°F / -20 to 85°C up to 95% Humidity
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
6.7 x 4.3 x 2" / 170 x 109 x 50 mm
|
| Weight |
2.8 lb / 1.27 kg
|
| Package Weight |
2.815 lb
|
| Box Dimensions (LxWxH) |
12.4 x 8 x 3"
|
