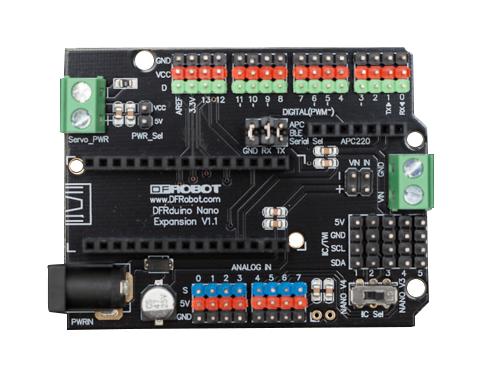

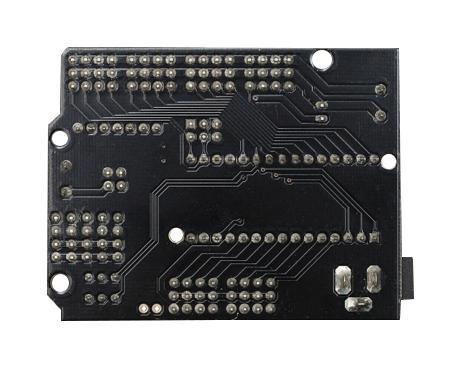

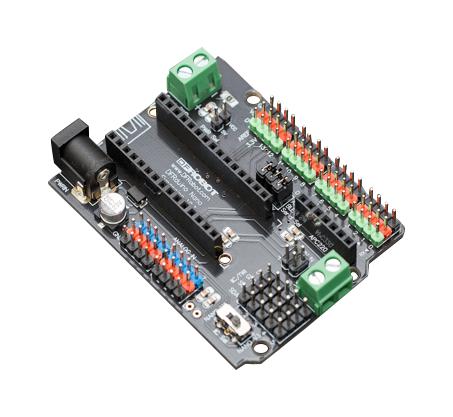

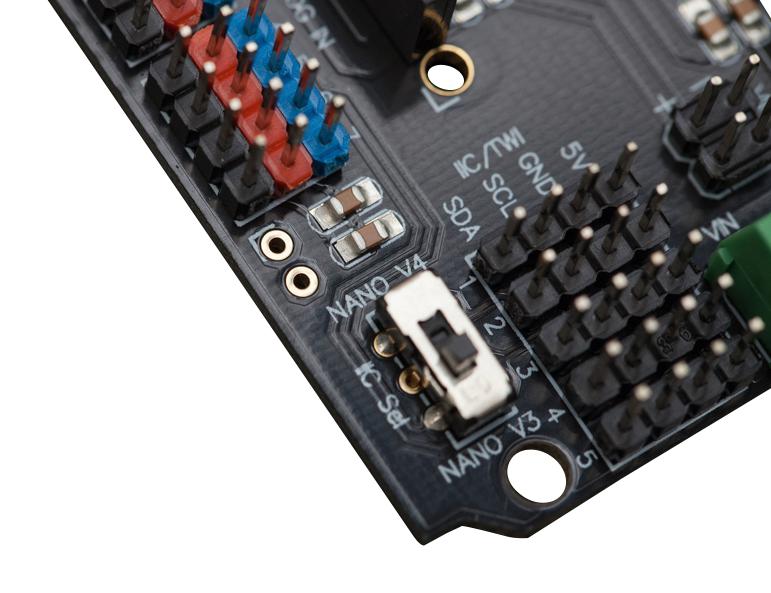

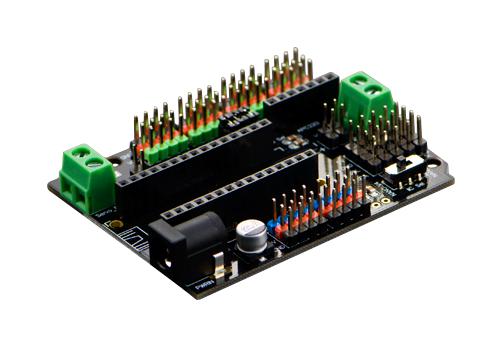

Arduino Nano I/O sensor shield acts as an expansion board for the Arduino Nano and DFRduino Nano microcontrollers. There are several different options for power input. The form factor of the Nano I/O Shield board is the same as the Arduino UNO/Arduino Leonardo. In addition, the sensor shield adopts Gravity interface that each pinout includes 5V and GND pins for easy connection to Gravity sensors or servos. To the best compatibility, the shield supports jumper wires for rapid prototyping. This unit comes fully assembled. The board also has a space specifically for the DFRobot Bluetooth module and ACP220. Several I2C pins are also expanded. The Arduino nano shield has independent power supply to provide extra power for servo and other sensors.
- Power supply: +5 V
- Size: 69x54mm (2.7 x 2.1 in)
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
Arduino Nano, DFRduino Nano V3/V4 and Bluno Nano Boards |
| Kit Contents |
Gravity Nano I/O Shield |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0012 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
