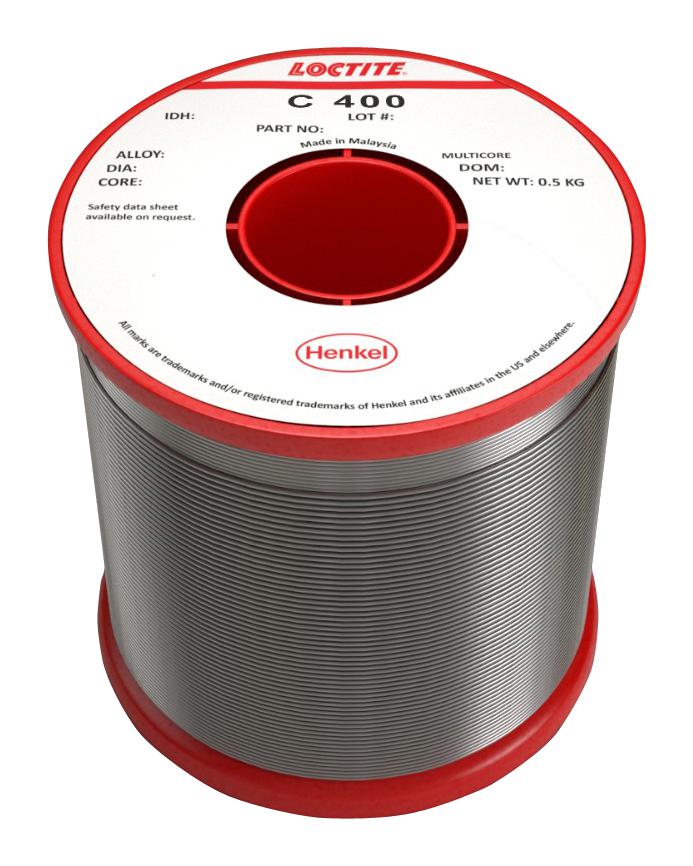

The 609973 is a no clean, clear residue cored Solder Wire designed to give fast and sustained wetting on both copper and brass. Multicore Crystal solid fluxes for cored solder wires have been specially formulated to complement No Clean wave and reflow soldering processes. It is also applicable to repair operations carried out after a cleaning process, eliminating the need for further cleaning. Multicore Crystal 400 is designed for users who require a halide-free formulation while Crystal 500 contains a low level of halide. The remaining products in the range contain higher halide levels to maximise soldering power.
- Halide free version, Crystal 400
- Fast soldering, range of activities to suit all applications
- Good spread on copper, brass and nickel
- Clear residues
- Heat stable, low spitting
- Mild odour
Applications
Maintenance & Repair, Industrial
Product details
| Leaded / Lead Free |
Leaded |
| Flux Type |
Rosin |
| Solder Alloy |
60, 40 Sn, Pb |
| External Diameter - Metric |
0.91mm |
| External Diameter - Imperial |
0.036" |
| Melting Temperature |
183°C |
| Weight - Metric |
500g |
| Weight - Imperial |
1.102lb |
| Product Range |
- |
Other details
| Brand |
MULTICORE / LOCTITE |
| Part Number |
C 400 60EN 5C 0.9MM S 500G |
| Quantity |
Reel of 1 |
| Technical Data Sheet EN |
 |
| Safety Data Sheet EN |
|
