- 20-60x Zoom Eyepiece
- 80mm Objective Lens
- Fully Multicoated Optics
- Nitrogen-Filled Fogproof / Waterproof
- Magnesium-Alloy Housing
- Tripod Mounting Foot
- Rubber Armored Body
- Built-In Sunshield

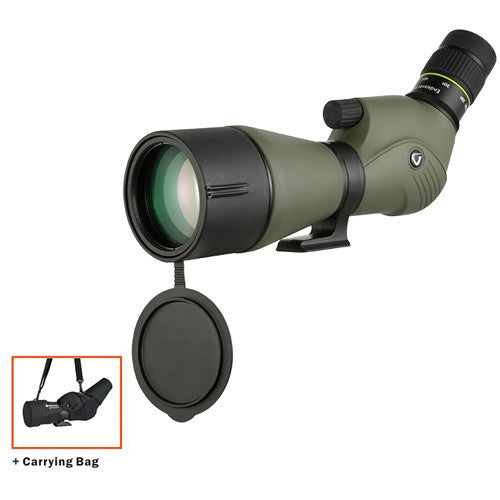

The angled-viewing Endeavor XF 20-60x80 Spotting Scope from Vanguard combines a nitrogen-filled magnesium-alloy housing and a fully multicoated optical path to create a zoom optic that is well suited for intermediate to long-range observation. Vanguard equipped the Endeavor XF series with phase-corrected BAK4 prisms, which maximize color fidelity and produce contrast-rich images.

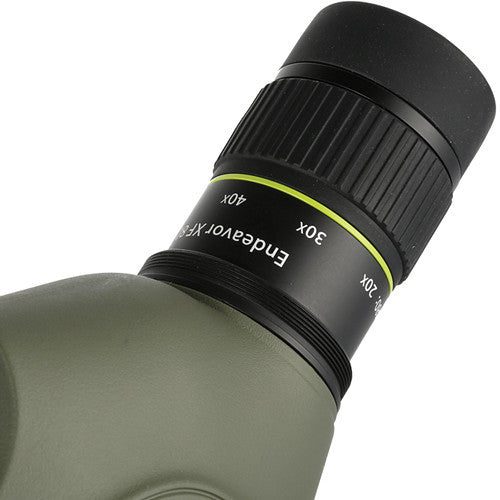

In addition to the image quality and weather-sealed construction, the Endeavor XF includes several features that enhance the scope's functionality. This version of the Endeavor XF spotting scope has a 20-60x zoom eyepiece that features a comfortable 19mm eye relief and twist-up rubber eyecup. The tripod foot has a standard ¼"-20 mount and is compatible with Vanguard tripods that have a universal mounting shoe. An integrated sunshade and flip-down objective cover as well as a custom fit raincoat carrying case help to make the Endeavor XF a well-equipped spotting scope for outdoor use.
- Optical Performance
-
- 20-60x magnification, 80mm objective
- Fully multicoated optics
- Phase-corrected BaK4 prisms
- 2.1-1.0° angle of view
- 20 ft close focus distance (at 20x)
- Use and Handling
-
- Angled view eyepiece is inclined 45° from the objective lens
- Twist-up rubber eyecup
- Tripod mounting foot
- Flip-down objective cover
- Construction Details
-
- Nitrogen-filled fogproof / waterproof housing
- Magnesium-alloy body with rubber armoring
- Built-in sunshield
- 59 oz weight
UPC: 026196343516
| Magnification | 20.0 - 60.0x |
| Objective Lens Diameter | 80 mm |
| Angle of View | 2.1 - 1.0° |
| Field of View | 111 - 51 ft (31.8 - 15.5 m) @ 1000 yards |
| Minimum Focus Distance | - 20x: 20 ft
- 60x: 21.3 ft
|
| Eye Relief | 19 - 20 mm |
| Dimensions | 15.0 x 7.2" (38.0 x 18.2 cm) |
| Weight | 59.2 oz (1680 g) |
| Packaging Info |
| Package Weight | 5.25 lb |
| Box Dimensions (LxWxH) | 15.6 x 7.7 x 5.0" |
In the Box
Vanguard Endeavor XF 20-60x80 Spotting Scope (Angled-Viewing)
- Carrying Case
- Limited Lifetime Warranty
