Description

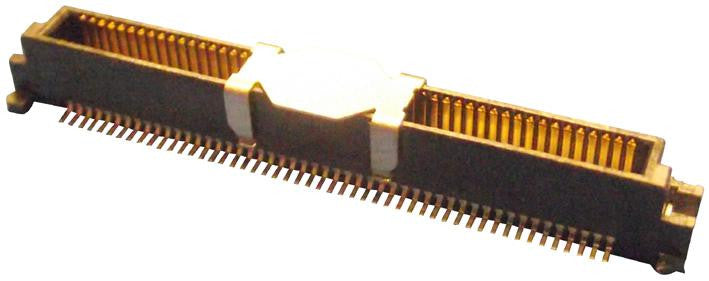

The 55091-1674 from Molex is a 0.635mm pitch dual row, SlimStack header. This header is made of copper alloy material with gold material plating and tin terminal plating. It mates with SlimStack receptacle 52760, 52837, 52885 and 52901.
- Vertical orientation
- 160 circuits (loaded), PCB retention, PCB locator & no breakaway
- Maximum durability of 50 mating cycles
- Robotic placement metal cap
- Surface mount termination interface style
- Operating temperature range from -55�C to +85�C
- Maximum 0.5A current per contact, maximum 100V voltage
- Black colour resin
- UL E29179 certified
- 6mm stacking height, polarized to PCB & non stackable
Applications
Industrial
Product details
| No. of Rows | 2Rows |
| Row Pitch | - |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Pitch Spacing | 0.635mm |
| Contact Termination Type | Surface Mount |
| No. of Contacts | 160Contacts |
| Product Range | SlimStack 55091 Series |
| Gender | Plug |
Other details
| Brand | MOLEX |
| Part Number | 55091-1674 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
