Description

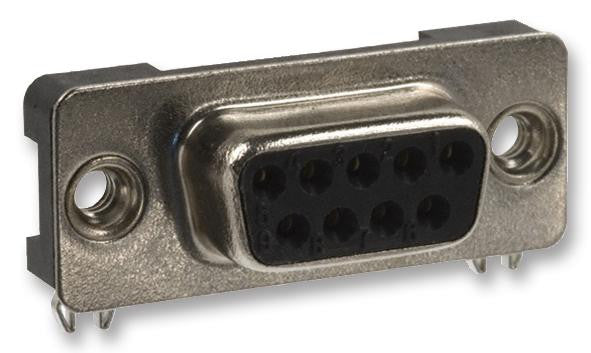

The 190-009-263R001 is a 9-way Female Surface Mount Right Angle D-sub Connector, 190 series, with nickel-plated steel shell gold-plated phosphor bronze contacts, tin-plated solder tail, nickel-plated board locks and nylon 6T insulation. Plug shells have indents to provide grounding and additional retention. Built-in board locks add mechanical stability to PCB.
- Black colour insulator
- High density
- Metal shell for improved shielding
- UL94V-0 Flammability rating
- 5A Current rating
- 300VDC Voltage rating
- 13mR Contact resistance
- >1000mR at 500VDC Insulation resistance
- -55 to +105°C Temperature range
Applications
Industrial
Product details
| No. of Contacts | 9Contacts |
| D Sub Shell Size | DE |
| Gender | Receptacle |
| Product Range | 190 Series |
| Contact Termination Type | Surface Mount |
| Connector Body Material | Steel Body |
Other details
| Brand | NORCOMP |
| Part Number | 190-009-263R001 |
| Quantity | Each |
| Drawing EN |  |
