Ambient Recording Soundfish 1 Overview

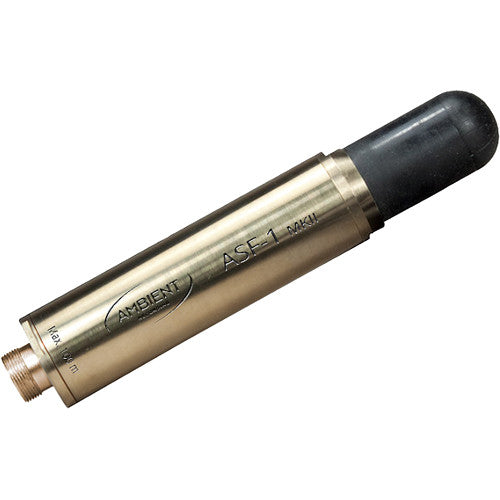

The Sound Fish ASF-1 MKII Hydrophone from Ambient Recording is a hydrophone for underwater recording and designed for use with audio gear supplying 48V phantom power and compatible with an AHS-SX1X0C connector. It is made of aluminum-brass and can withstand water pressure of up to 328.1'. It includes a 32.8' cable with an AHS underwater connector and a case for transport.
Hydrophone with AHS-SX1X0C underwater connector
In the Box
- Ambient Recording Sound Fish ASF-1 MKII Hydrophone with Cable & Transport Case
- Ambient Recording ASF-1 MKII Hydrophone Cable (33')
- Case
Ambient Recording Soundfish 1 Specs
Microphone
Polar Pattern |
Omnidirectional |
Performance
Frequency Range |
7 Hz to 40 kHz |
THD |
0.1% |
Connectivity
Output Connectors (Analog) |
1 x TA4M |
Power
Operating Voltage |
48 V |
Operating Current Consumption |
8 mA |
Physical
Operating Temperature |
27 to 82°F / -5 to 50°C |
Dimensions |
ø: 0.98 x L: 7.09" / ø: 25 x L: 180 mm |
Weight |
0.6 lb / 0.27 kg
|
Packaging Info
Package Weight |
3.95 lb |
Box Dimensions (LxWxH) |
17.6 x 13.3 x 3.8" |
