Description
- NTSC
- Composite BNC
- CC1, CC2, T1, T2
- 12VDC Regulated

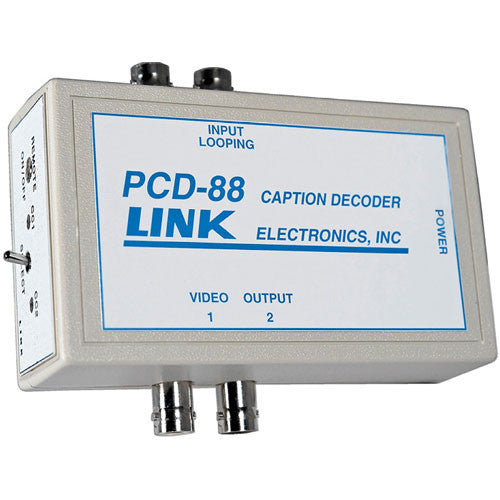

The Link Electronics PCD-88 is a portable closed caption decoder for the NTSC system; data channels and text select are offered for user selection. The required input signal is composite video with caption data on line 21 of field one.
Note: Optional power supply (such as PWT-300) purchased separately
- LED Read Out
- Four LEDs indicate which channel is selected CC1, CC2, T1 or T2.
- Time Out
- An automatic caption "Time Out" function will erase displayed captions after 15 seconds if no new data is received.
- Application
- This device is useful when a monitor without a Closed Caption decoder is used in broadcast monitoring; this device can be mounted close to the monitor because of its compact size.
- Usage
- The input is high impedance looping configured as single ended, AC coupled, to work in all environments. The remaining BNC connector must be terminated with 75?. A regulated 12VDC power supply, such as the Link PWT-300, is included. The PWT-300 operates on AC power from 90 to 240VAC.
UPC: 705641990177
In the Box
Link Electronics PCD-88 Portable Closed Caption Decoder
- Power Supply
- 10-Year Limited Warranty
| Input | Composite Video , looping, 1 Vpp @ 50K ohms, on BNC connectors |
| Output | Composite Video x2 , character video 90 IRE, background video 10 IRE, @ 75 ohms, on BNC connectors |
| Control | Switch Control: CC1/CC2/T1/T2 Internal Control: |
| Power Source | 12VDC from an Optional AC Power Adapter |
| Dimensions | 4.5 x 2.6 x 1.4" (11.4 x 6.6 x 3.5cm) |
| Weight | 5.5 oz (156g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.75 lb |
| Box Dimensions (LxWxH) | 9.1 x 3.8 x 3.3" |
