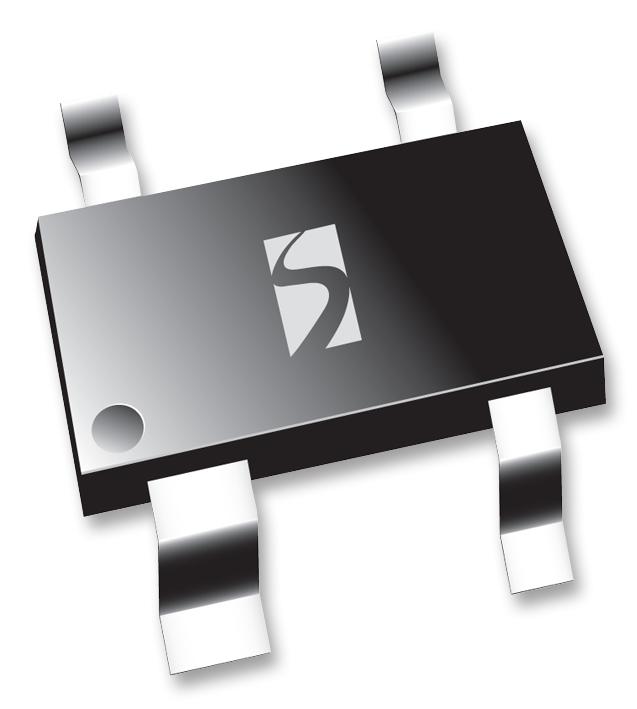

Maxim Integrated Products MAX6804US29D3+T Supervisor Manual Push-Pull 700 mV to 5.5 V Supply 2.93 Threshold 150 ms Delay SOT-143-4

The MAX6804US29D3+T from Maxim Integrated Products is a low power, microprocessor (µP) reset circuit with manual reset in 4 pin SOT-143 package. This low cost µP supervisory circuit monitors the power supplies and digital systems. It increase circuit reliability and reduce cost by eliminating external components and adjustments. They also feature a debounced manual-reset input. IC perform a single function that it assert a reset signal whenever the VCC supply voltage declines below a preset threshold or whenever manual reset is asserted. Reset remains asserted for a preset timeout period after VCC has risen above the reset threshold or after manual reset is deasserted. Typical applications include computers, controllers, intelligent instruments, critical µP/µC power monitoring and portable/battery-powered equipment.

• Supply voltage range from 0.78V to 5.5V (ultra low)
• Operating temperature range from -40°C to +125°C
• Supply Current of 4µA at VCC = 3V, 5µA at VCC = 5V
• Precision monitoring of 2.85V to 5.0V power supply voltages
• Push/pull RESET (active low) output stage
• 2.93V nominal threshold voltage
• 100ms minimum reset timeout
• Debounced manual-reset input, power supply transient immunity
• Fully specified over temperature, no external components required
• Guaranteed RESET (active low) valid to VCC = 0.7V

Applications

System Monitoring, Portable Devices

Other details

Brand	MAXIM INTEGRATED PRODUCTS
Part Number	MAX6804US29D3+T
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
