Description
The MCP101T-450I/TT is a Microcontroller Supervisory Circuit with CMOS push-pull and active-high RESET output. The voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. It will assert the RESET/RESET signal whenever the voltage on the VDD pin is below the trip-point voltage.
- Holds microcontroller in reset until supply voltage reaches stable operating level
- Resets microcontroller during power loss
- Precision monitoring of 3, 3.3 and 5V systems
- 7 Voltage trip points available
- Accuracy of ±125mV for 5V systems and ±75mV for 3V systems over-temperature
- 45µA Typical operating current
Applications
Computers & Computer Peripherals
Product details
| Operating Temperature Min | -40°C |
| Digital IC Case | SOT-23 |
| Threshold Voltage | 4.25V |
| Operating Temperature Max | 85°C |
| Reset Type | Active-High |
| No. of Pins | 3Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| No. of Supervisors / Monitors | 1Monitors |
| Supply Voltage Min | 1V |
| Packaging | Cut Tape |
| Supply Voltage Max | 5.5V |
| Delay Time | 350ms |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP101T-450I/TT |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

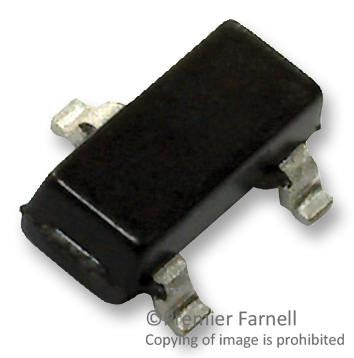

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
