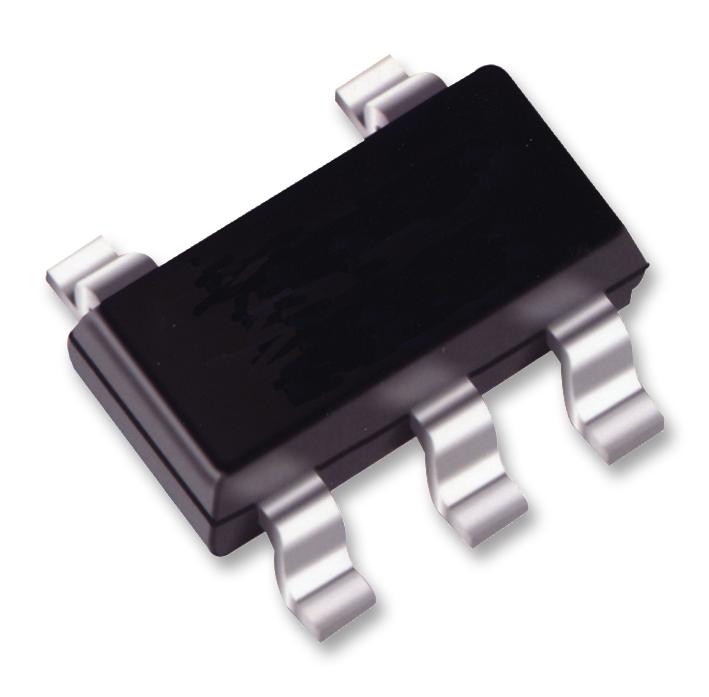

MICROCHIP MCP1320T-29LE/OT Supervisory Circuit, Active-Low Reset, 1V-5.5Vin, SOT-23-5

The MCP1320T-29LE/OT is a Voltage Supervisor designed to keep a microcontroller in Reset until the system voltage has reached and stabilized at the proper level for reliable system operation. These devices also operate as protection from brown-out conditions when the system supply voltage drops below a safe operating level. Some MCP131X/2X family members include a Watchdog Timer feature that after being enabled (by a falling edge on the WDI pin), monitors the WDI pin for falling or rising edges. If an edge transition is not detected within the expected time frame, the MCP131X/2X devices will force the reset pin active. This is useful to ensure that the embedded system's host controller program is operating as expected.

• Low supply current
• Precision monitoring trip point options of 2.0 to 4.7V (100mV increment)
• Resets microcontroller in a power-loss event
• Reset delay timer (1.4, 30, 200 and 1600ms)
• Watchdog timer input (6.3, 102, 1600 and 25600ms)
• Manual reset input (active low)
• Single and complementary reset outputs

Applications

Power Management
