Description
- Compatible with 2/3" 1-1.5MP Cameras
- 50mm Fixed Focal Length
- f/1.8 to 16C Manual Iris
- 13.1° Diagonal Field of View
- C-Mount Connection
- Locking Screws for Focus and Iris

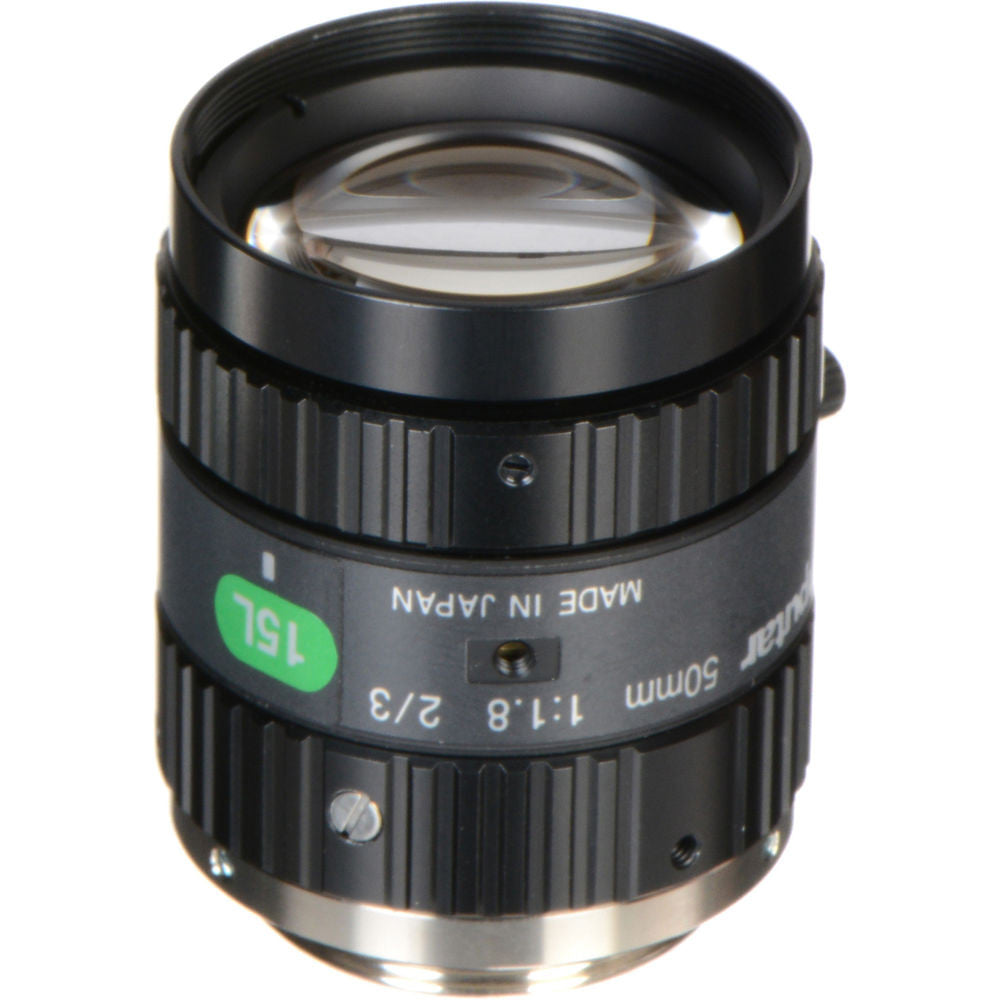

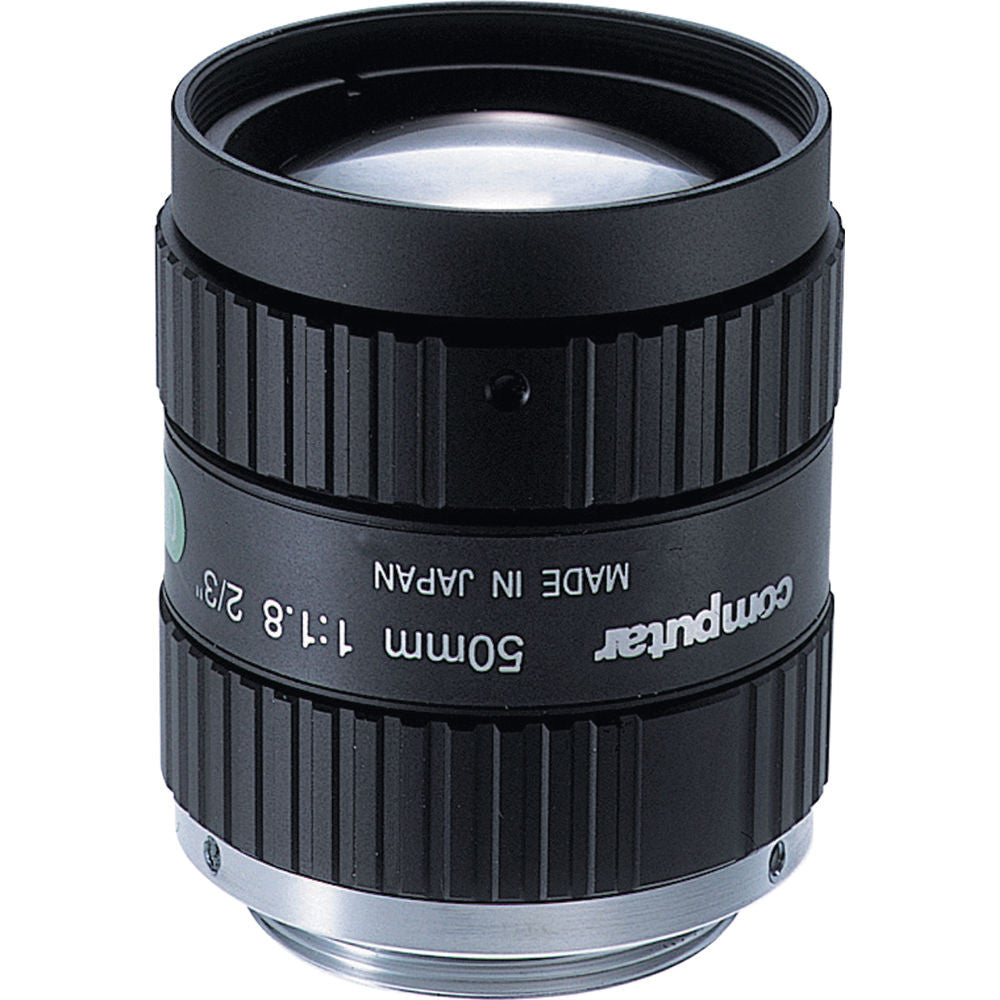

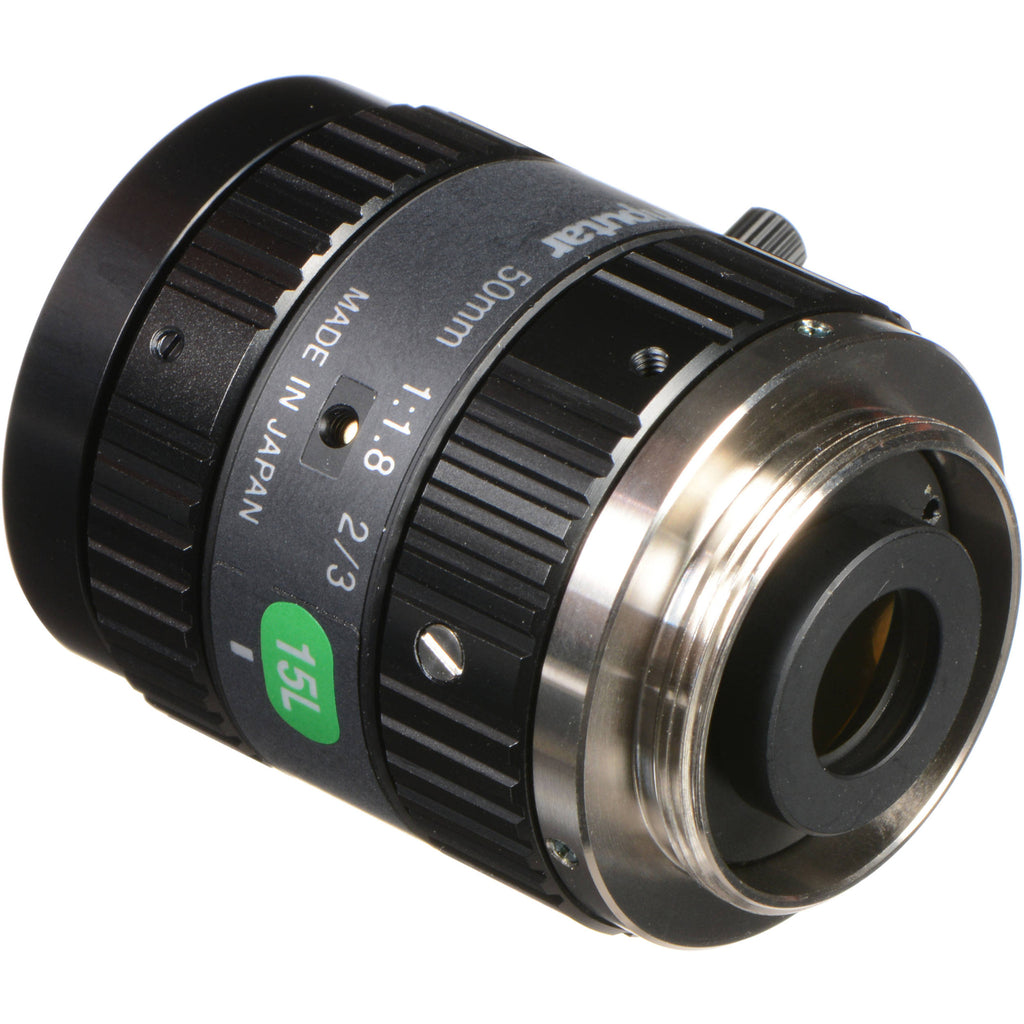

The C-Mount 50mm Fixed Focal Lens from Computar is designed for use in close-up applications such as factory automation and image processing areas. It captures images in 8.8 x 6.6mm (Ø11mm) format, and it features manual zoom and iris control. The lens is compatible with 2/3" 1-1.5MP cameras and uses a C-mount for mounting to your camera.
- Designed for C-mount 1-1.5MP cameras with 2/3" sensors
- Captures the full resolution of megapixel cameras
- Low distortion
- Maximum light intensity, even in peripheral areas
- High contrast and sharp picture in all areas of the screen
- Compact design
- Locking set screws for focus and iris
- Close proximity monitoring for use in close-up applications such as factory automation
UPC: 781904082087
| Focal Length | 50mm |
| Aperture Ratio | 1:1.8 (maximum) |
| Image Format | 8.8 x 6.6 mm (ø11 mm) |
| Operation Range | Iris: f/1.8 to f/16C Focus: 1.64' to infinity (0.5 m to infinity) |
| Control | Iris / Focus: Manual |
| Angle of View | 13.1° (D), 10.5° (H), 7.9° (V) |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Effective Lens Aperture | Front: ø25.5mm Rear: ø9.6mm |
| Distortion | 2/3-Type: -0.3% (y=5.5) |
| Back Focal Length | 13.1mm |
| Flange Back Length | 0.69" (17.526 mm) |
| Mount | C-mount |
| Filter Size | M30.5 P = 0.5 mm |
| Certifications | CE, RoHS |
| Object Dimensions at M.O.D. | 2/3-Type: 3.42 x 2.55" (87 x 65 mm) |
| Dimensions (Ø x L) | ø1.31 x 1.51" (ø33.5 x 38.2 mm) |
| Weight | 2.99 oz (85 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 2.8 x 2.1 x 2.0" |
In the Box
computar C-Mount 50mm Fixed Focal Lens
- Limited 3-Year Warranty
