Description
- Compatible with 1/3" Cameras
- 1.8-3.6mm Focal Length
- 173.8 to 99° Diagonal FOV
- f/1.6 to 16C Manual Iris
- CS-Mount Connection
- Locking Set Screws & Metal Barrel

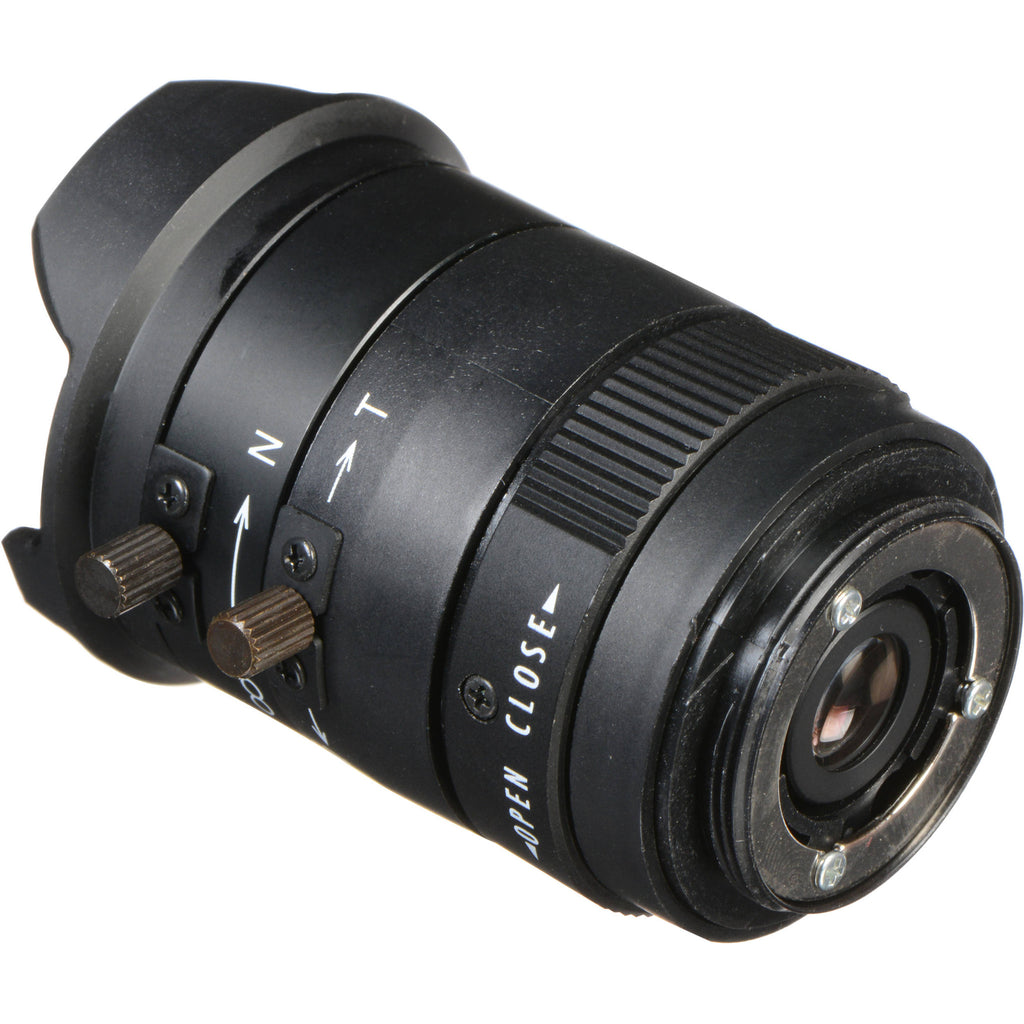

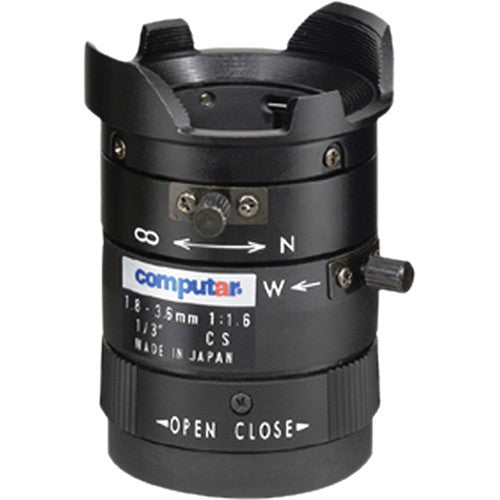

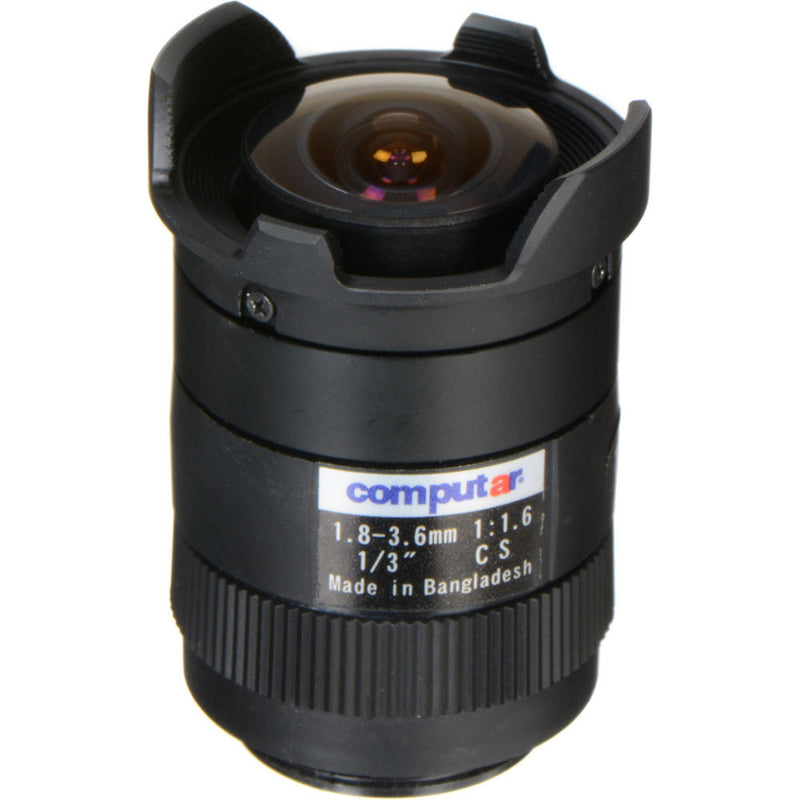

The CS-Mount 1.8-3.6mm Varifocal Lens from Computar captures images in 4.8 x 3.6mm (Ø6mm) format, and it features manual zoom and iris control. The lens is compatible with 1/3" cameras and uses a CS-mount for mounting to your camera.
- Compatible with CS-mount cameras with 1/3" sensors
- 1.8-3.6mm focal length to clearly capture scenes requiring different focal settings
- Aperture of f/1.6 to 16C enables use in low light as well as brightly lit conditions
- Easy focal length adjustments
- Manual iris for correct exposures
- Built-in locking mechanisms for focus and iris and metal barrel and mount
UPC: 781904300303
| Focal Length | 1.8-3.6mm |
| Maximum Aperture Ratio | 1:1.6 (maximum) |
| Image Format | Max: 4.8 x 3.6 mm (ø6 mm) |
| Operation Range | Iris: f/1.6 to 16C Focus: 0.7' (0.2 m) to infinity Zoom: 1.8 to 3.6 mm |
| Control | Iris / Focus / Zoom: Manual |
| Angle of View | 173.8 to 99° (D), 144.2 to 79.4° (H), 109.9 to 59.6° (V) |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Effective Lens Aperture | Front: ø22.0mm Rear: ø7.9mm |
| Back Focal Length | Tele: 10.5mm Wide: 7.0mm |
| Flange Back Length | 0.49" (12.5 mm) |
| Mount | CS-mount |
| Object Dimensions at M.O.D. | 1.8 mm: 48.7 x 22.2" (123.8 x 56.5 cm) 3.6 mm: 13.1 x 9.0" (33.2 x 22.9 cm) |
| Dimensions | 1.5 x 2.0" (37.4 x 51 mm) |
| Weight | 2.4 oz (68 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.2 lb |
| Box Dimensions (LxWxH) | 2.0 x 1.47 x 1.47" |
In the Box
computar CS-Mount 1.8-3.6mm Varifocal Lens
- Limited 3-Year Warranty
