Description
- Compatible with C-Mount MP Cameras
- For 2/3" Format Sensors
- 12mm Fixed Focal Length
- Aperture f/1.4 to 16C
- Focus 0.15m to Infinity
- Manual Focus & Iris
- Locking Set Screws for Focus & Iris
- Convenient Compact Design

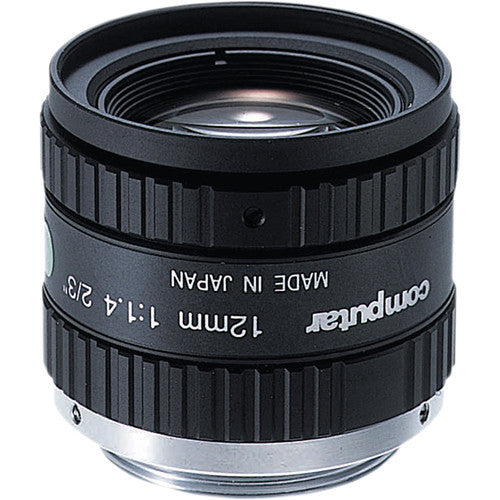

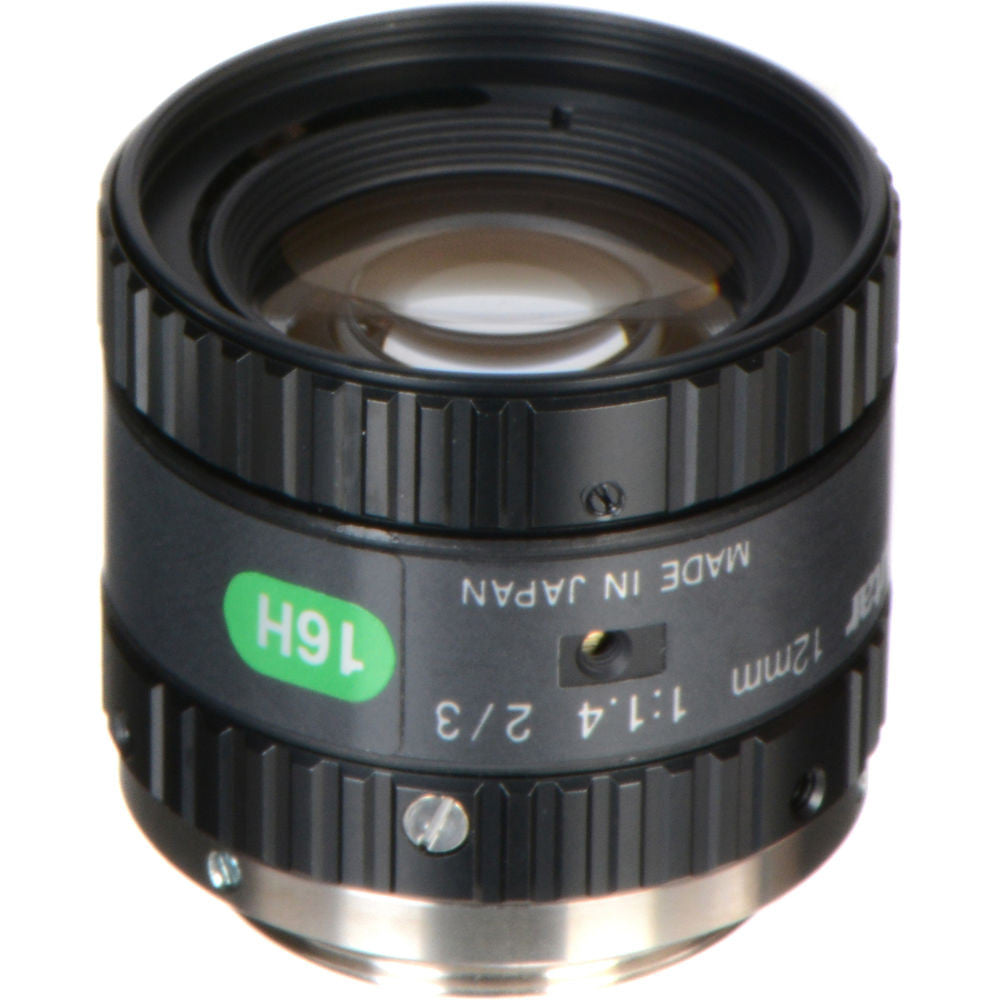

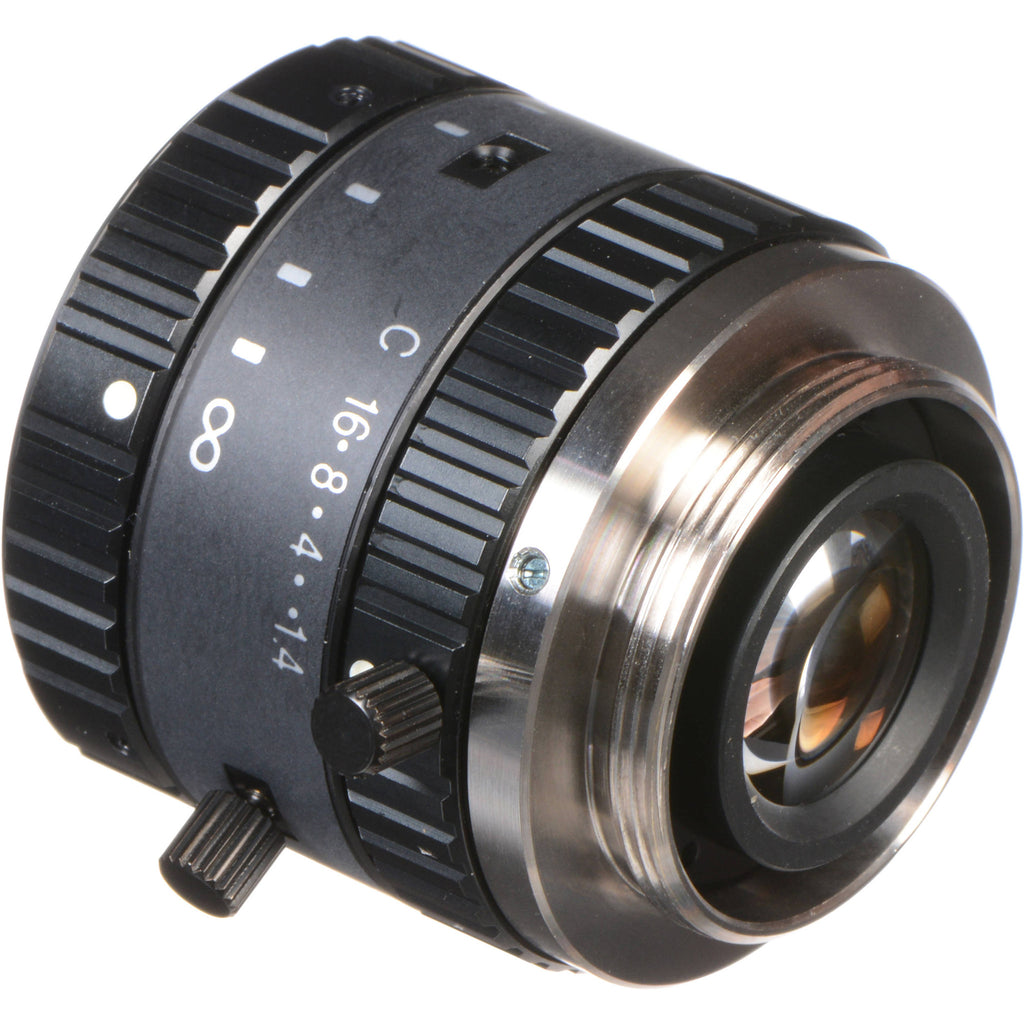

The M1214-MP2 2/3" Fixed Lens from Computar is designed for monitoring factory automation and image processing units. It features a 12mm focal length, and is compatible with C-mount megapixel cameras that have 2/3� format sensors. The lens facilitates easy focal length adjustments without having to move the camera from its installation point. Moreover, with an aperture of f/1.4 to 16C, the lens is suitable for surveillance in low light as well as brightly lit conditions. There is a manual iris and focus with locking set screws for holding them in place.
- Designed for C-mount megapixel cameras with 2/3" sensors
- Aperture of f/1.4 to 16C provides enhanced performance in low light as well as brightly lit conditions
- Manual iris for correct exposures
- Low distortion and maximum light intensity, even in peripheral areas
- Locking set screws for focus and iris
- Compact design at 1.32 x 1.11" (Ø33.5 x 28.2mm)
- Captures images at the full resolution of megapixel cameras
- High-contrast and sharp picture in all areas of the screen
UPC: 781904082117
| Focal Length | 12mm |
| Aperture Ratio | 1:1.4 (maximum) |
| Image Format | 8.8 x 6.6 mm (Ø11 mm) |
| Operation Range | Iris: f/1.4 to 16C Focus: 0.49' / 0.15 m to infinity |
| Control | Iris: Manual Focus: Manual |
| Angle of View | 2/3-Type: 49.2° (D), 40.4° (H), 30.8° (V) |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Effective Lens Aperture | Front: Ø21.0 mm Rear: Ø13.0 mm |
| Distortion | 2/3-Type: -0.1% (y = 5.5) |
| Back Focal Length | 0.51" (13.1mm) |
| Flange Back Length | 0.69" (17.526 mm) |
| Mount | C-mount |
| Filter Size | M30.5 P = 0.5 mm |
| Object Dimensions at M.O.D. | 2/3-Type: 4.7 x 3.5" (12.1 x 9 cm) |
| Dimensions (Ø x L) | Ø1.3 x 1.1" (Ø33.5 x 28.2 mm) |
| Weight | 2.2 oz (61.9 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.2 lb |
| Box Dimensions (LxWxH) | 2.8 x 2.0 x 2.0" |
In the Box
computar M1214-MP2 2/3" Fixed Lens (12mm)
- Limited 3-Year Warranty
