Description
Dahua Technology X51C2E Overview
Record video from any combination of HD-CVI, HD-TVI, AHD, CVBS, or IP cameras with the Pro Series X51C2E4 8-Channel 1080p Pentabrid HD-CVI Mini DVR with 4TB HDD from Dahua Technology. This DVR allows users to record from up to eight analog cameras via BNC inputs and up to four IP camera inputs at resolutions up to 6MP. Equipped with a SATA port, this recorder can support up to 10TB of internal storage (4TB HDD preinstalled). Smart H.265+/H.264+ and H.265/H.264 video codecs minimize file size while ensuring high-quality recording and playback.
This recorder has an RJ45 network interface and supports up to 128 users. It is compatible with iOS and Android. HDMI and VGA video outputs allows users to view footage on a monitor (available separately). ONVIF 16.12 compliance enables interoperability with a wide range of surveillance devices.
Perimeter protection and smart motion detection with human/vehicle object classification
Embedded processor and Linux OS
Pentabrid technology enables simultaneous recording from HD-CVI, AHD, HD-TVI, CVBS, and IP sources
Long-distance transmission up to 3937'
Auto-detect and auto-configuration of HD-CVI, AHD, HD-TVI, and CVBS inputs
RS-485 port for PTZ Control
Compatible with iOS and Android
Supports cameras from Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
UPC: 810053972410

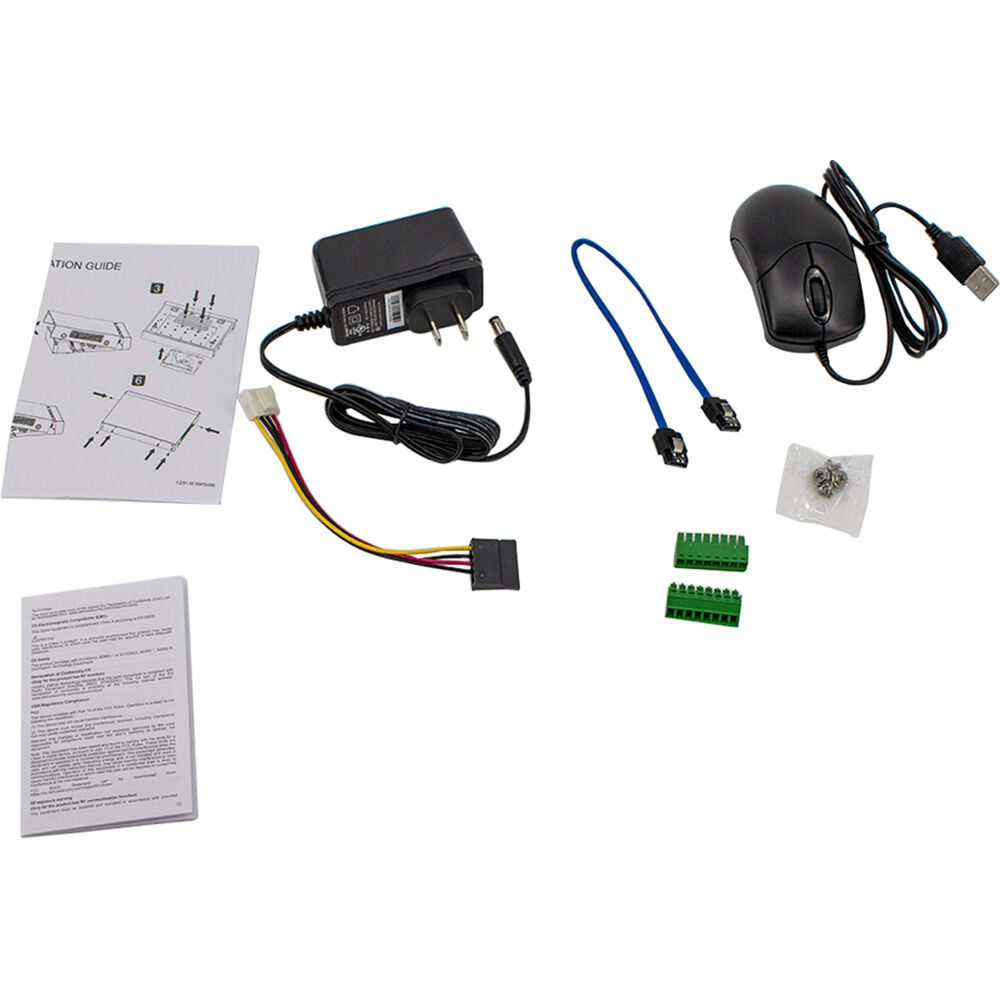

Items Included
- Dahua Technology Pro Series X51C2E4 8-Channel 1080p Pentabrid HD-CVI Mini DVR with 4TB HDD
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Dahua Technology X51C2E Specs
Key Specs
| Number of Channels |
8
|
| Recording Resolution |
5M-N at 10 fps
1080p, 4M-N at 15 fps 1080N, 720p, 960H, CIF, D1 at 30 fps |
| IP Camera Support |
4
|
| 2-Way Audio |
Yes
|

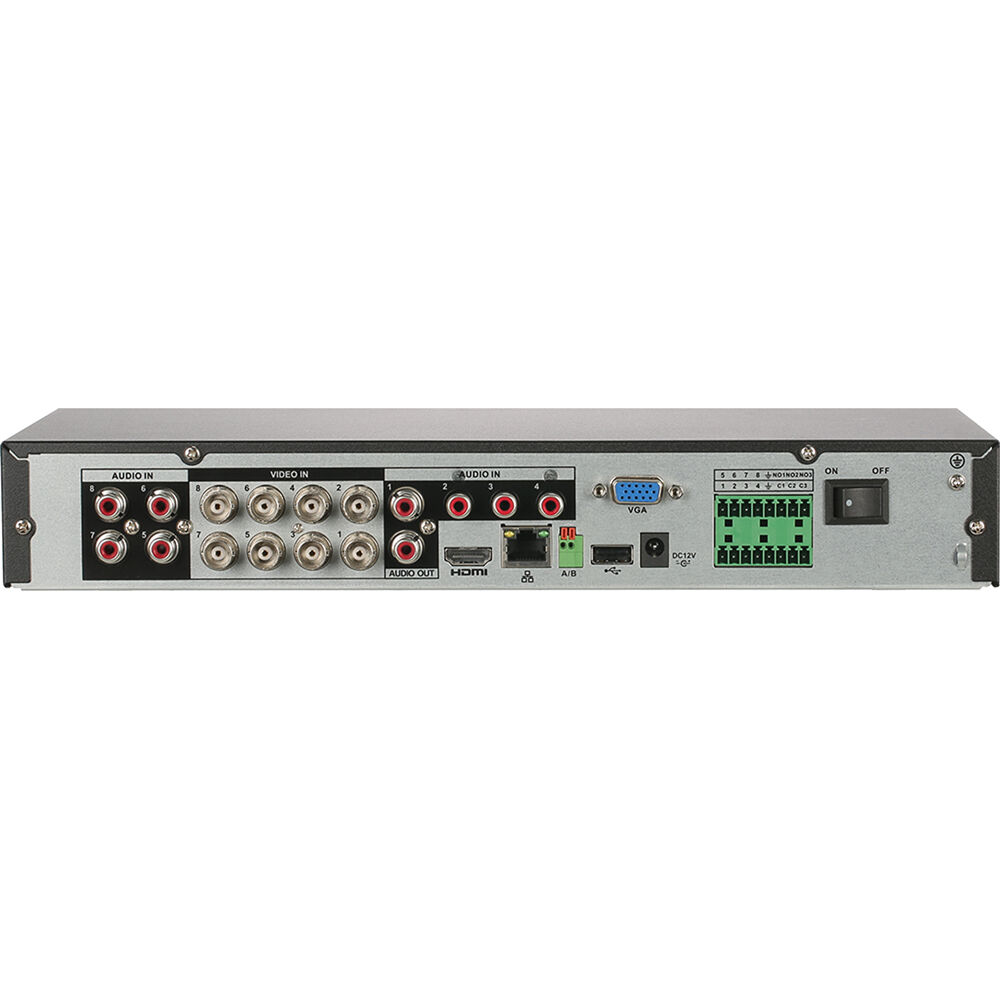

| Audio/Video I/O |
AHD, Analog, CVBS, HD-CVI, HD-TVI: 8 x BNC Input
1 x HDMI Output 1 x VGA Output 8 x RCA Audio Input 1 x RCA Output |
| Communication I/O |
1x RJ45 10/100 Mb/s Ethernet
1x RS-485 2x USB-A 2.0 |
| Audio I/O |
8x Input
1x Output |
| Maximum User Access |
128
|
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+
|
| Installed Drive |
4 TB Hard Drive
|
| Recording Modes |
Alarm, Continuous, Manual, Motion, Schedule, Stop, Tampering, Video Loss
|
| Power Consumption |
12 VDC at 2 A (7 W)
|
General
| Signal |
AHD, Analog, HD-CVI, HD-TVI, IP
|
| Number of Channels |
8
|
| Playback Resolution |
AHD, HD-TVI, HD-CVI:
720p, 1080p, 5 MP, 4 MP CVBS: NTSC IP: 6 MP |
| Recording Resolution |
5M-N at 10 fps
1080p, 4M-N at 15 fps 1080N, 720p, 960H, CIF, D1 at 30 fps |
| PTZ Support |
Yes
|
| Bit Rate |
32 kb/s to 6144 kb/s (Each Channel)
|
| IP Camera Support |
4
|
| Dual Streaming |
Yes
|
| Decoding Resolution |
8 Channels:
5M-N at 10 fps 4M-N at 15 fps 720p at 30 fps 4 Channels: 5M-N at 20 fps 4M-N at 30 fps 1 Channel: 6 MP at 30 fps |
| 2-Way Audio |
Yes
|
| Maximum Sampling Rate |
8 kHz / 16-Bit
|
Connectivity
| Audio/Video I/O |
AHD, Analog, CVBS, HD-CVI, HD-TVI: 8 x BNC Input
1 x HDMI Output 1 x VGA Output 8 x RCA Audio Input 1 x RCA Output |
| Communication I/O |
1x RJ45 10/100 Mb/s Ethernet
1x RS-485 2x USB-A 2.0 |
| Audio I/O |
8x Input
1x Output |
| System Connection |
1x SATA
|
| Wi-Fi |
No
|
| Maximum User Access |
128
|
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, IP, IP Filter, IPv4, IPv6, NTP, ONVIF, P2P, PPPoE, RTSP, SMTP, TCP/IP, UDP, UPnP
|
| Network Bandwidth |
64 Mb/s
|
| Transmission Distance |
3937' / 1200 m
|
| Max Frame Rate |
30 fps
|
Compatibility
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+
|
| Supported Audio Codecs |
G.711, PCM
|
| Backup Method |
Network, USB Drive
|
System
| Installed Drive |
4 TB Hard Drive
|
| Max Capacity Supported |
10 TB (Total)
|
| OS Compatibility |
Linux
|
| Recording Intervals |
1 to 60 Minutes (Default)
1 to 30 Seconds (Pre-Record) 1 to 300 Seconds (Post-Record) |
| Recording Modes |
Alarm, Continuous, Manual, Motion, Schedule, Stop, Tampering, Video Loss
|
| Search Modes |
Alarm, Date/Time, Motion, Search
|
| Multi-Screen Configuration |
1, 4, 8, 9 (IP Extension Disabled)
1, 4, 8, 9, 16 (IP Extension Enabled) |
Notifications
| Alarm I/O |
8x Input
3x Output |
| Event Trigger |
Buzzer, Email, FTP, PTZ, Recording, Screen Tips, Snapshot, Tour, Video Push
|
| Number of Motion Detection Zones |
396 (22 x 18)
|
Electrical
| Power Consumption |
12 VDC at 2 A (7 W)
|
Physical
| Certifications |
EN, IEC, FCC
|
| Operating Conditions |
14 to 131°F / -10 to 55°C at 0 to 90% Humidity
|
| Storage Conditions |
-4 to 158°F / -20 to 70°C at 0 to 90% Humidity
|
| Built-In Display |
No
|
| Rack Form Factor |
1 RU
|
| Dimensions (W x D x H) |
12.8 x 10.1 x 2.2" / 325.0 x 257.0 x 55.0 mm
|
| Weight |
2.7 lb / 1.2 kg
|
