Description

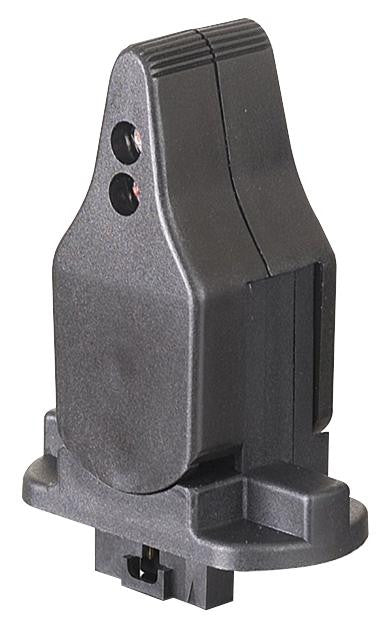

The JC120-0002 is a single-axis fingertip Joystick Controller, operate in extreme environments. Standing only 54mm or 64mm high, the JC120 is less susceptible to unintentional operation. With all of the components contained within the paddle, it is ideal for mounting in low-profile panels and arm rests. Installation time has been reduced through the use of a standard 7-pin Molex electronic connector and the joystick has been designed for maintenance-free operation throughout on operating life of greater than five million operations. An optional neoprene boot is available for the short-handle version, allowing operation in environments where aggressive materials are present, protecting from dust and dirt ingress.
- Low-profile ergonomic design
- Sealed to IP67 with optional neoprene boot for aggressive particle protection
- Standard Molex automotive connector
- 10kR Minimum load resistance
- 2mA Maximum load current (resistive)
- 150R Typical contact resistance
Applications
Agriculture, Automation & Process Control
Product details
| Supply Voltage Max | 35V |
| Handle Style | Lever |
| Contact Current AC Max | 2mA |
| Product Range | JC120 Series |
| No. of Axes | 1 |
| Rotation Electrical Angle | 30� |
| No. of Switch Positions | - |
| Track Resistance | 5kohm |
| Contact Voltage AC Max | - |
Other details
| Brand | PENNY & GILES |
| Part Number | JC120-0002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
