Description

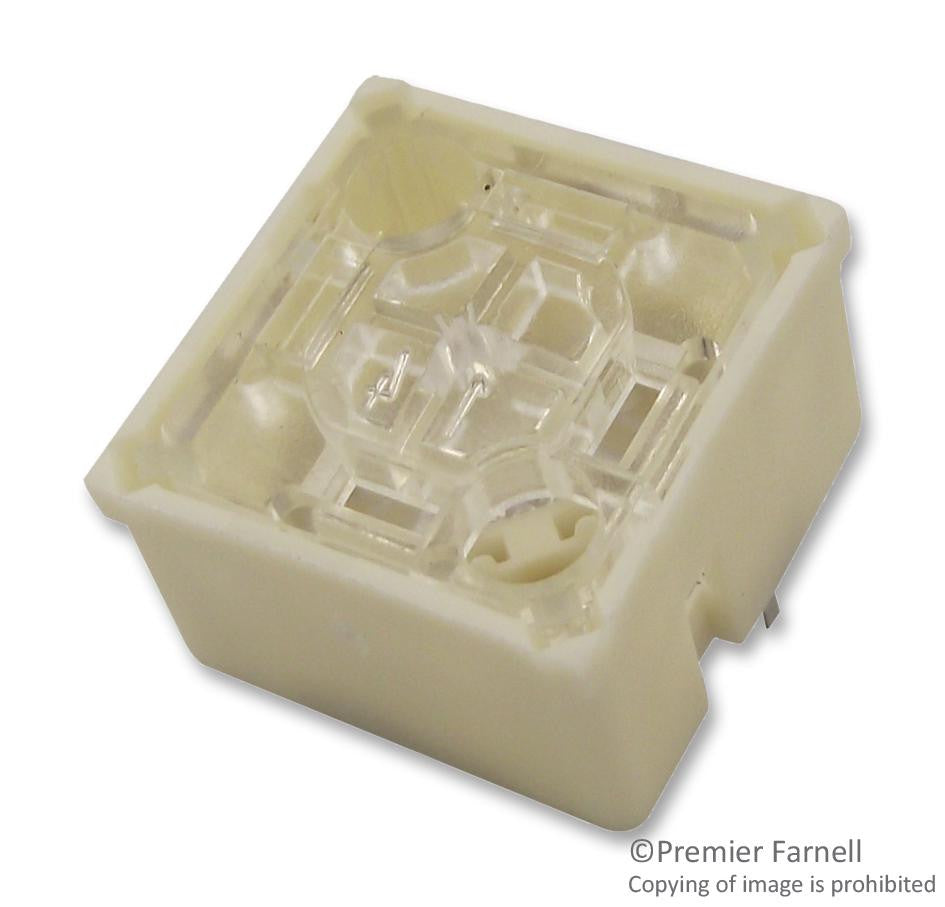

The 3.14.100.001/0000 is a non-illuminated Short-travel Keyswitch with gold-plated contact terminals, 1NO contact and transparent lens. The RF15 series keyswitch features soldering into PCB mounting and snap-action contact system. The low-profile keyboards with RF15 components should be designed with a 19.05mm grid. With this grid, frame webs remain free between the individual keys. The overlay can be glued onto these frame webs; we recommend area embossing over the keys for the overlays.
- 2W Maximum rated power
- 10?R Insulation resistance
- UL94HB Flammability rating
- -25 to +70°C Operating temperature range
Applications
Industrial
Product details
| Contact Voltage DC Nom | 35V |
| Illumination | Non Illuminated |
| Switch Terminals | Solder |
| Product Range | - |
| Contact Current Max | 100mA |
| Operating Force | 2.9N |
Other details
| Brand | RAFI |
| Part Number | 3.14.100.001/0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
