Description

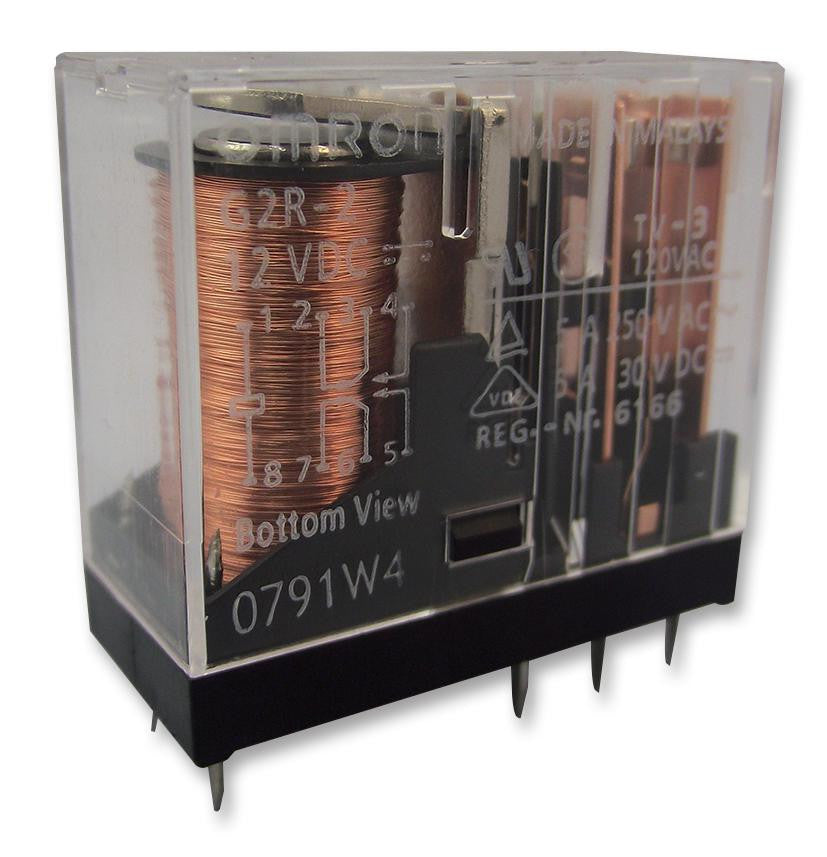

The Omron G2R series are through hole PCB power relays. These electromechanical power relays have safety oriented design with dielectric strength of 5000V between coil and contacts and surge resistance of 10000V. These relays are available in several types such as single pole, double pole, high capacity and high sensitivity type relays.
- Single side stable and double winding latching
- Available in flux protection and fully sealed enclosure types
- SPST-NO, SPDT, DPST-NO, DPDT contact configurations
- UL, CSA and VDE standards approved
- Single and bifurcated contacts available
- Available in 3A, 4A, 5A, 8A, 10A and 16A switching current based on models
- Selectable coil voltage of 5VDC, 6VDC, 12VDC, 24VDC, 48VDC, 100VDC, 100/(110)VAC and 200/(220)VAC
Applications
Industrial, Power Management, Automation & Process Control, Consumer Electronics
Product details
| Contact Material | Silver Alloy |
| Relay Mounting | Through Hole |
| Coil Type | Non Latching |
| Coil Resistance | 275ohm |
| Product Range | G2R Series |
| Relay Terminals | Solder |
| Contact Current | 5A |
| Approvals & Standards | CSA, IEC, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 12VDC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 30VDC |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G2R-2 12DC |
| Quantity | Each |
| Technical Data Sheet EN |  |
