Description

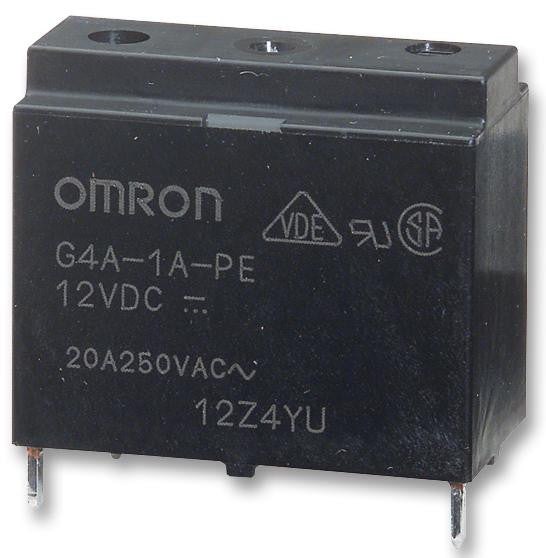

This is a General Purpose Relay, G4A Series, Power, Non Latching, SPST-NO, 12 VDC, 23 A product from OMRON ELECTRONIC COMPONENTS with the model number G4A-1A-PE 12DC
Product details
Contact Configuration | SPST-NO |
Coil Voltage | 12VDC |
Contact Current | 23A |
Product Range | G4A Series |
Relay Mounting | Through Hole |
Coil Type | Non Latching |
Contact Voltage VAC | 277VAC |
Relay Terminals | Solder |
Contact Voltage VDC | 30VDC |
Contact Material | Silver Alloy |
Coil Resistance | 160ohm |
Approvals & Standards | - |
Other details
Brand | OMRON ELECTRONIC COMPONENTS |
Part Number | G4A-1A-PE 12DC |
Quantity | Each |
Technical Data Sheet EN |
