Description

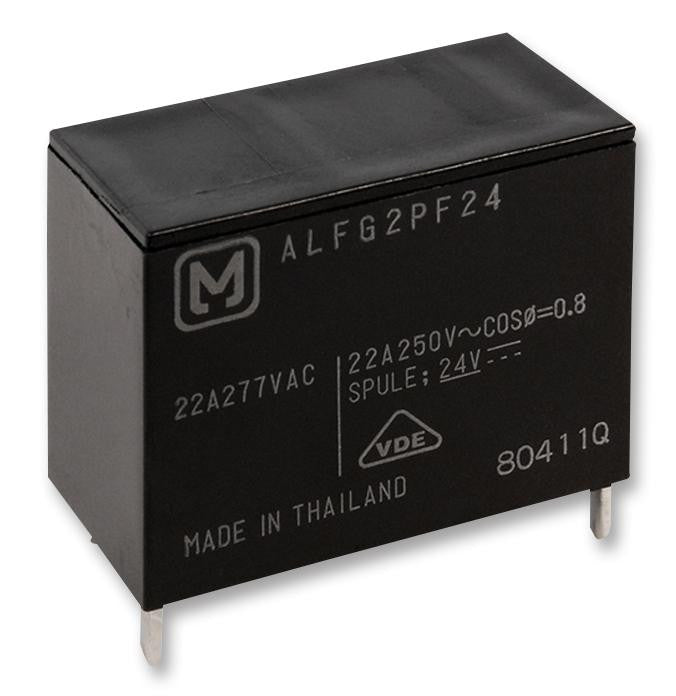

This is a General Purpose Relay, LF-G(ALFG) Series, Power, Non Latching, SPST-NO, 24 VDC product from PANASONIC ELECTRIC WORKS with the model number ALFG2PF24
Product details
Contact Material | Silver Tin Oxide |
Relay Mounting | Through Hole |
Coil Type | Non Latching |
Coil Resistance | 410ohm |
Product Range | LF-G(ALFG) Series |
Relay Terminals | Solder |
Contact Current | 31A |
Approvals & Standards | UL, VDE |
Contact Voltage VAC | 277VAC |
Coil Voltage | 24VDC |
Contact Configuration | SPST-NO |
Contact Voltage VDC | - |
Other details
Brand | PANASONIC ELECTRIC WORKS |
Part Number | ALFG2PF24 |
Quantity | Each |
Technical Data Sheet EN | |
Miscellaneous EN |
