| ₹ 833.39 includes GST and import duties. | |
| B2B customers can avail ₹ 127.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

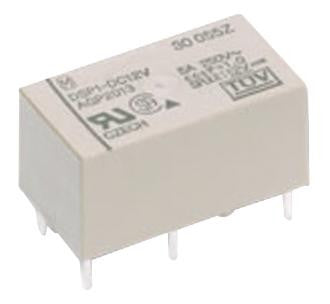

This is a General Purpose Relay, DSP Series, Power, Non Latching, SPST-NO, 5 VDC, 8 A product from PANASONIC ELECTRIC WORKS with the model number DSP1A-DC5V
Product details
| Contact Configuration | SPST-NO |
| Coil Voltage | 5VDC |
| Contact Current | 8A |
| Product Range | DSP Series |
| Relay Mounting | Through Hole |
| Coil Type | Non Latching |
| Contact Voltage VAC | 250VAC |
| Relay Terminals | Solder |
| Contact Voltage VDC | 30VDC |
| Contact Material | Silver Tin Oxide |
| Coil Resistance | 83ohm |
| Approvals & Standards | CSA, UL |
Other details
| Brand | PANASONIC ELECTRIC WORKS |
| Part Number | DSP1A-DC5V |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 816.72 |
| 3-5 | ₹ 808.39 |
| 5-10 | ₹ 791.72 |
| 10+ | ₹ 775.05 |
Bulk discount will be automatically applied during checkout based on quantity.
