Description

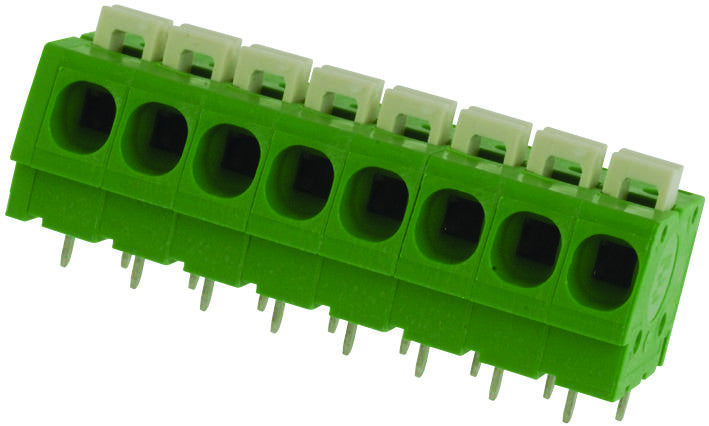

This is a TERMINAL BLOCK, SPRING, 8 POSITION, 30-12AWG product from TE CONNECTIVITY with the model number 1986712-8
Product details
| Block Orientation | Through Hole Right Angle |
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Push In |
| Rated Current | 16A |
| No. of Positions | 8Ways |
| Conductor Area CSA | 3mm² |
| Product Range | - |
| Pitch Spacing | 5.08mm |
| Wire Size AWG Min | 30AWG |
| Rated Voltage | 300V |
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 1986712-8 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
